Home >> Mercury >> 2003 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection >> Pinpoint Tests >> Test E

Test E

PINPOINT TEST E: THE INDIVIDUAL DEMAND LIGHTING IS INOPERATIVE

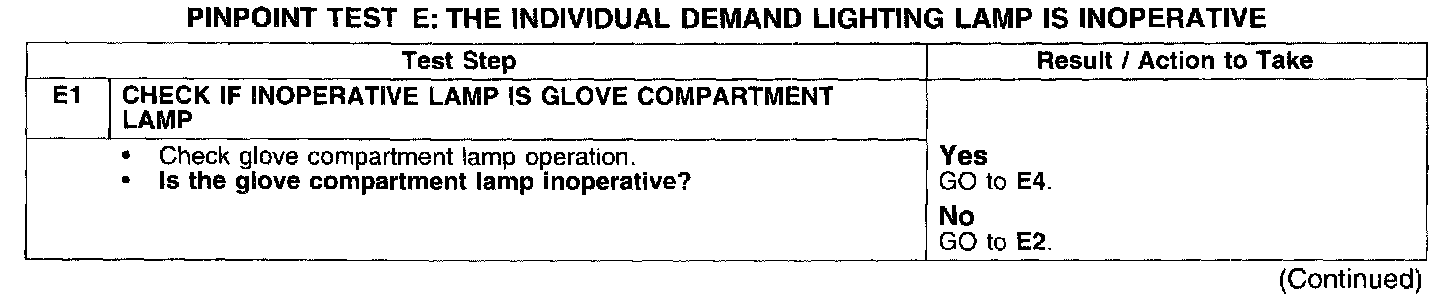

Test E1:

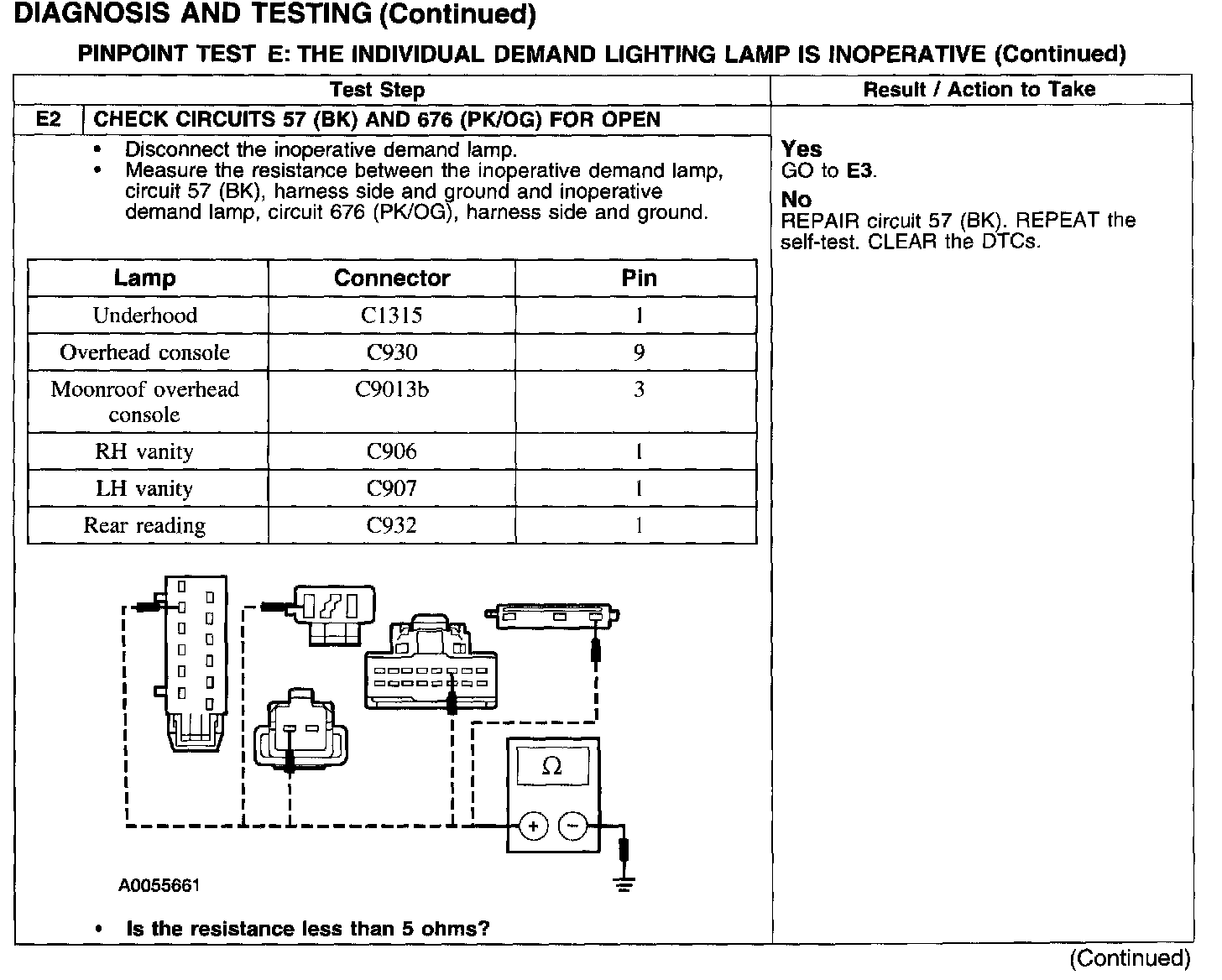

Test E2:

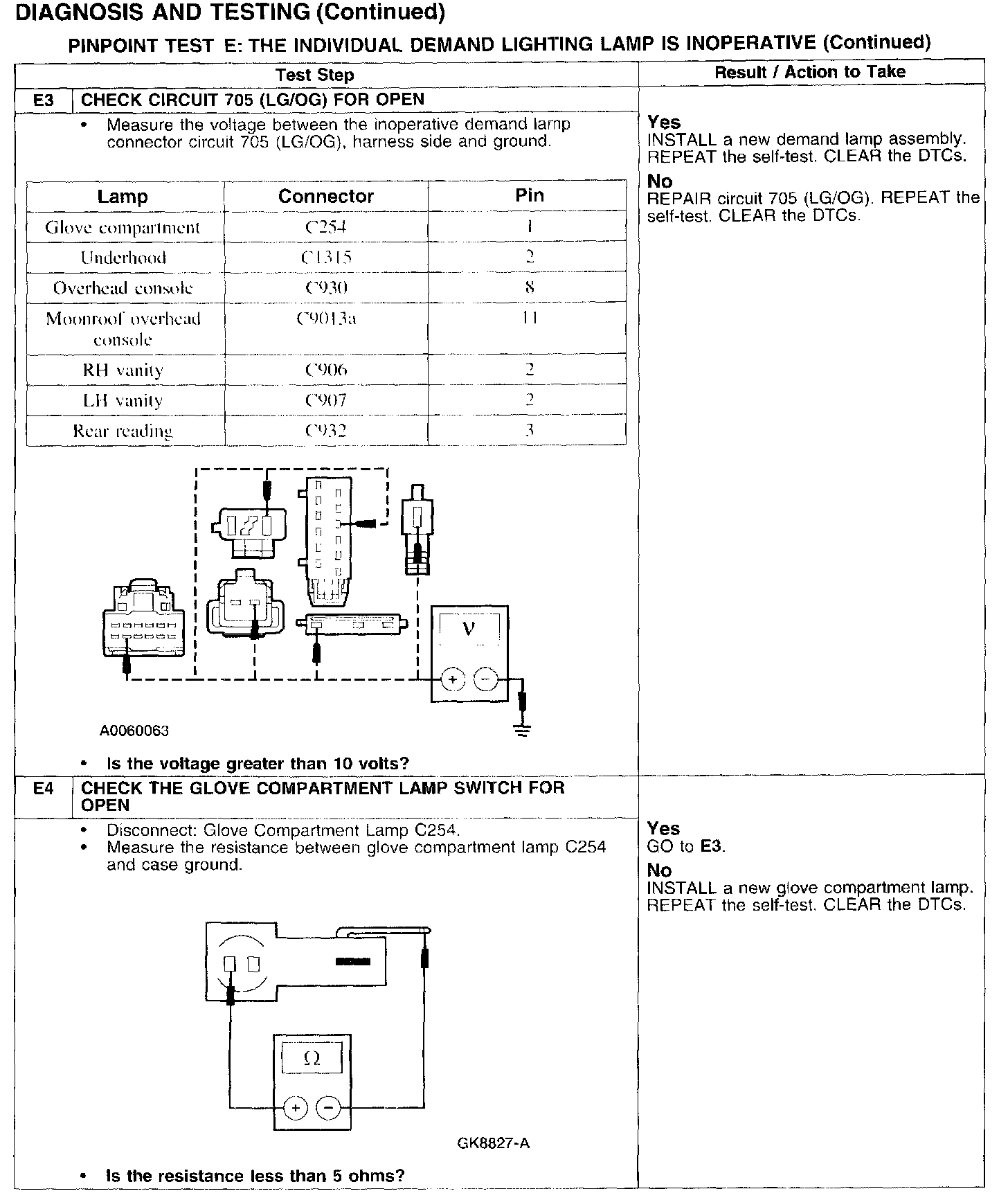

Test E3-E4:
