Home >> Mercury >> 2003 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Brake Lamp >> Testing and Inspection >> Pinpoint Tests >> Test H

Test H

PINPOINT TEST H: ONE OR MORE STOPLAMPS ARE INOPERATIVE

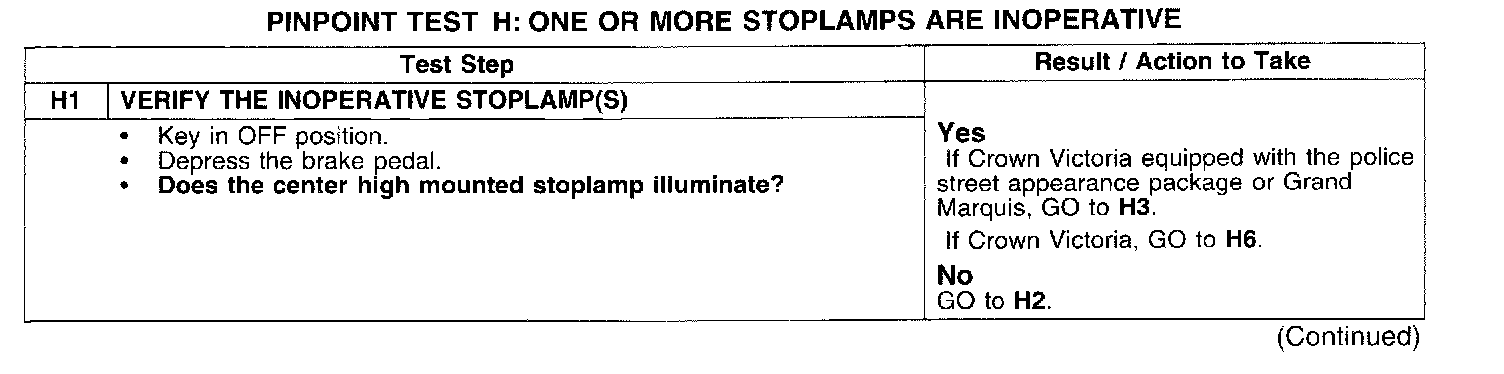

Test H1:

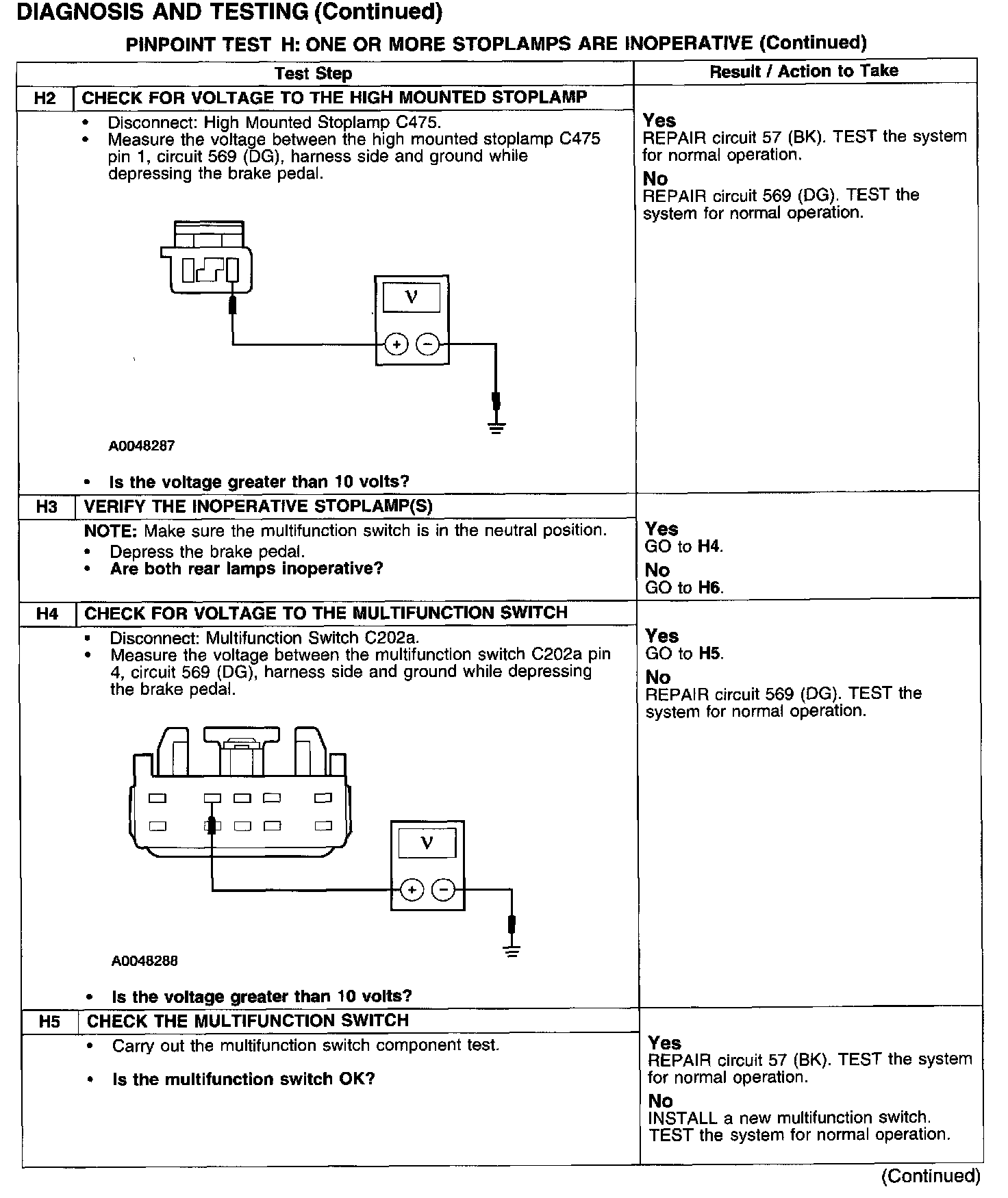

Test H2-H5:

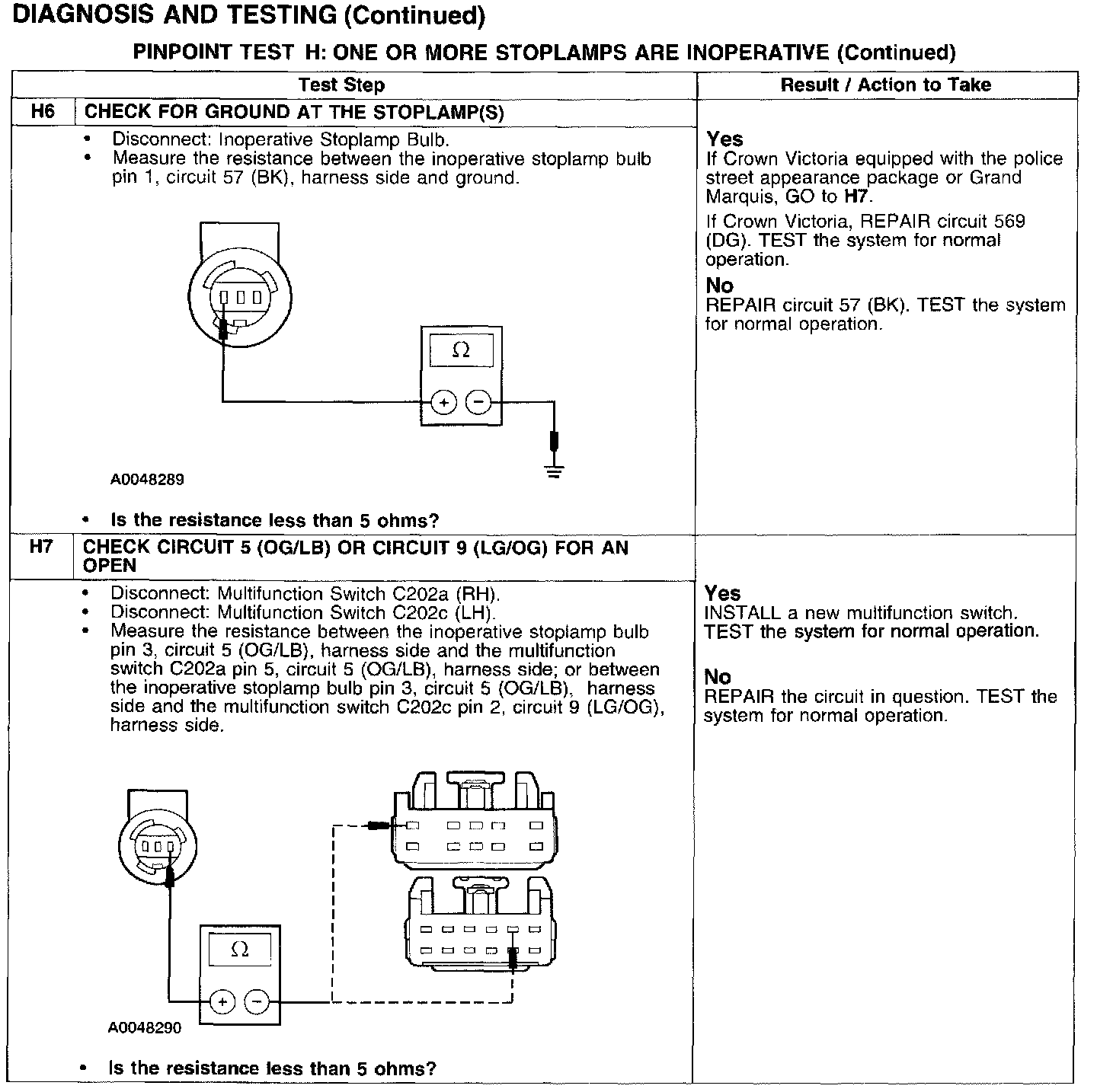

Test H6-H7:
