Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Panel Illumination
>>
Test G
Test G
PINPOINT TEST G: THE MESSAGE CENTER ILLUMINATION SOURCE IS INOPERATIVE - WITH MOONROOF

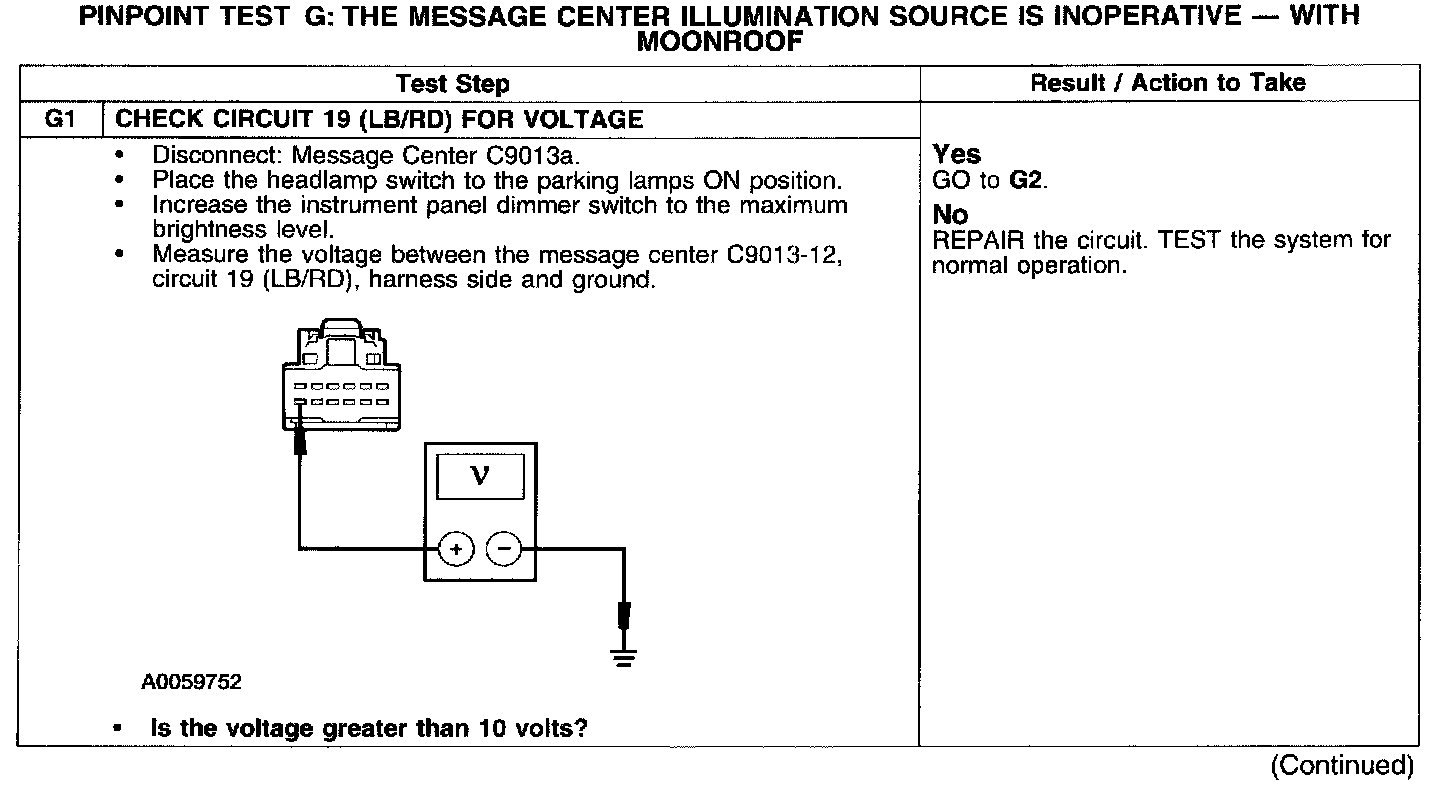

Test G1:

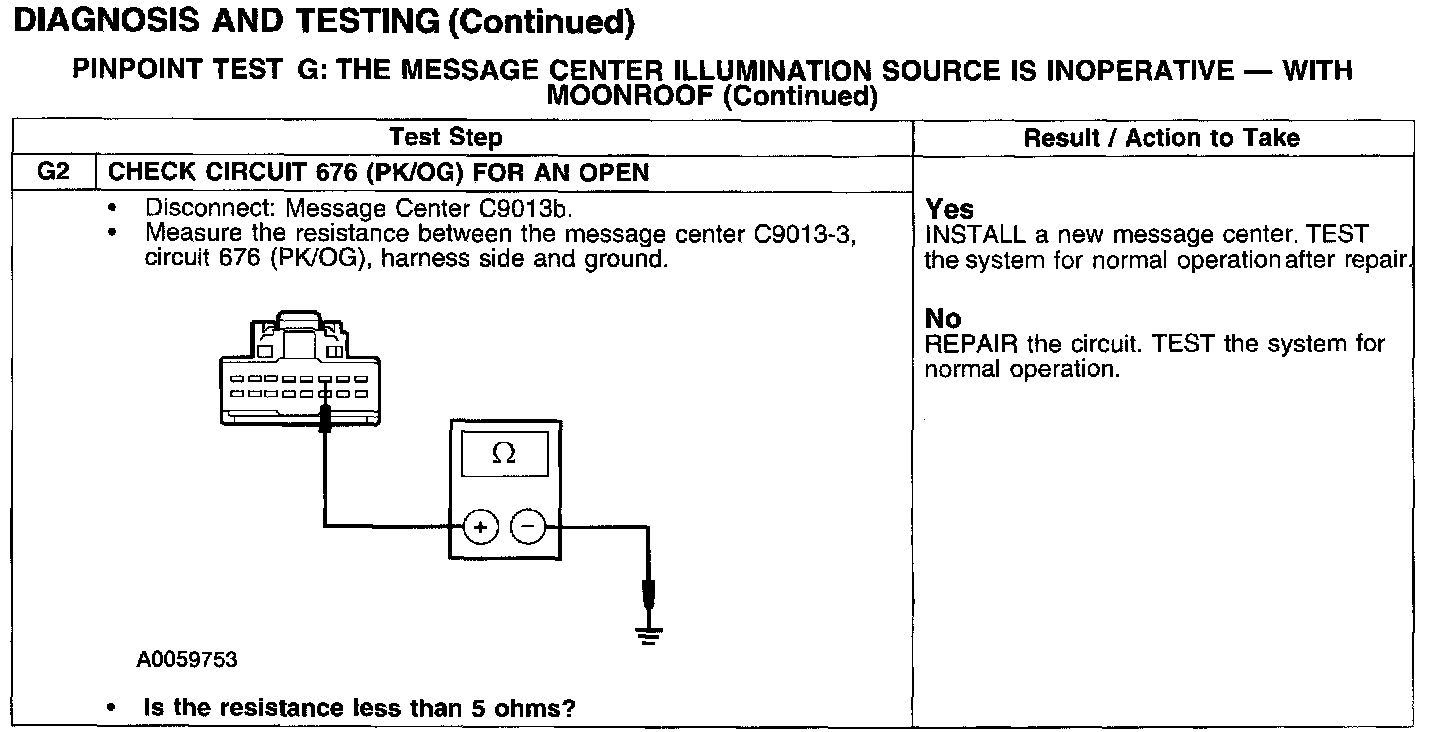

Test G2:
