Home >> Mercury >> 2003 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Panel Illumination >> Test C

Test C

PINPOINT TEST C: THE CLIMATE CONTROL ILLUMINATION IS INOPERATIVE

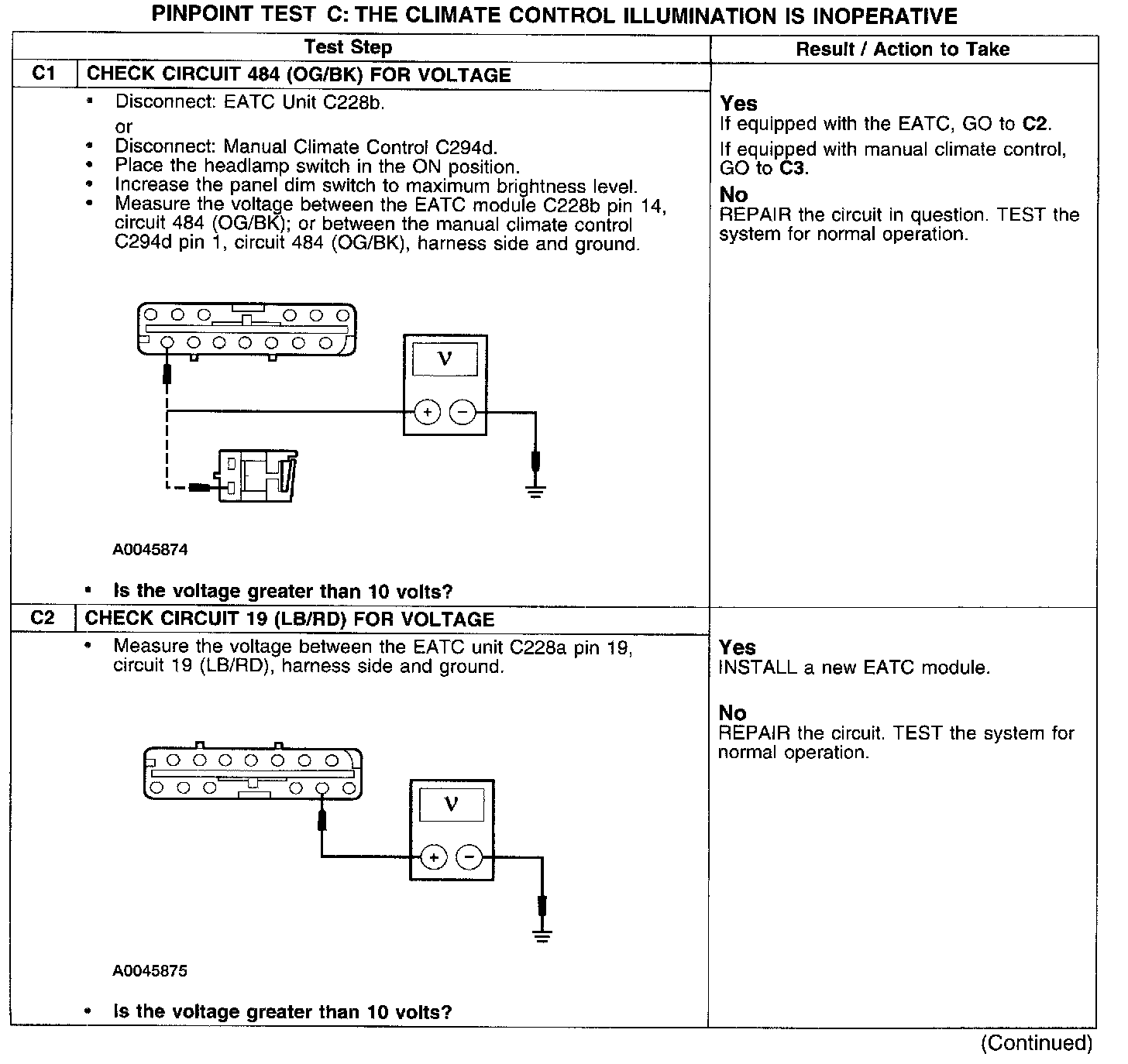

Test C1-C2:

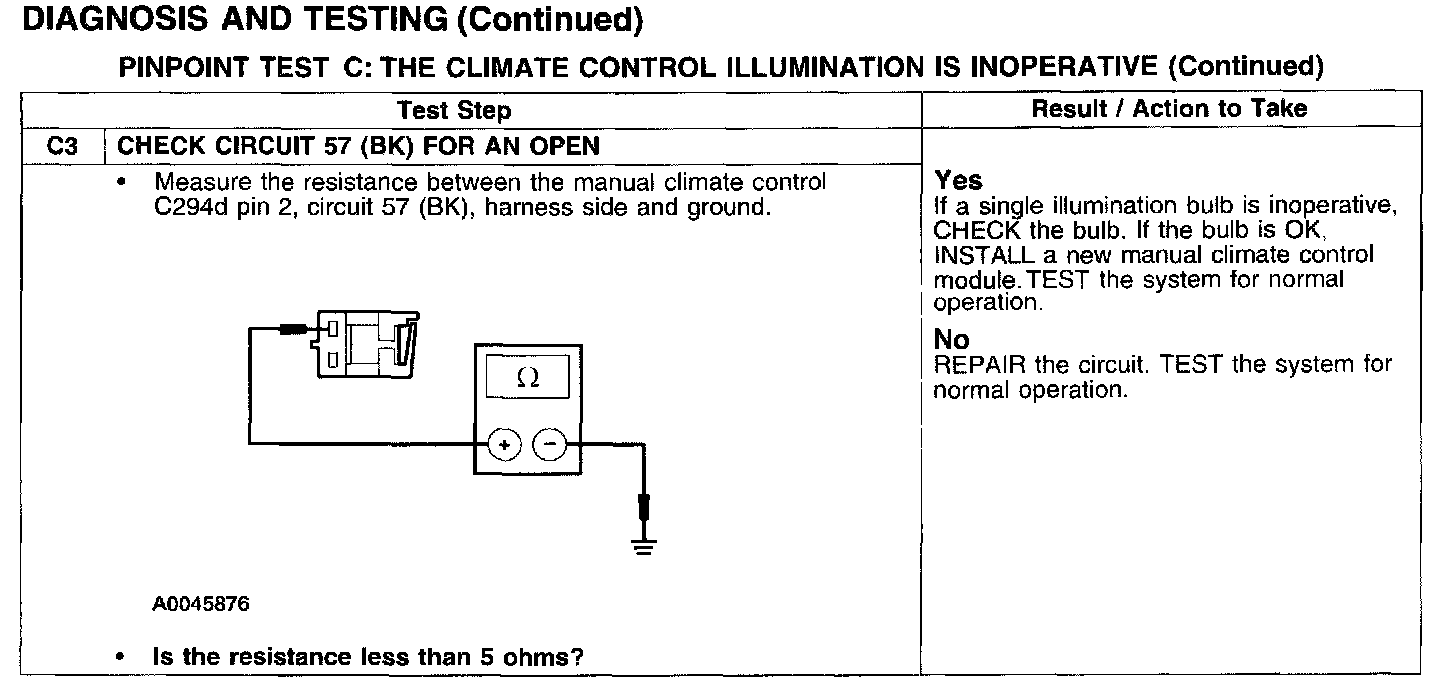

Test C3:
