Test B

PINPOINT TEST B: THE INSTRUMENT CLUSTER ILLUMINATION IS INOPERATIVE

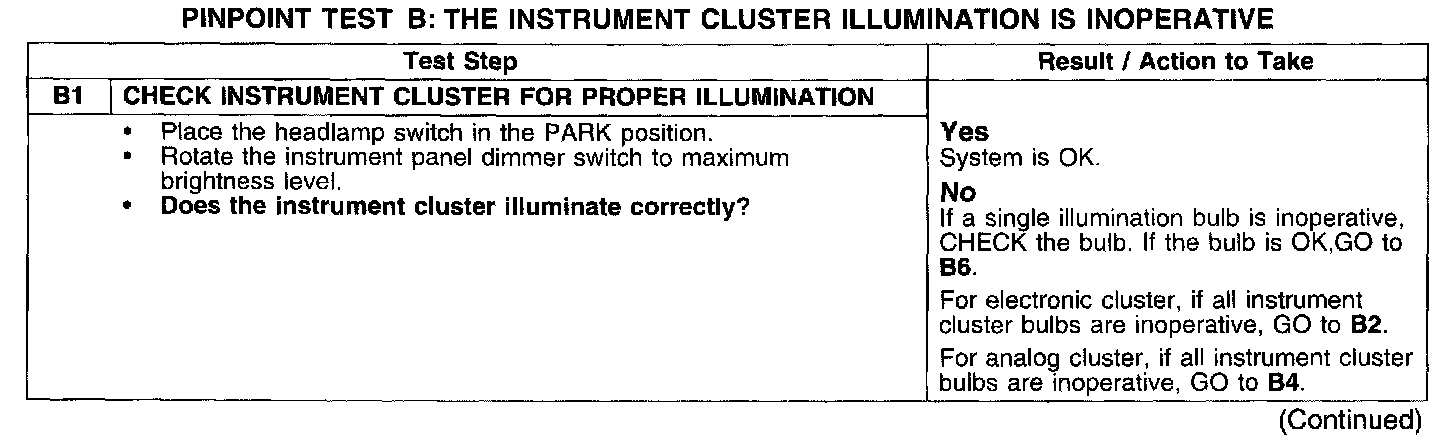

Test B1:

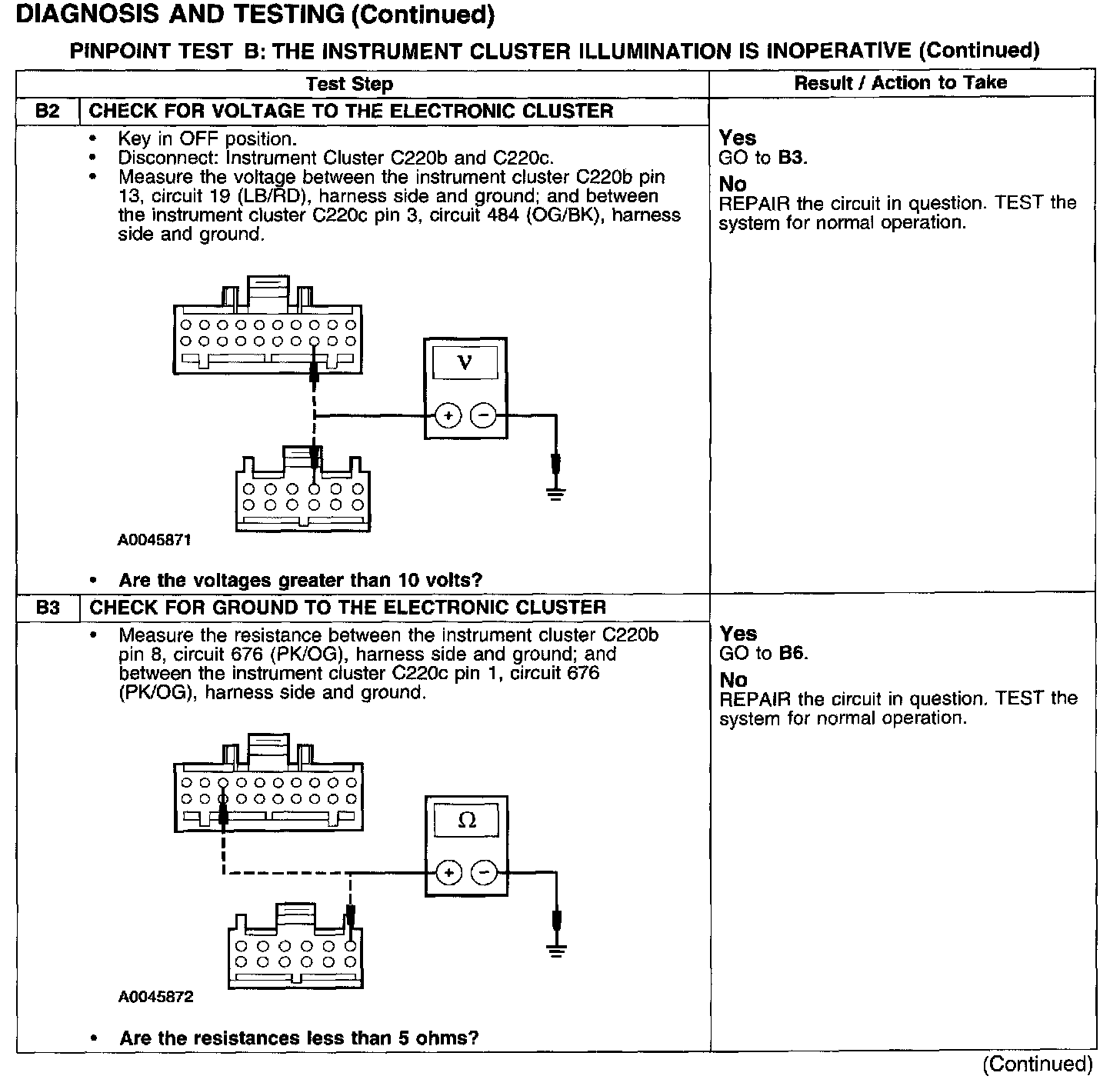

Test B2-B3:

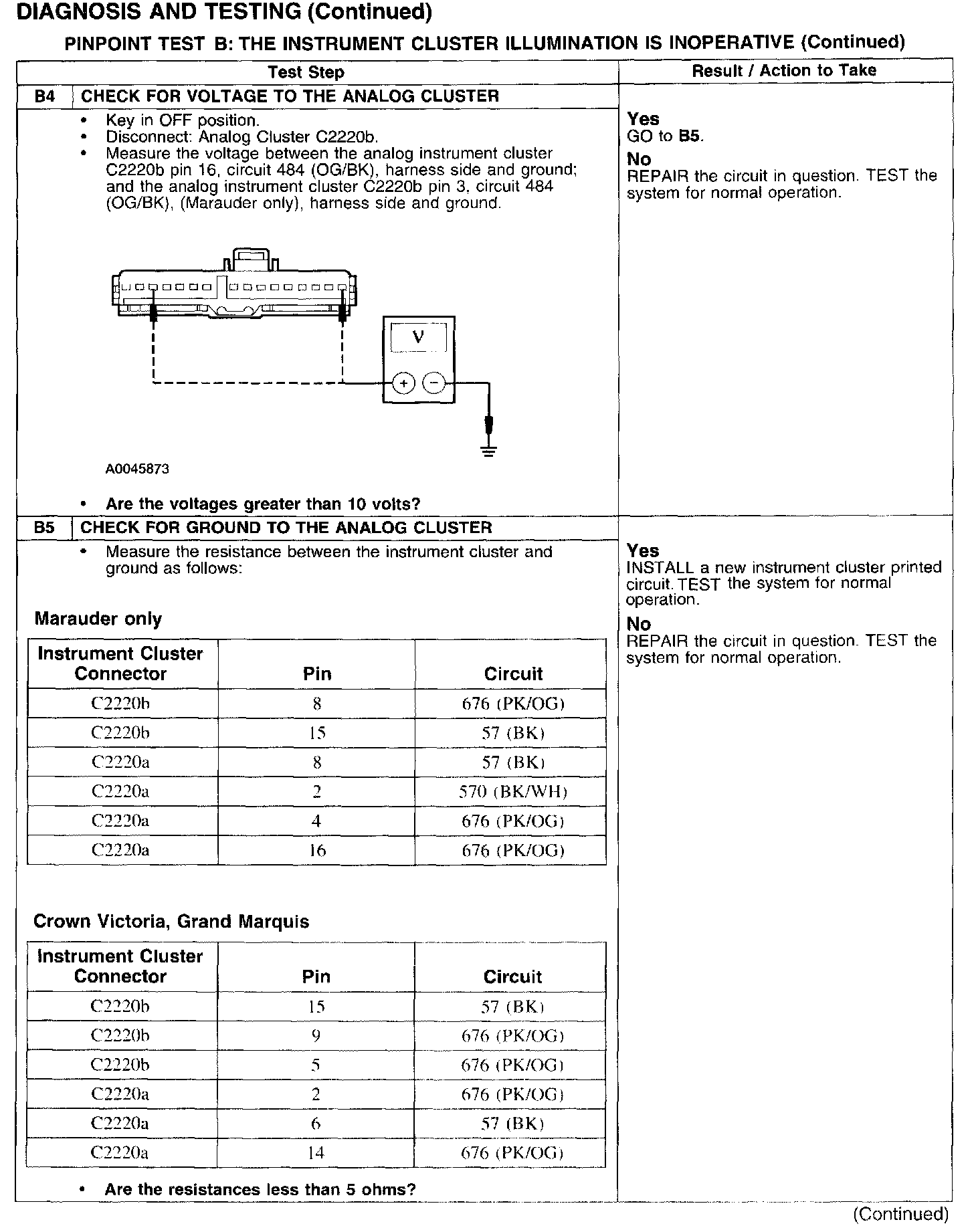

Test B4-B5:

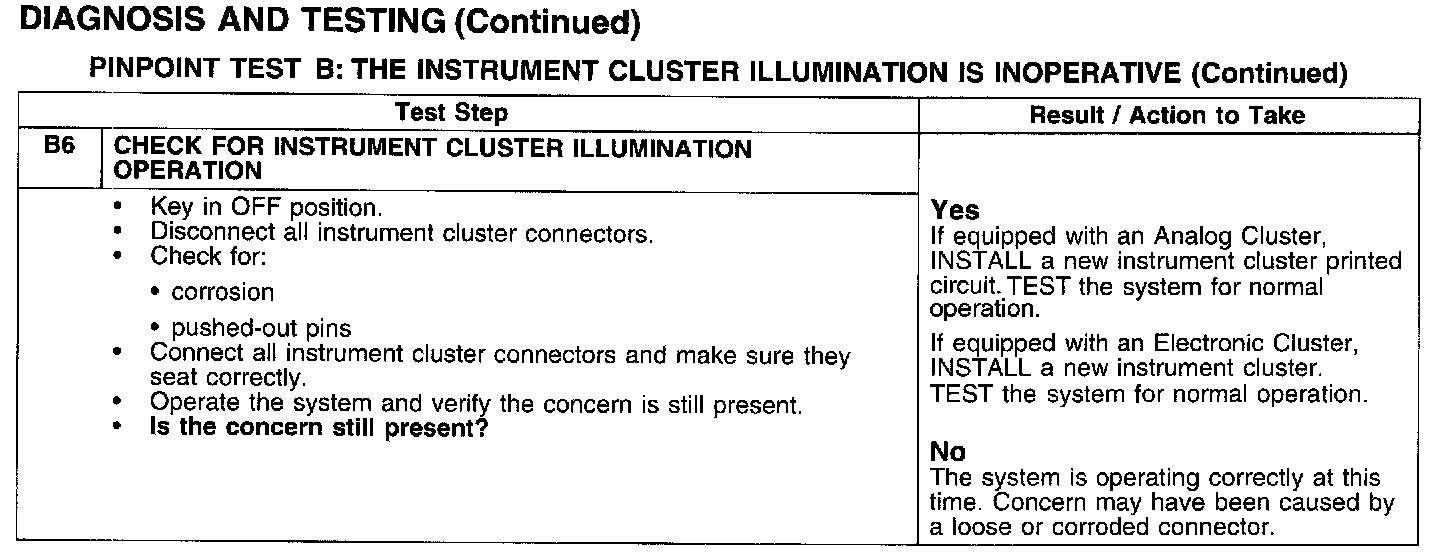

Test B6:
