Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Electronic Cluster
>>
Test X
Test X
PINPOINT TEST X: THE INSTRUMENT CLUSTER IS INOPERATIVE

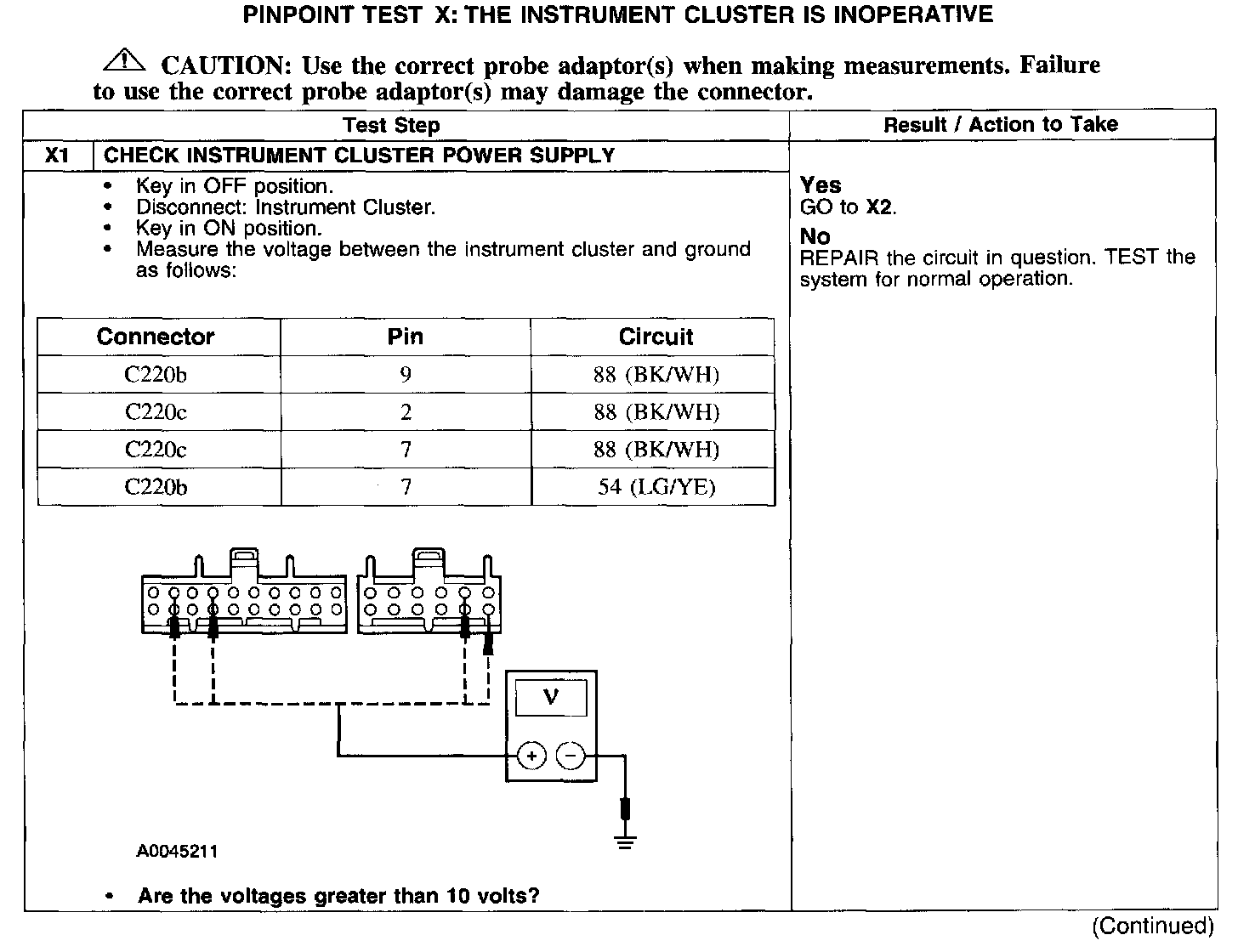

Test X1:

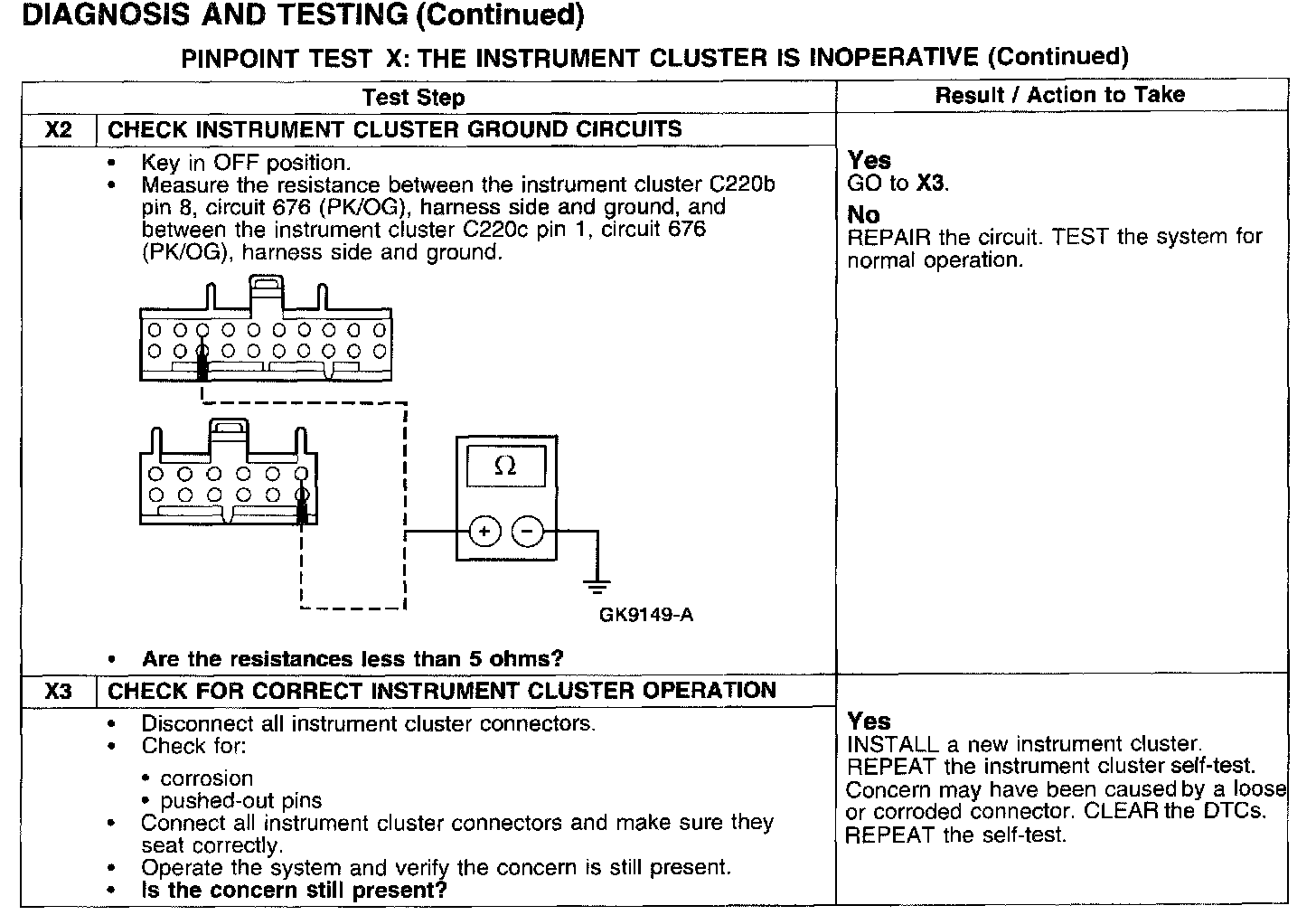

Test X2-X3:
