Home >> Mercury >> 2003 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Electronic Cluster >> Test U

Test U

PINPOINT TEST U: THE LOW WASHER FLUID INDICATOR IS NEVER ON

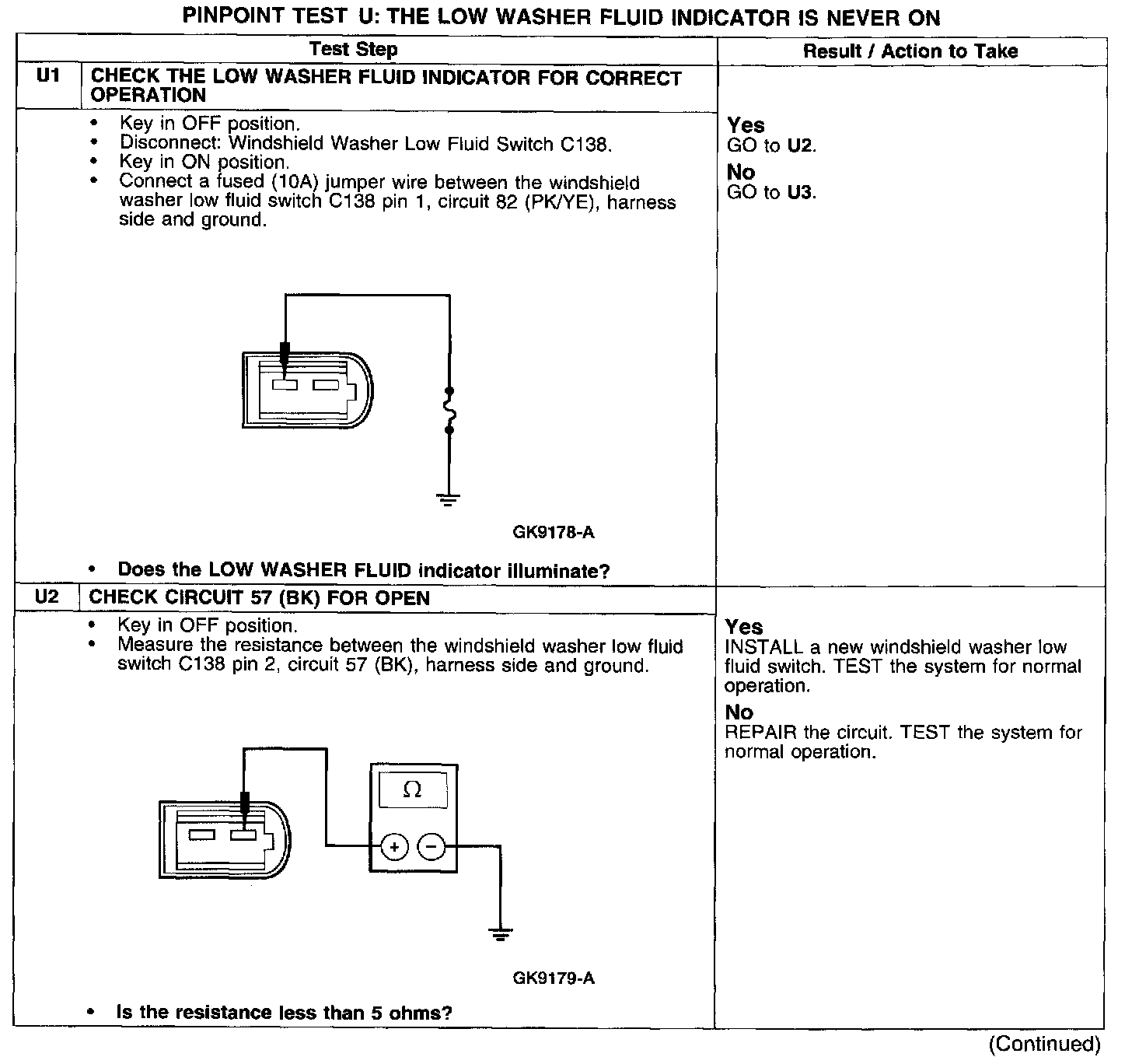

Test U1-U2:

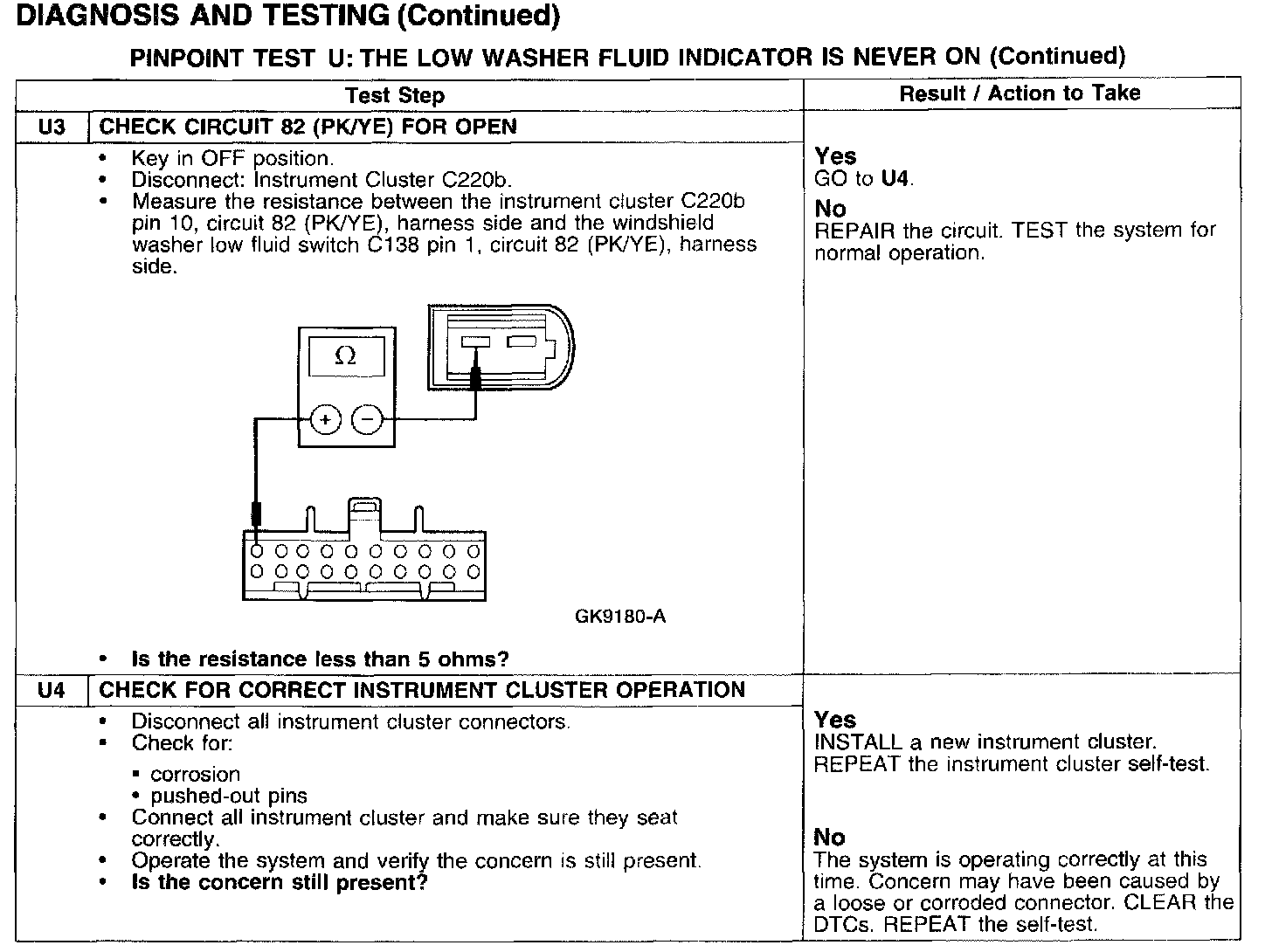

Test U3-U4:
