Home >> Mercury >> 2003 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Conventional Cluster - Instrument Cluster >> Test T

Test T

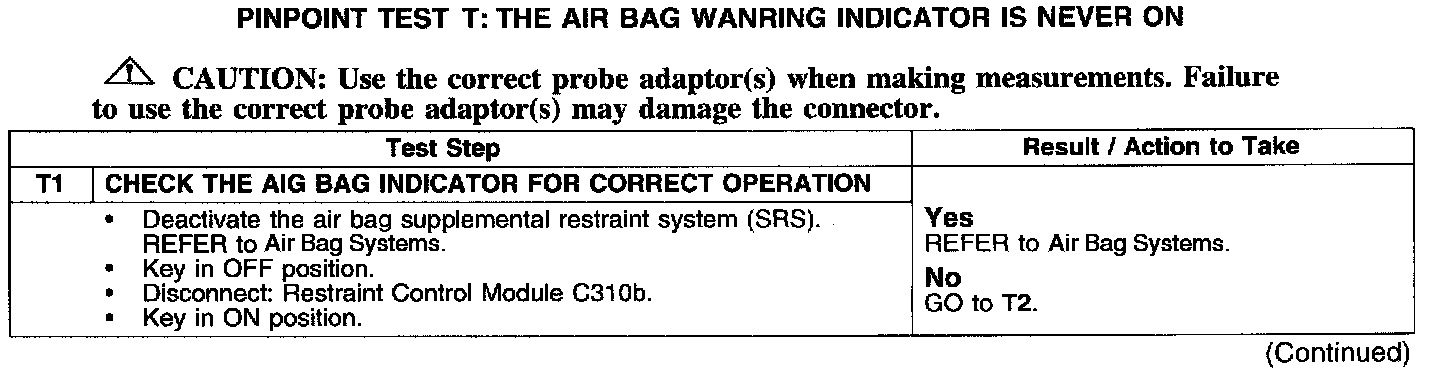

PINPOINT TEST T: THE AIR BAG WARNING INDICATOR IS NEVER ON


Test T1:

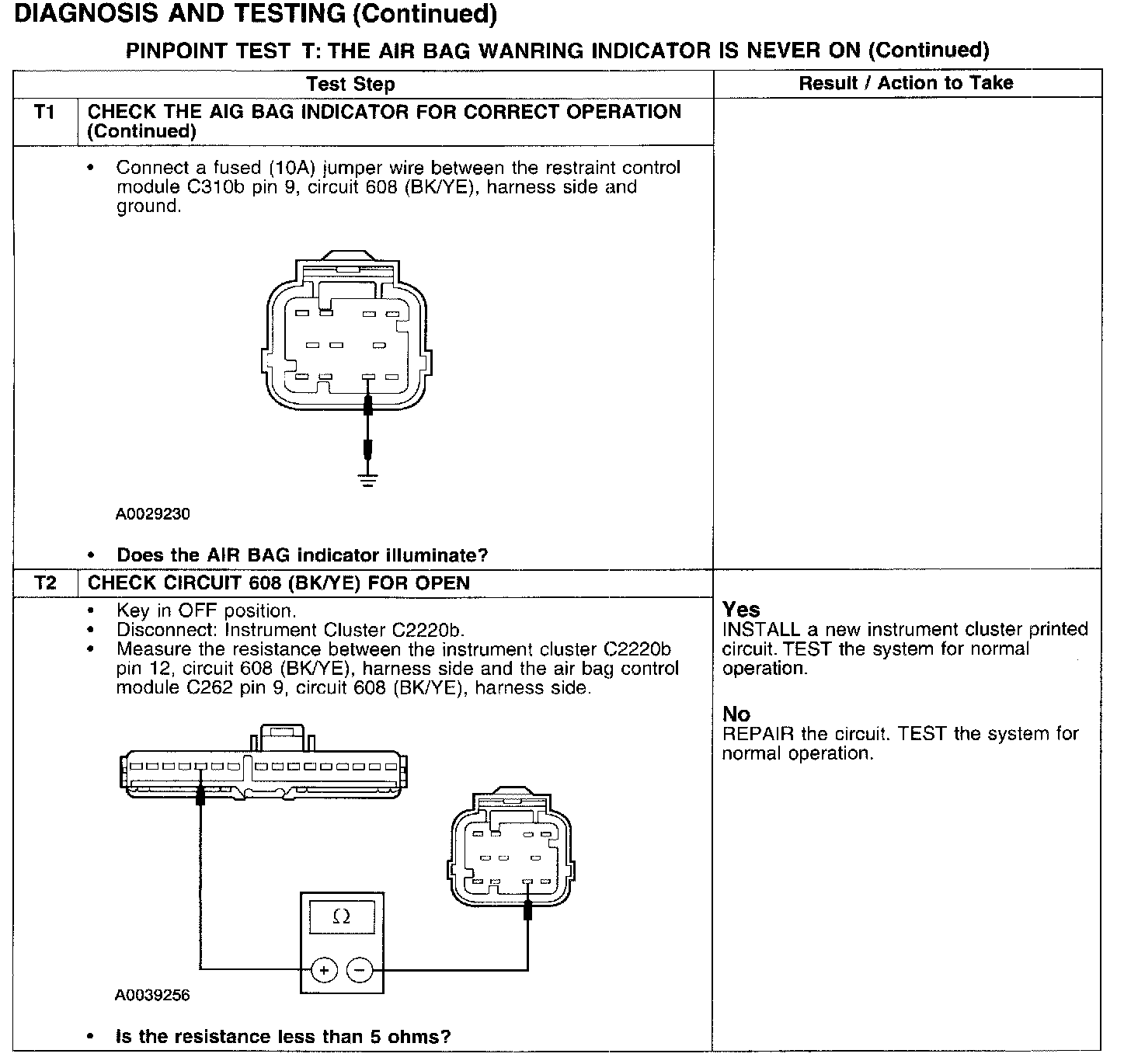

Test T1-T2:
