Pinpoint Tests - Conventional Cluster - Instrument Cluster
>>
Test I
Test I
PINPOINT TEST I: THE CHECK ENGINE INDICATOR IS NEVER ON

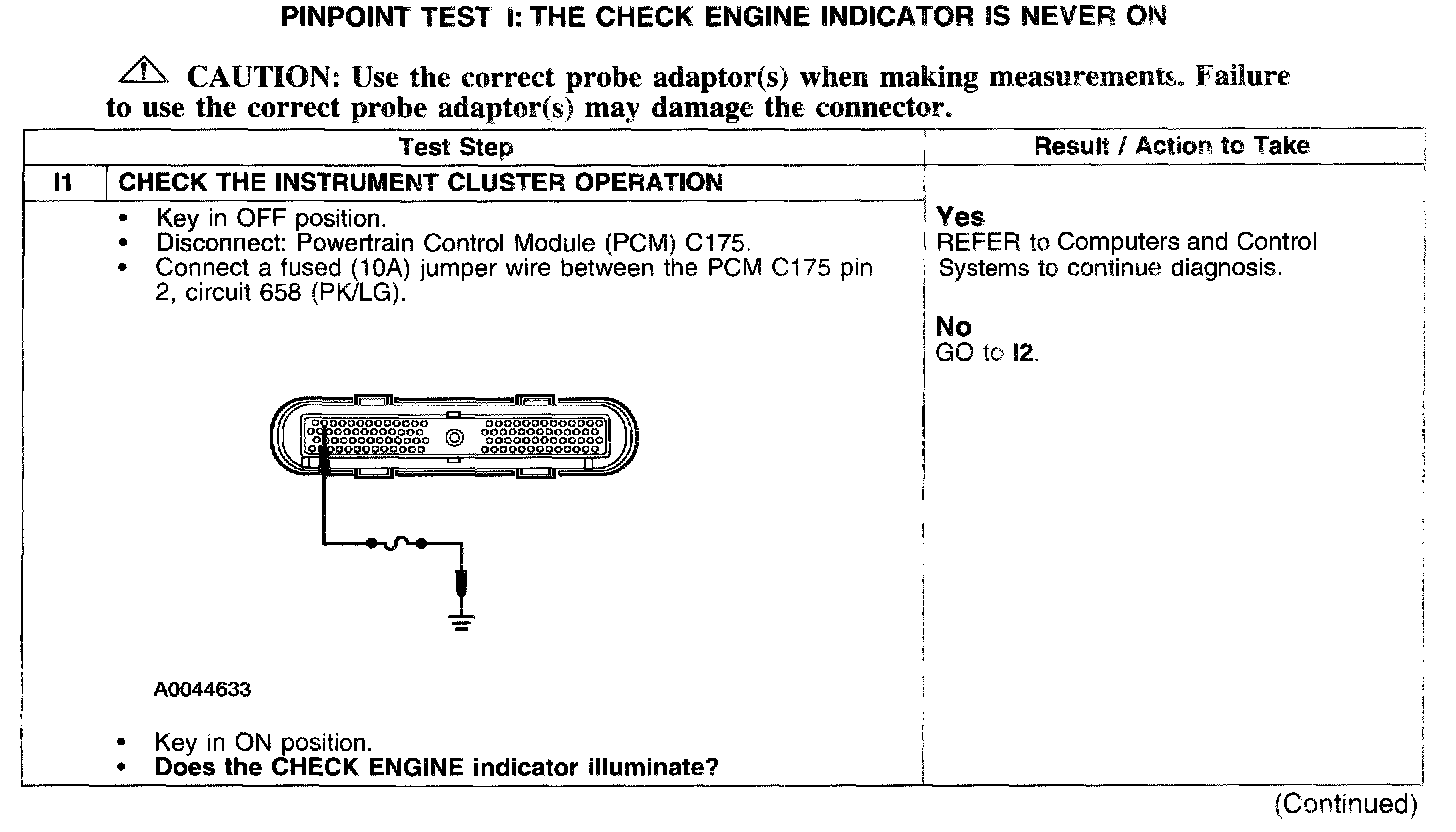

Test I1:

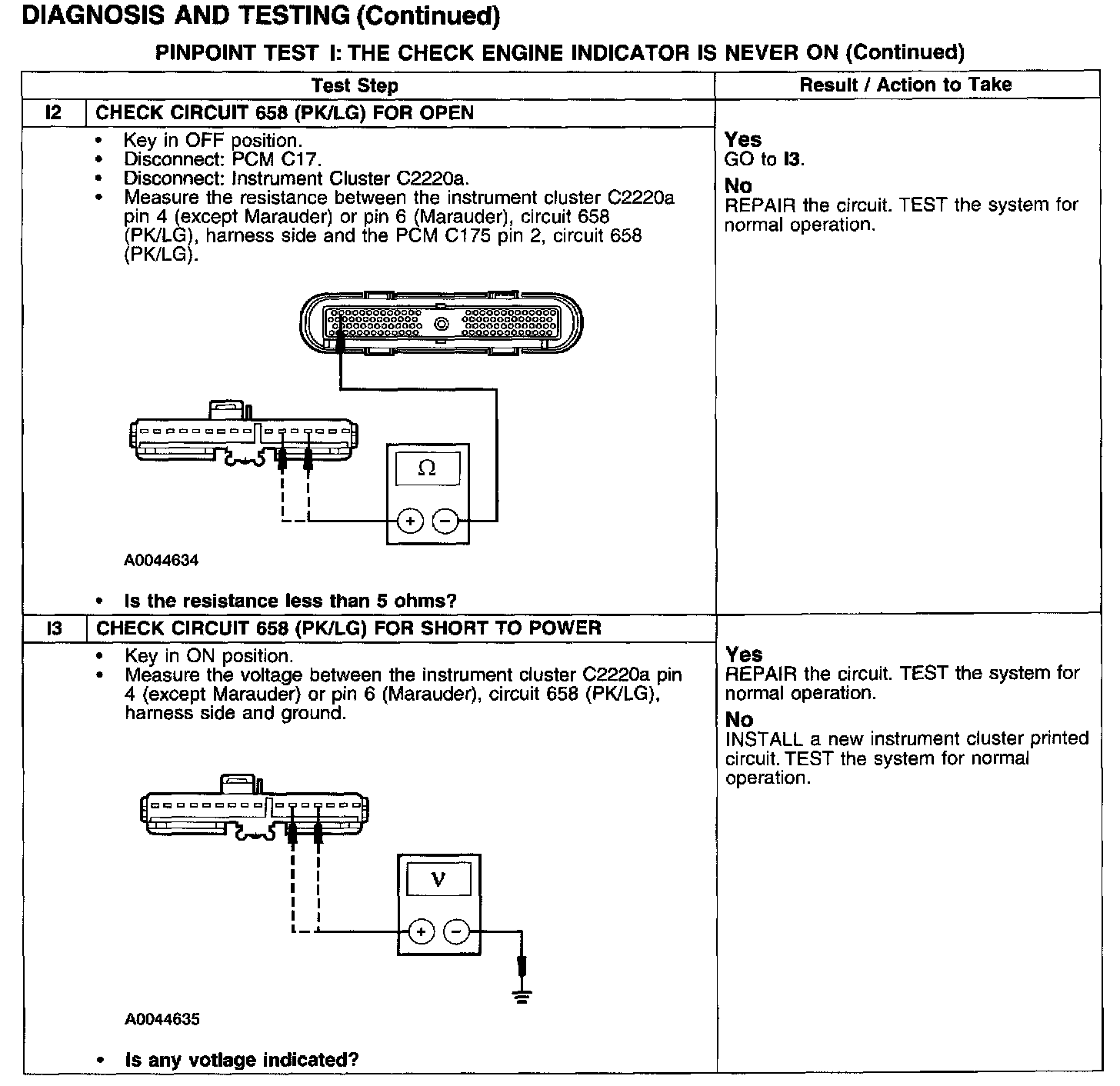

Test I2-I3:
