Home >> Mercury >> 2003 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Conventional Cluster - Instrument Cluster >> Test G

Test G

PINPOINT TEST G: THE CHARGE SYSTEM WARNING INDICATOR IS NEVER ON

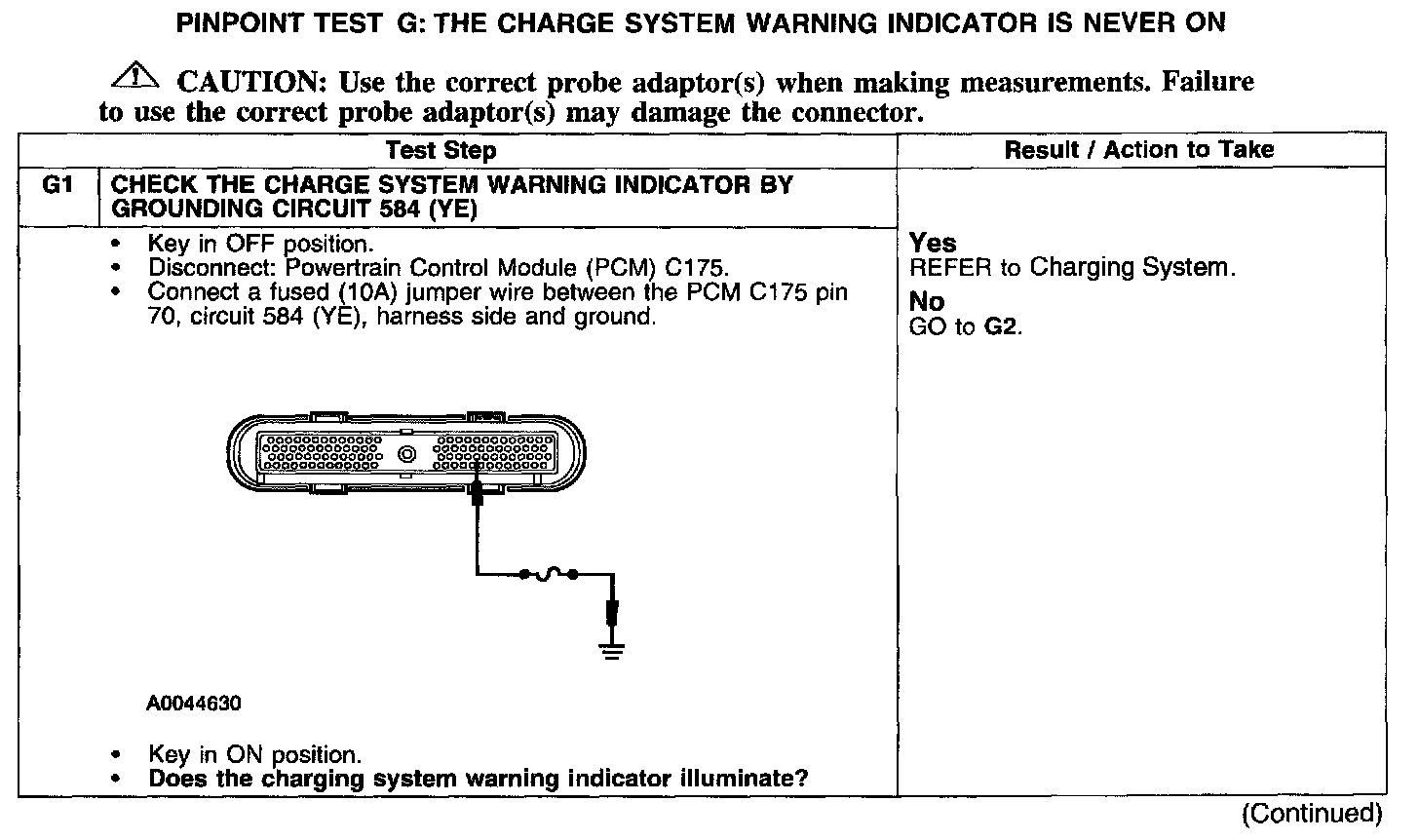

Test G1:

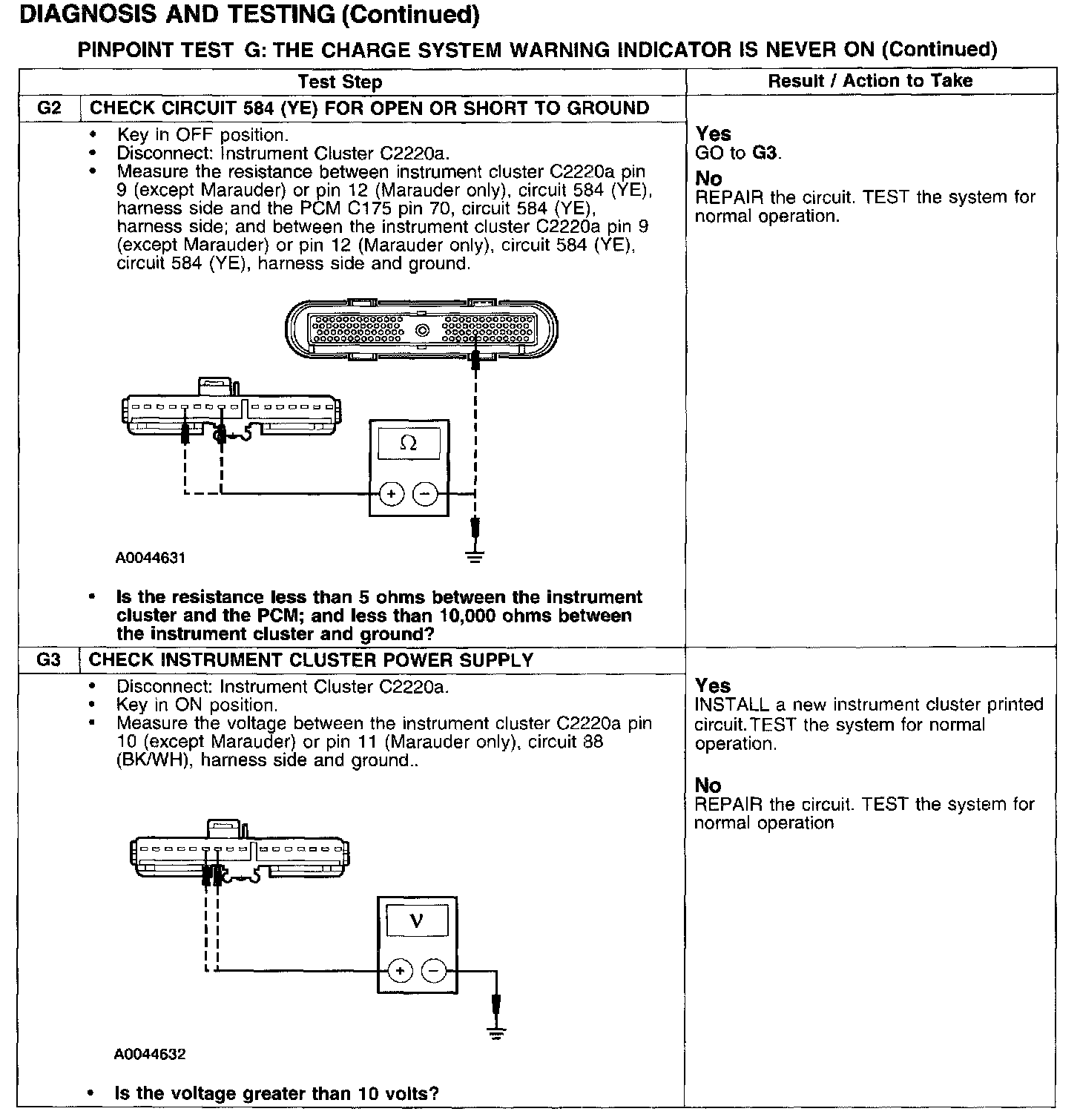

Test G2-G3:
