Overhaul

NOTE: Gauge views are for the Crown Victoria and Grand Marquis. The Marauder views are similar.

DISASSEMBLY
1. Remove the instrument cluster.

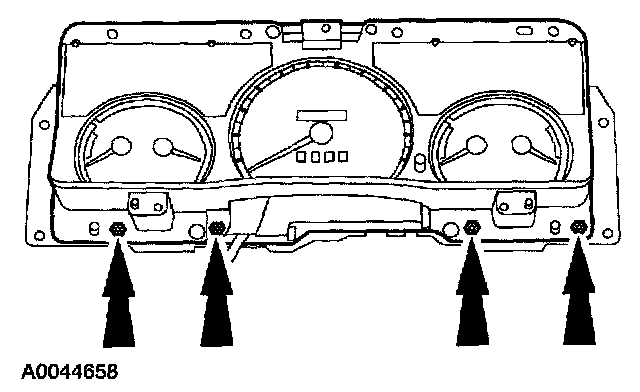

2. Remove the screws and remove the instrument cluster lens.







3. Remove the screws and remove the instrument cluster mask.

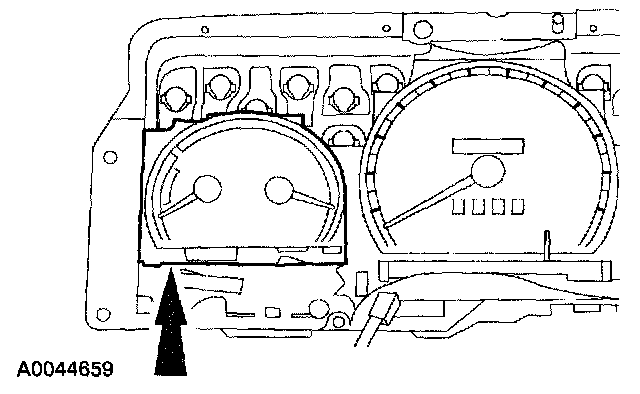

4. Remove the LH gauge assembly (fuel/volt on the Crown Victoria and Grand Marquis or fuel/oil pressure on the Marauder) by lifting straight out from the instrument cluster housing.

CAUTION: Handle gauges and components with care to avoid possible damage.

NOTE: Make no attempt to adjust the needle.

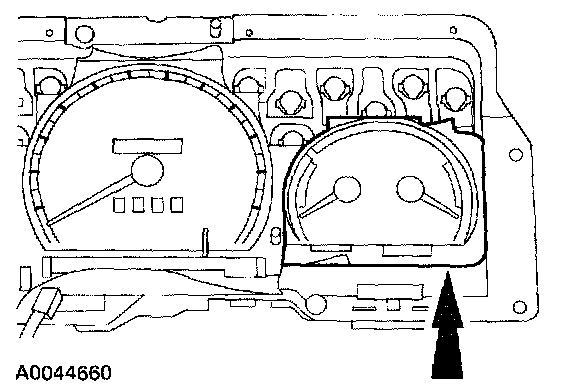

5. Remove the RH gauge assembly (engine coolant temperature/oil pressure on the Crown Victoria and Grand Marquis or tachometer on the Marauder) by lifting straight out from the instrument cluster housing.

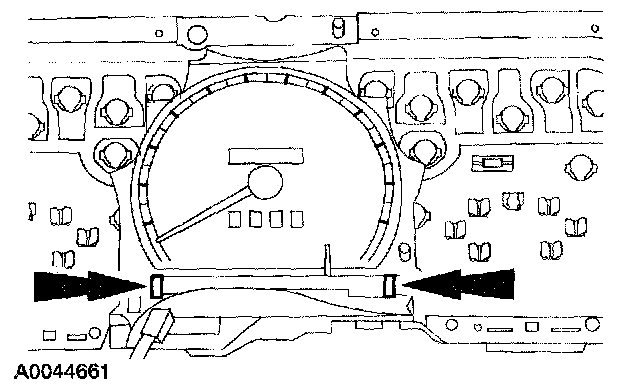

6. Push inward on the locking tabs and remove the transmission range indicator.

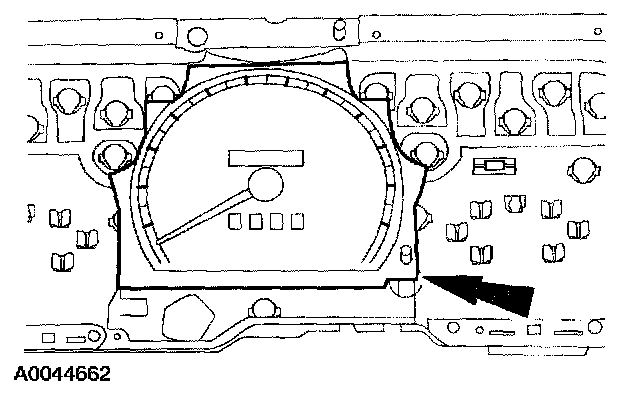

7. Remove the speedometer by lifting straight out from the instrument cluster housing.
8. Remove all the miniature bulbs.

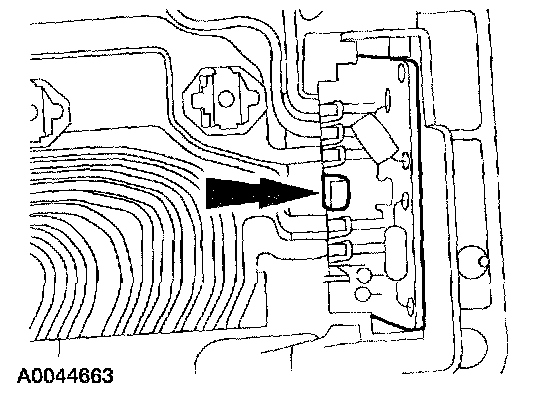

9. Release the locking tab and remove the fuel indicator module.

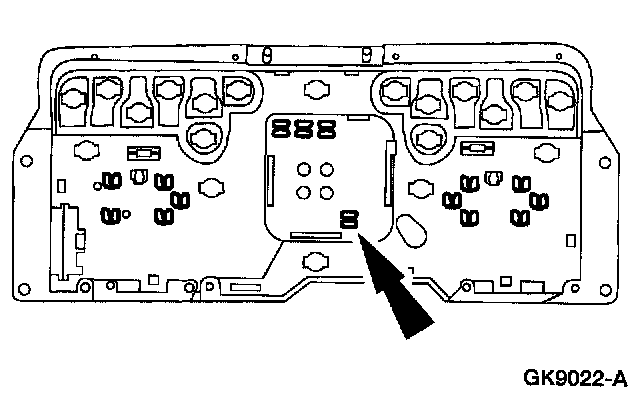

10. Remove all the gauge contact clips from the rear of the instrument cluster by compressing the clip ends together and pushing the clips through the back of the instrument cluster back plate. Discard the old clips.

CAUTION: When removing the gauge contact clips, be careful not to damage the instrument cluster printed circuit.

11. Carefully remove the instrument cluster printed circuit.

ASSEMBLY
1. To assemble, reverse the disassembly procedure.

NOTE: New gauge contact clips must be used for assembly.
