Home >> Mercury >> 2003 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Instrument Panel Bulb >> Service and Repair >> Warning Indicator Bulb

Warning Indicator Bulb

REMOVAL
1. Remove the instrument cluster.







2. Turn the indicator or warning bulb one quarter turn counter clockwise and remove the bulb.

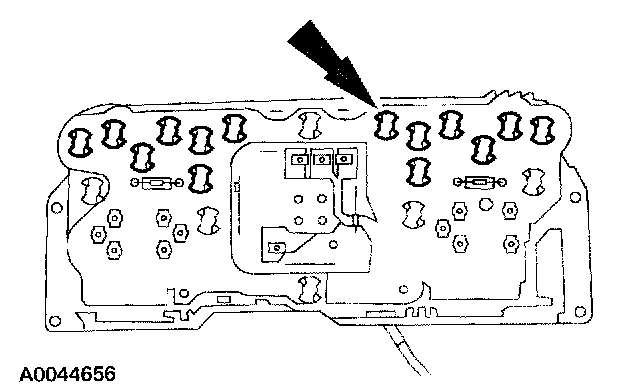

NOTE: The Crown Victoria and Grand Marquis cluster is shown. The Marauder is similar.

INSTALLATION
1. To install, reverse the removal procedure.
