Home >> Mercury >> 2003 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Compass >> Testing and Inspection >> Pinpoint Tests >> Test A

Test A

PINPOINT TEST A: COMPASS IS INACCURATE/INOPERATIVE

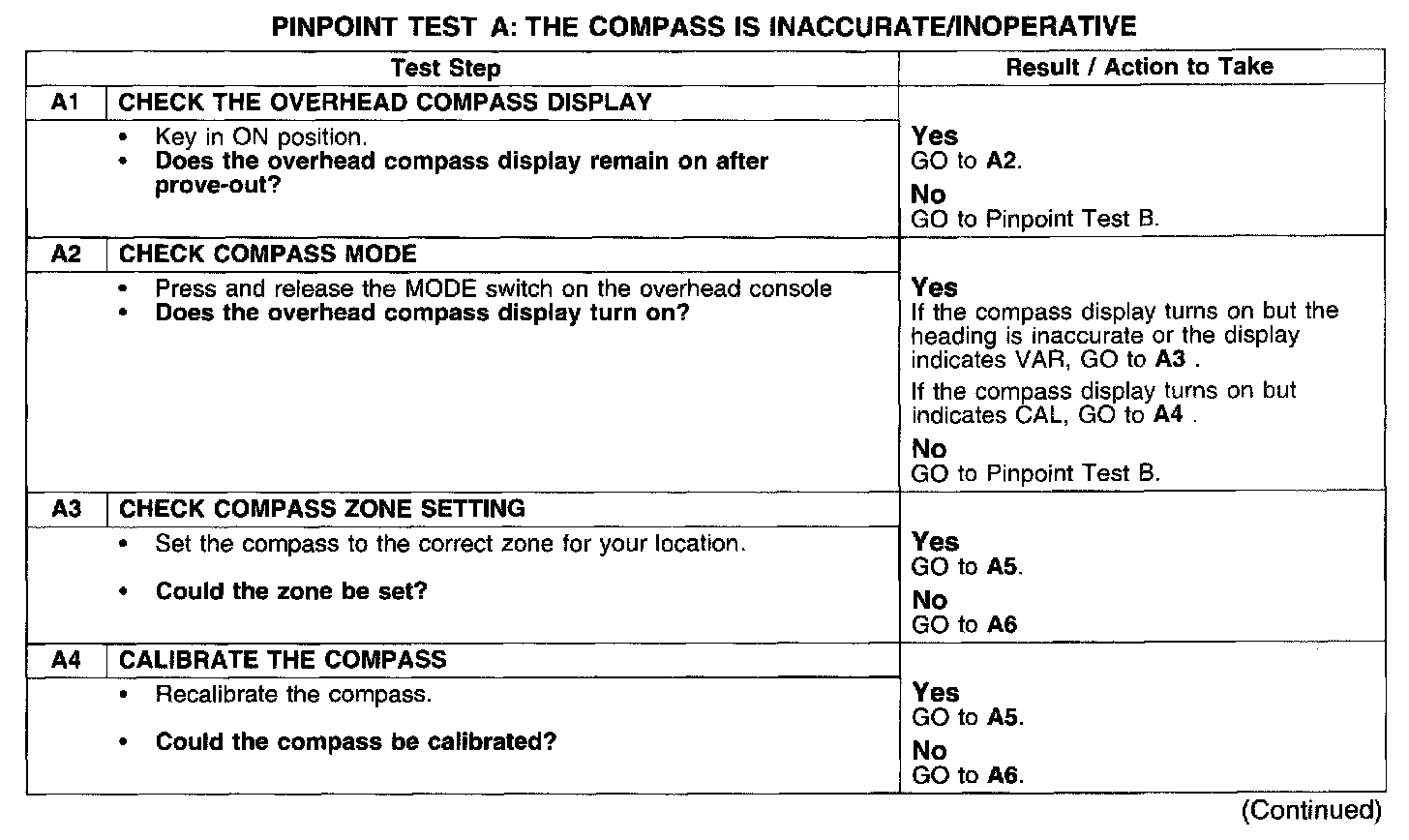

Test A1-A4:

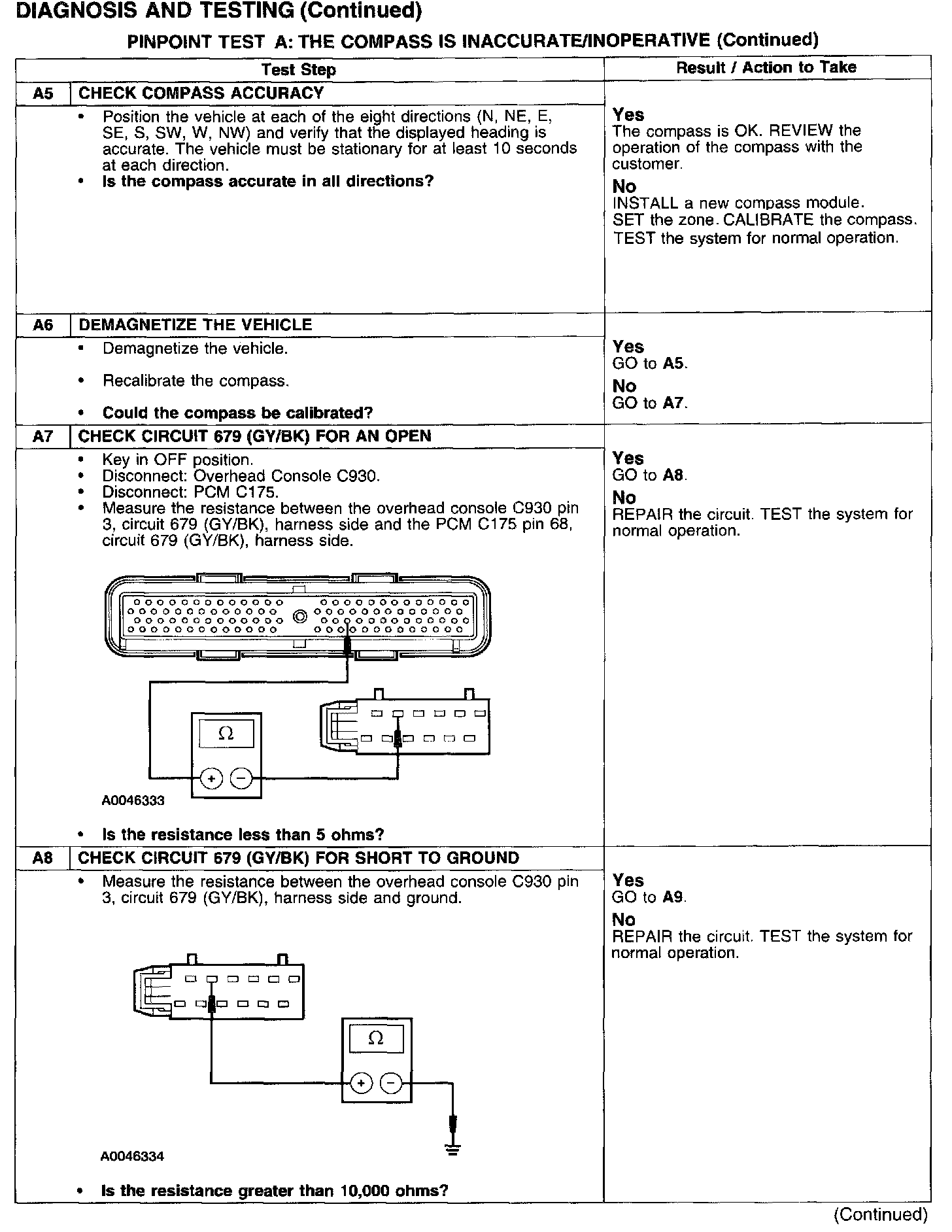

Test A5-A8:

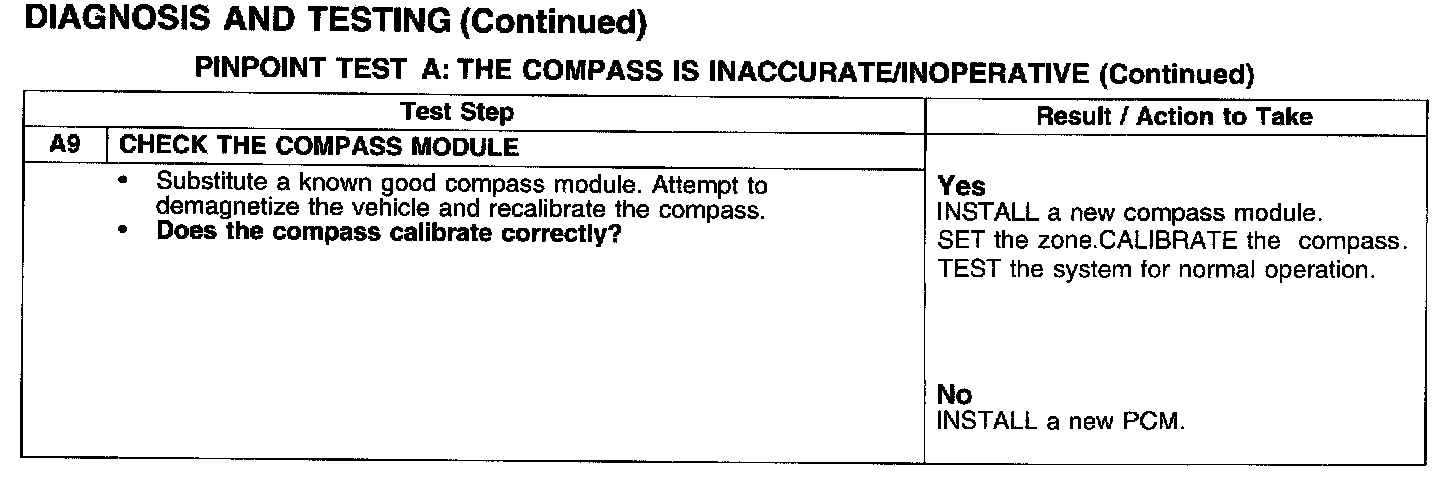

Test A9:
