Compass: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

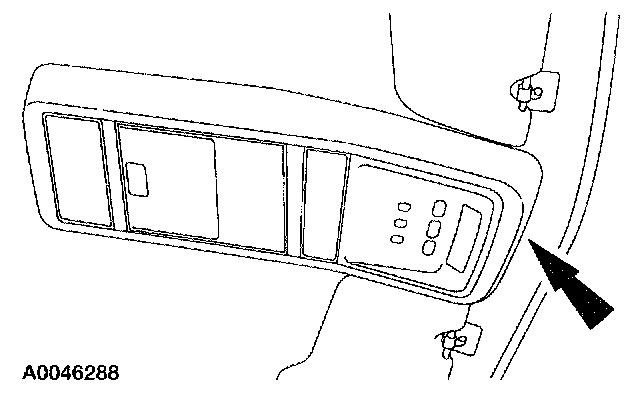

2. Remove the screw.







3. Open the storage compartment and remove the two screws.







4. Remove the overhead console.
- Disconnect the electrical connectors.

NOTE: Disengage the six clip attachments by first pulling down on the front of the overhead console and then the rear of the overhead console.







5. Remove the screws.

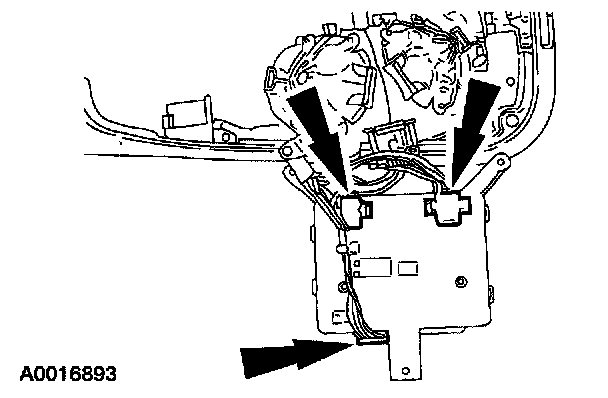

6. Disconnect the electrical harness connector and remove the switches and the harness from the compass module.


INSTALLATION
1. To install, reverse the removal procedure.
