Compass Zone Adjustment

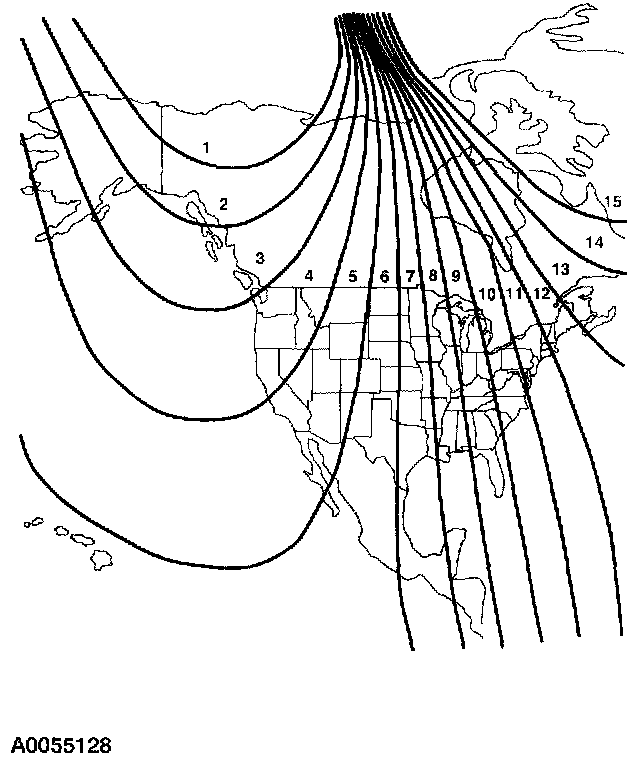

1. Refer to the compass calibration zone map to select the correct compass zone setting for your geographical location.

NOTE:
- The compass exits the zone setting mode and returns to its previous zone setting after one minute of no activity.
- If power is interrupted during the zone setting process, the compass resets to the same zone it was set to before the zone change process was started.

2. Turn the ignition key to the ON position.
3. Press and release the MODE button until the compass directional heading is displayed.
4. Hold down the MODE button for 5 seconds to enter ZONE mode.
5. The display will read PRESS RESET TO SET ZONE XX where XX is the current zone.
6. Repeatedly press and release the Reset button to advance through the zones (1-15) until the desired zone is displayed.
7. Press the MODE button to save the new zone setting and return to the compass normal mode.
