Test L: Temp Control Is Inop/Does Not Operative Correctly
Test L: Temp Control Is Inop/Does Not Operative Correctly

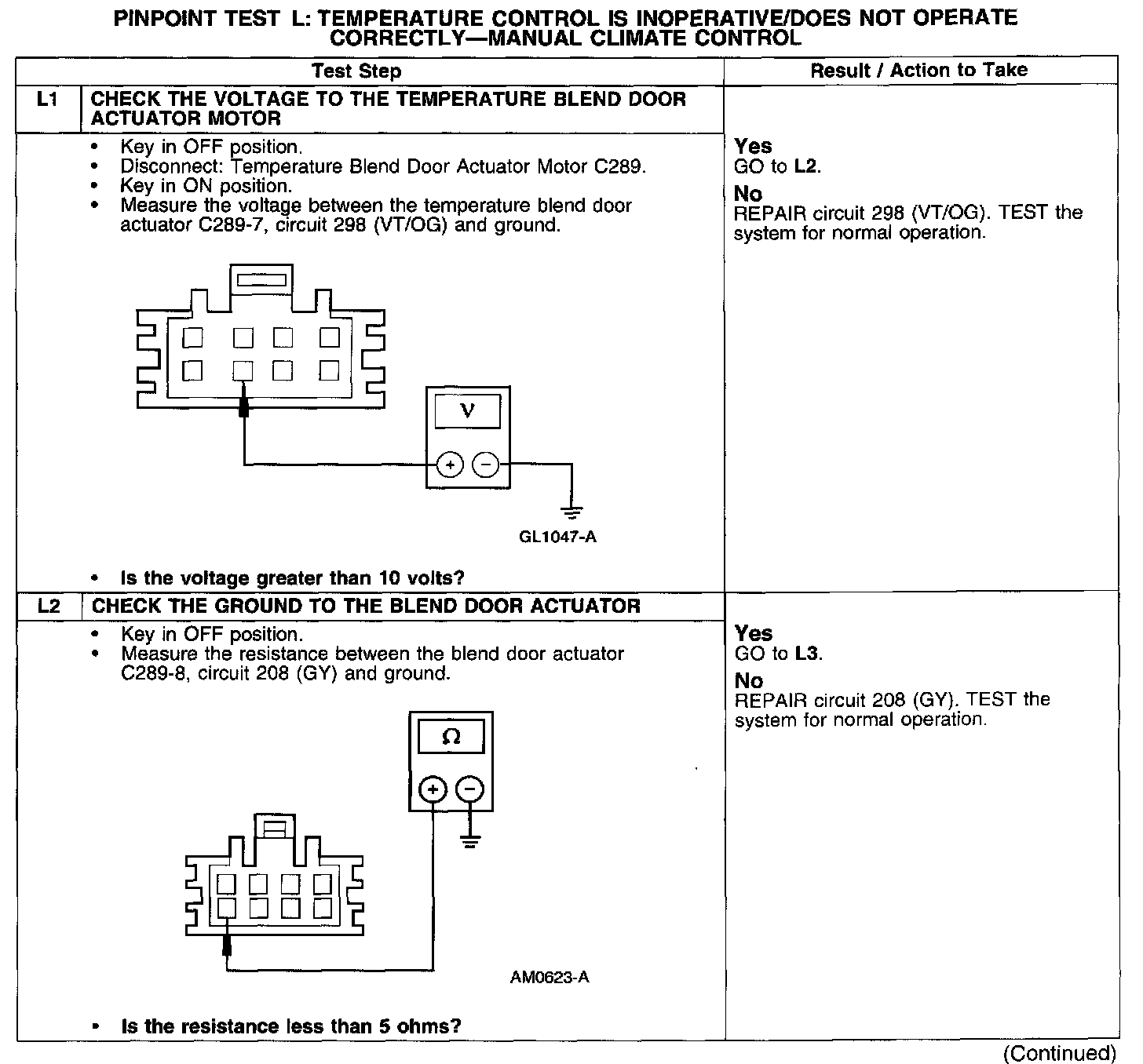

L1 - L2:

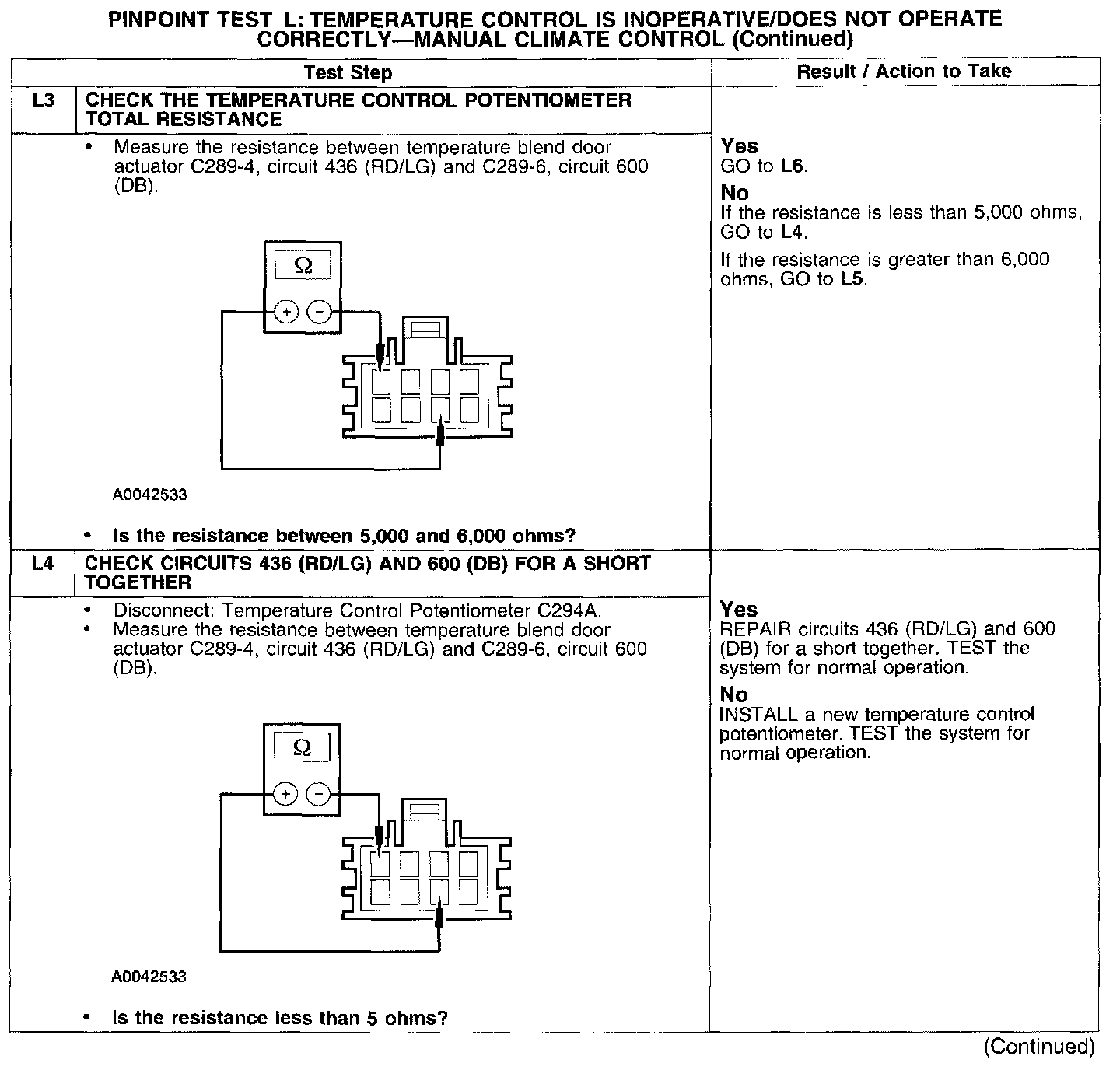

L3 - L4:

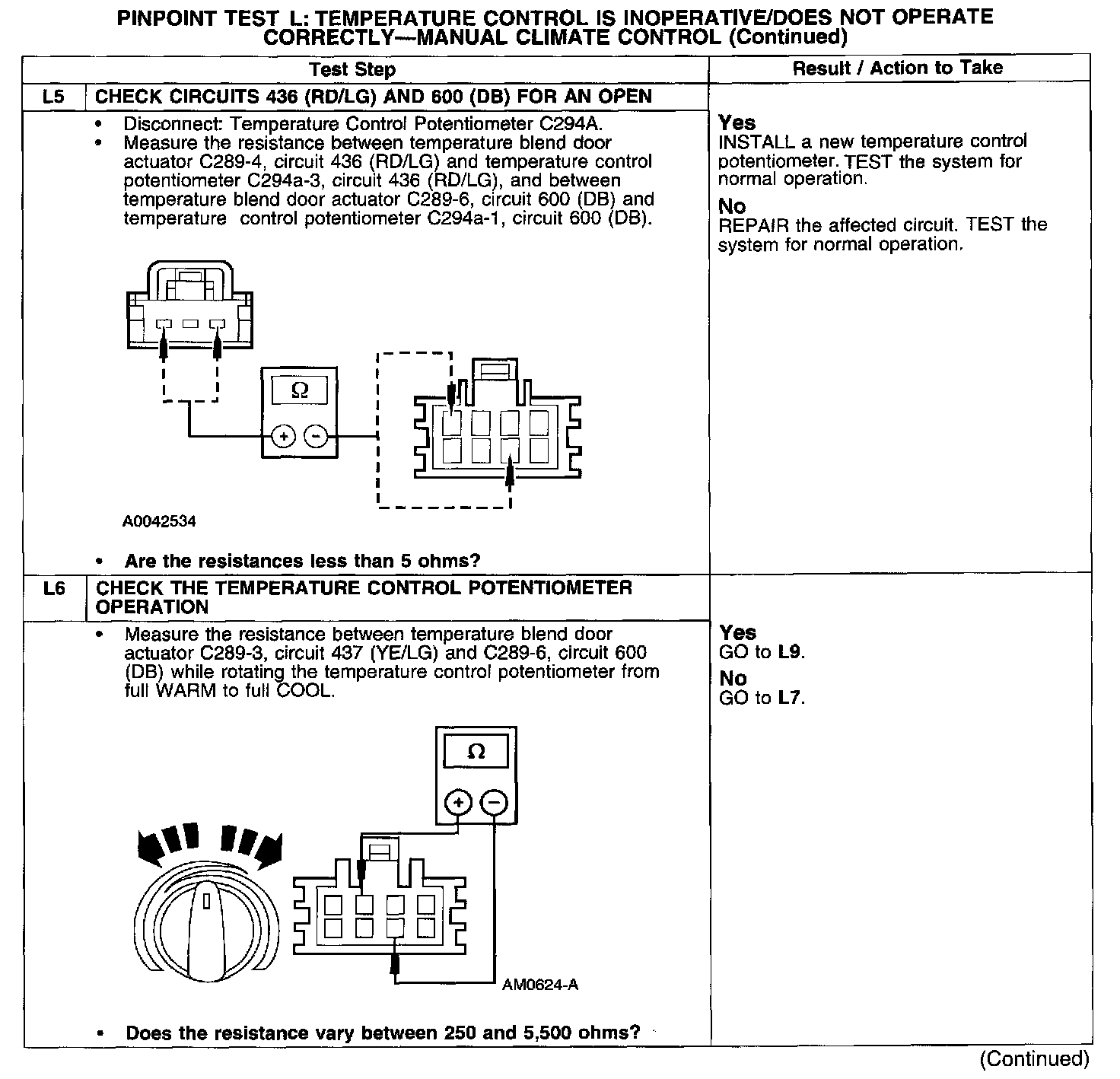

L5 - L6:

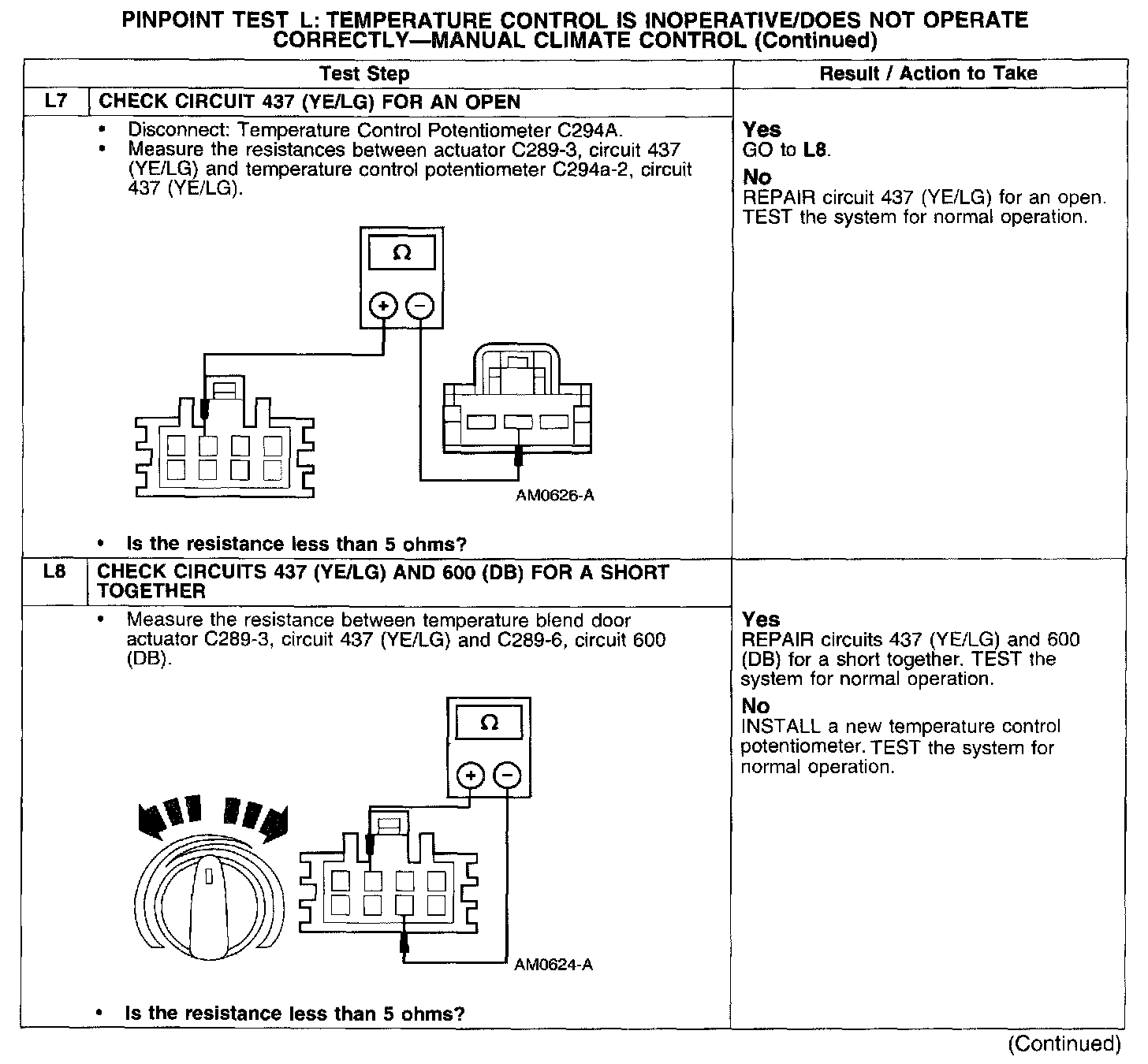

L7 - L8:

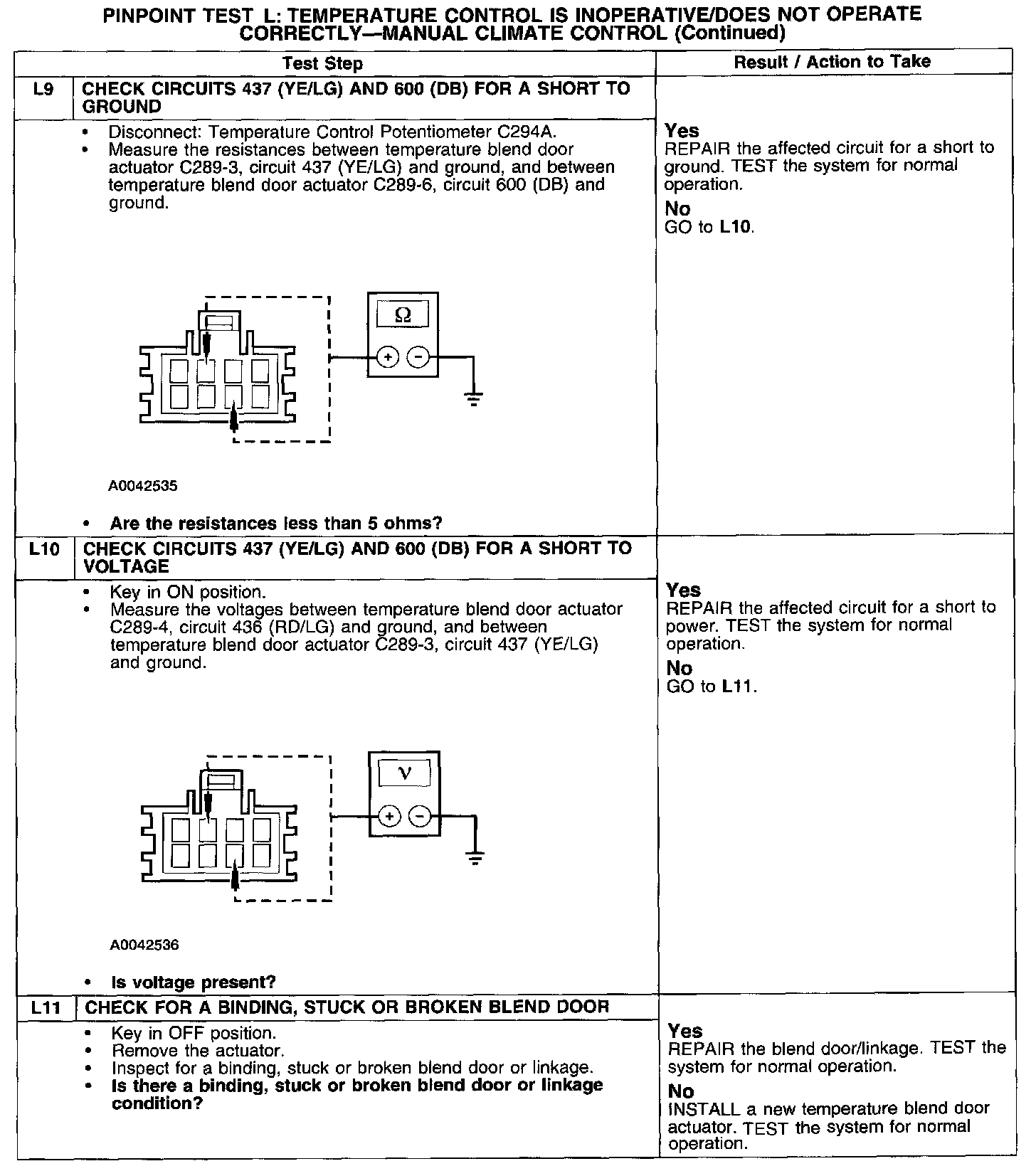

L9 - L11:
