Test H: Incorrect/Erratic Air Flow From Outlet - EATC
Test H: Incorrect/Erratic Air Flow From Outlet - EATC

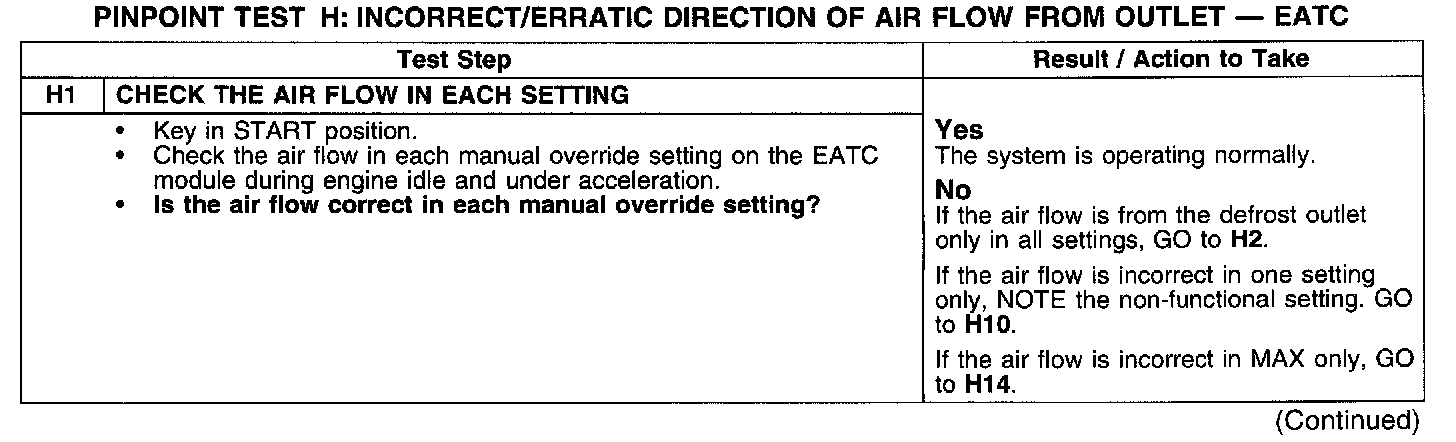

H1:

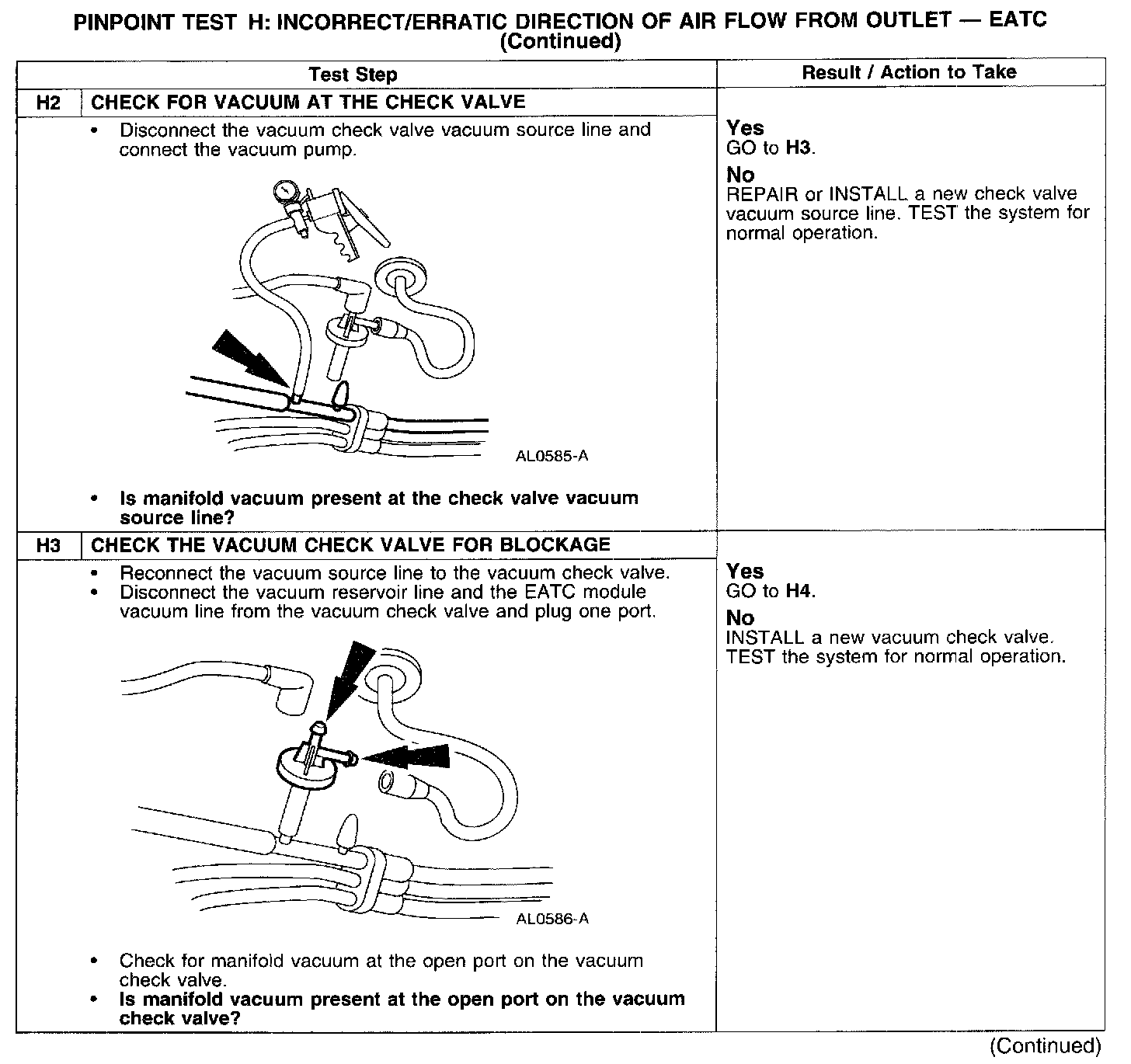

H2 - H3:

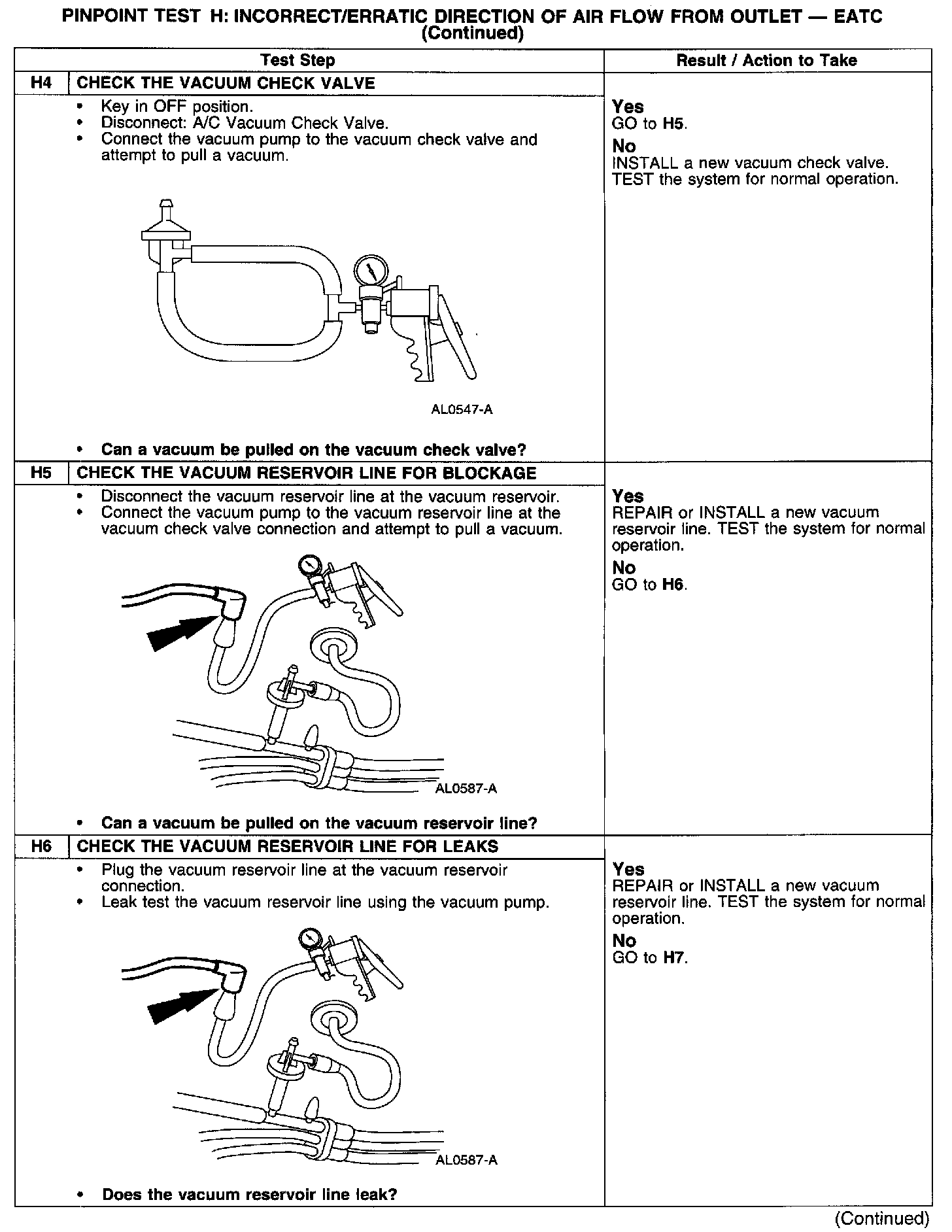

H4 - H6:

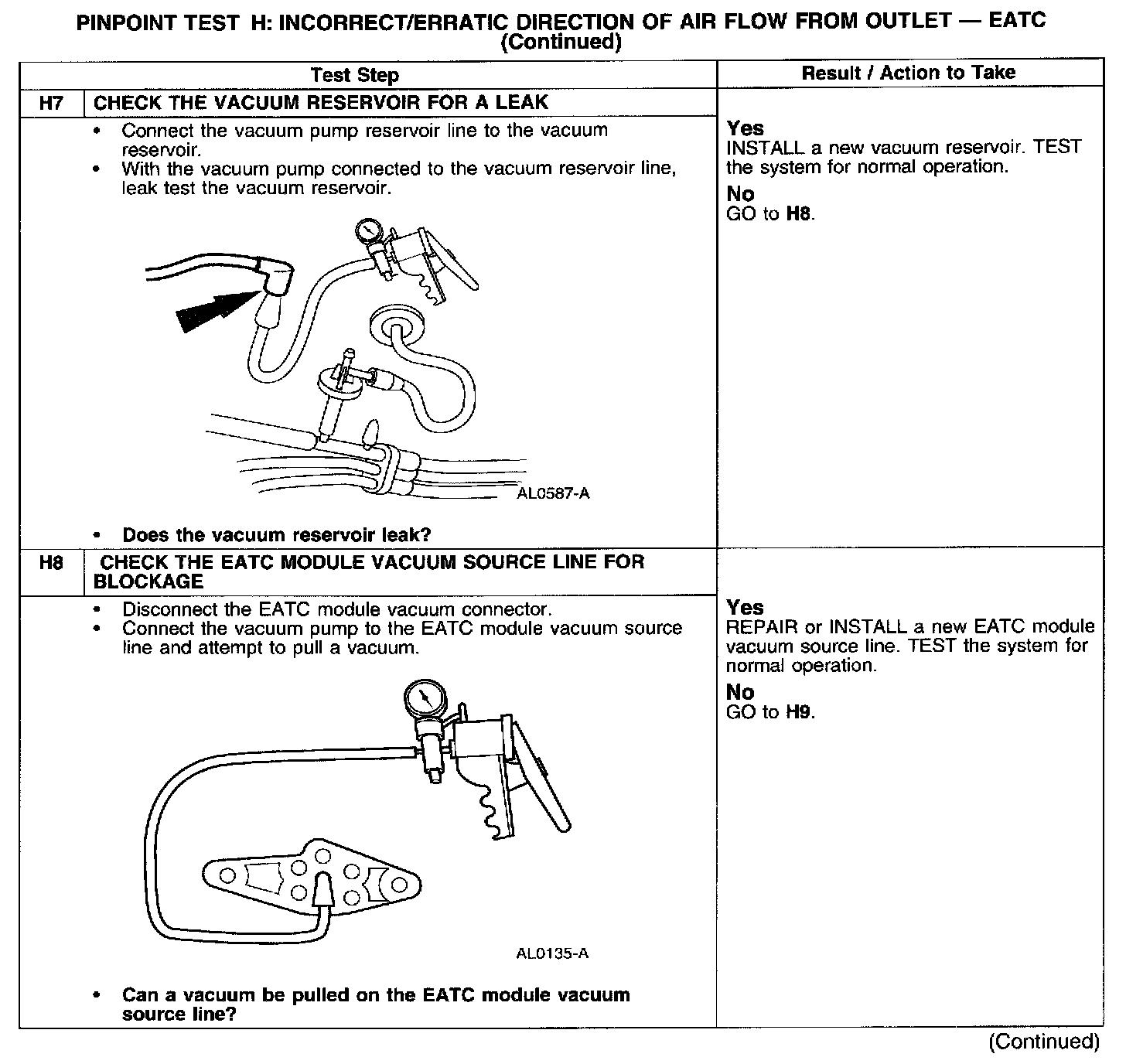

H7 - H8:

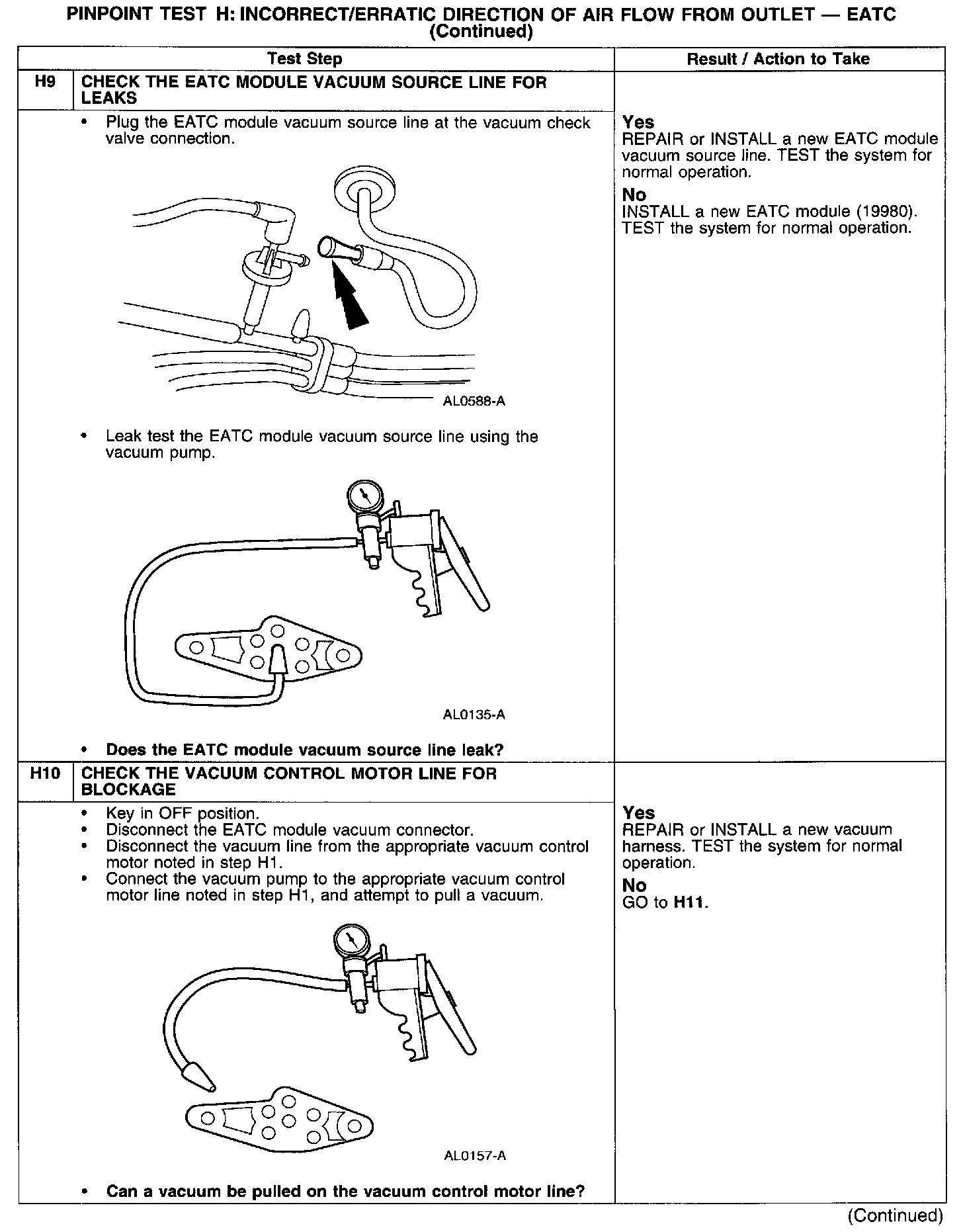

H9 - H10:

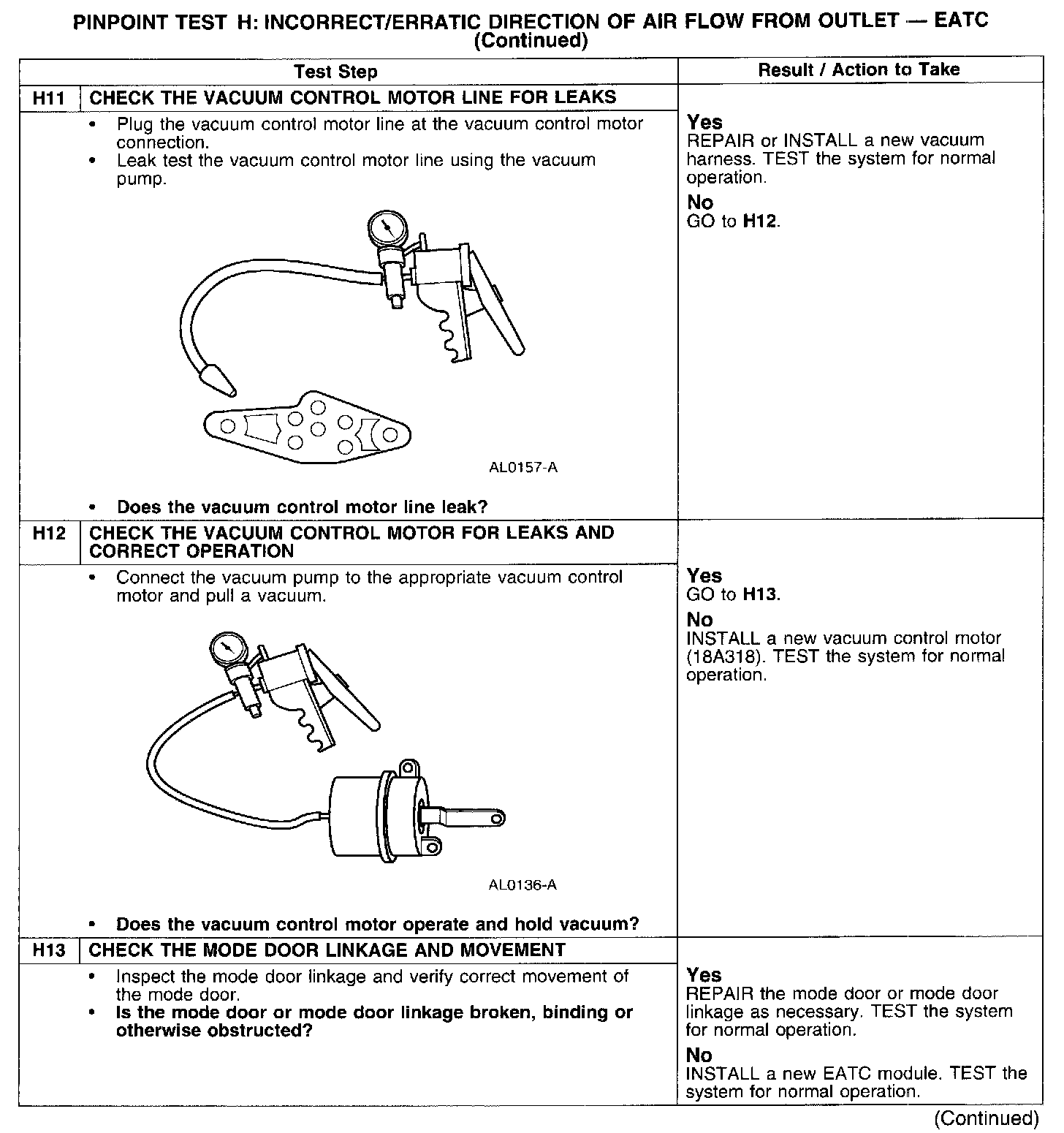

H11 - H13:

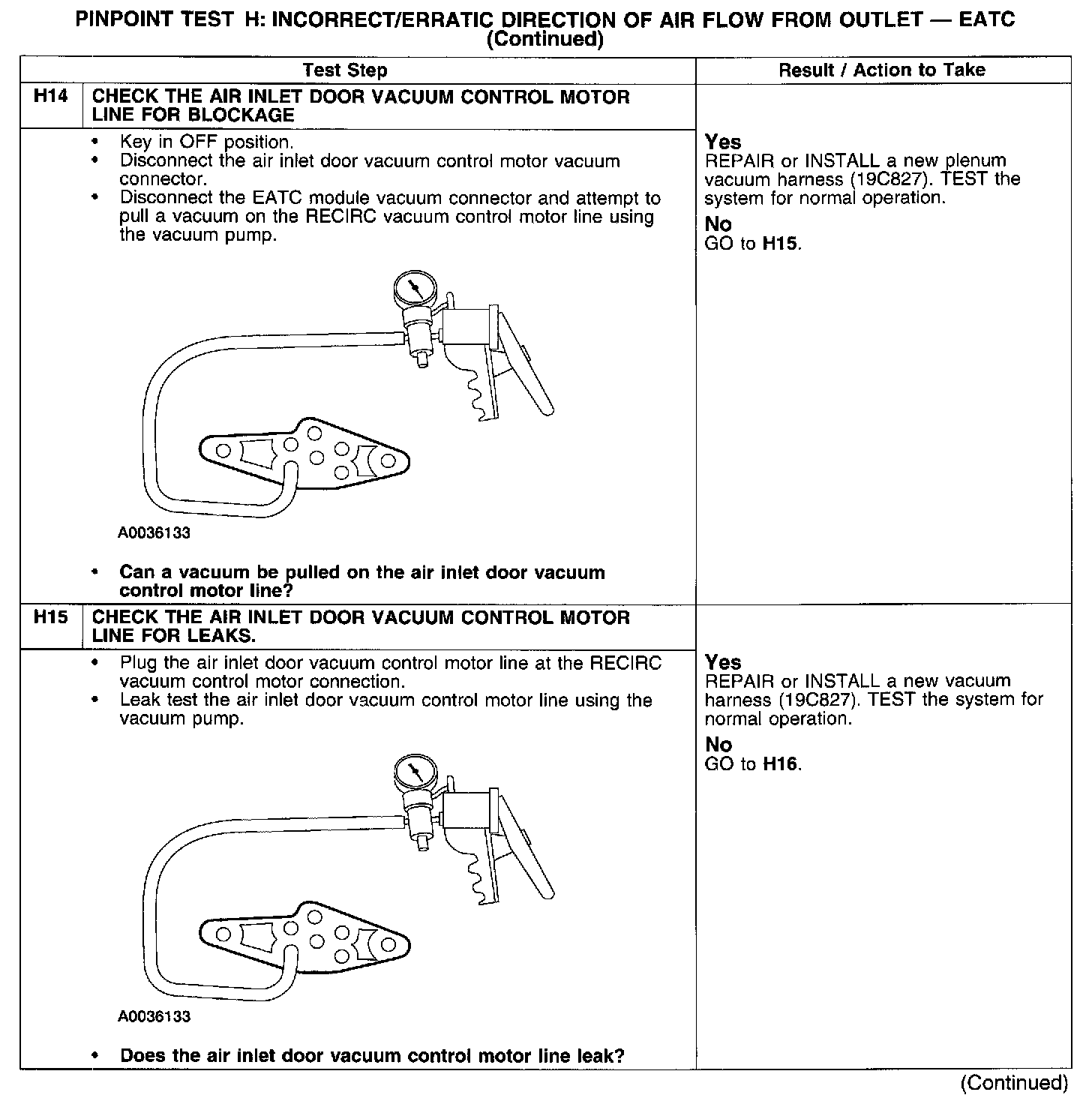

H14 - H15:
H16 - H17:
