Test G: Incorrect/Erratic Air Flow - Manual Climate Control

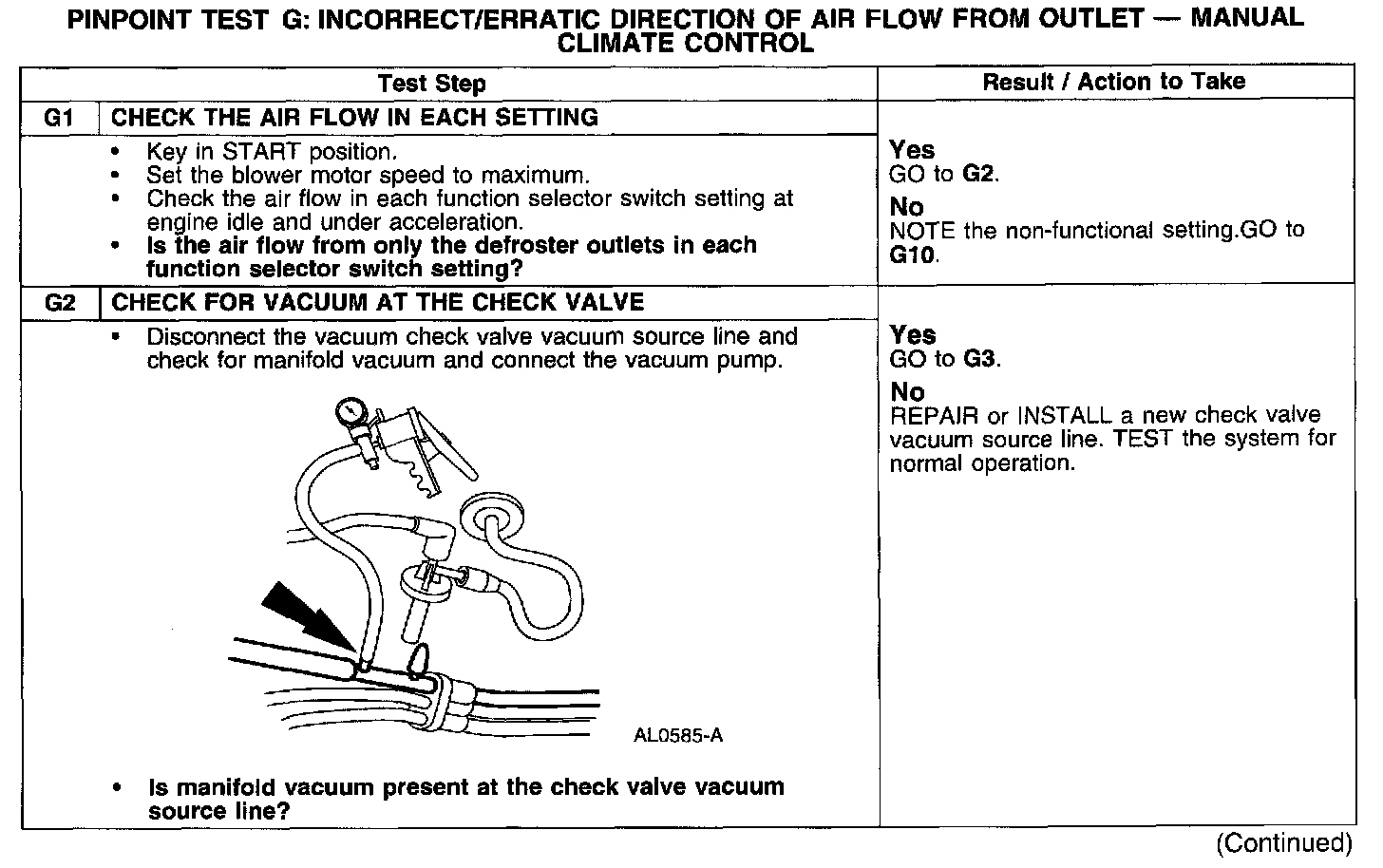

G1 - G2:






G3 - G5:

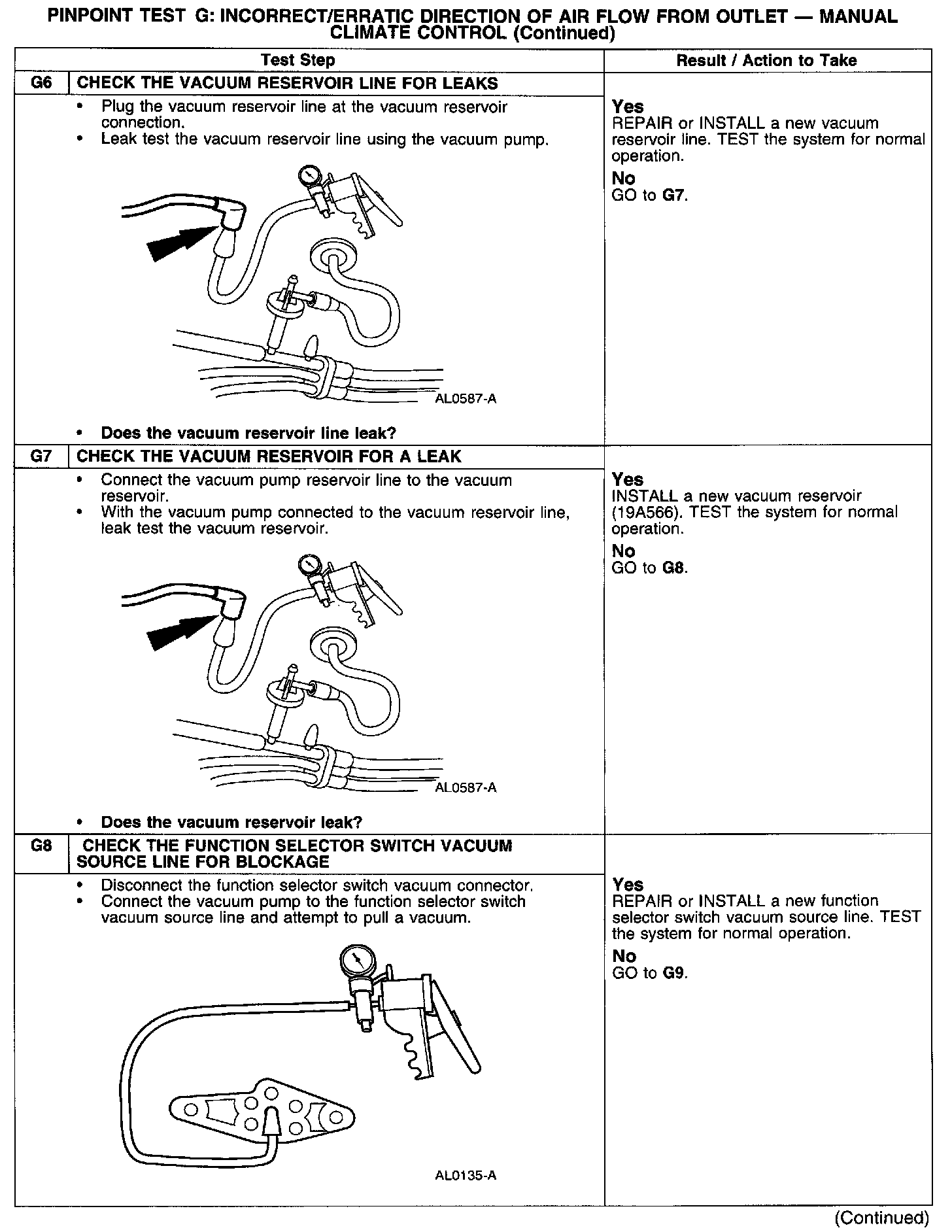

G6 - G8:






G8 - G9:

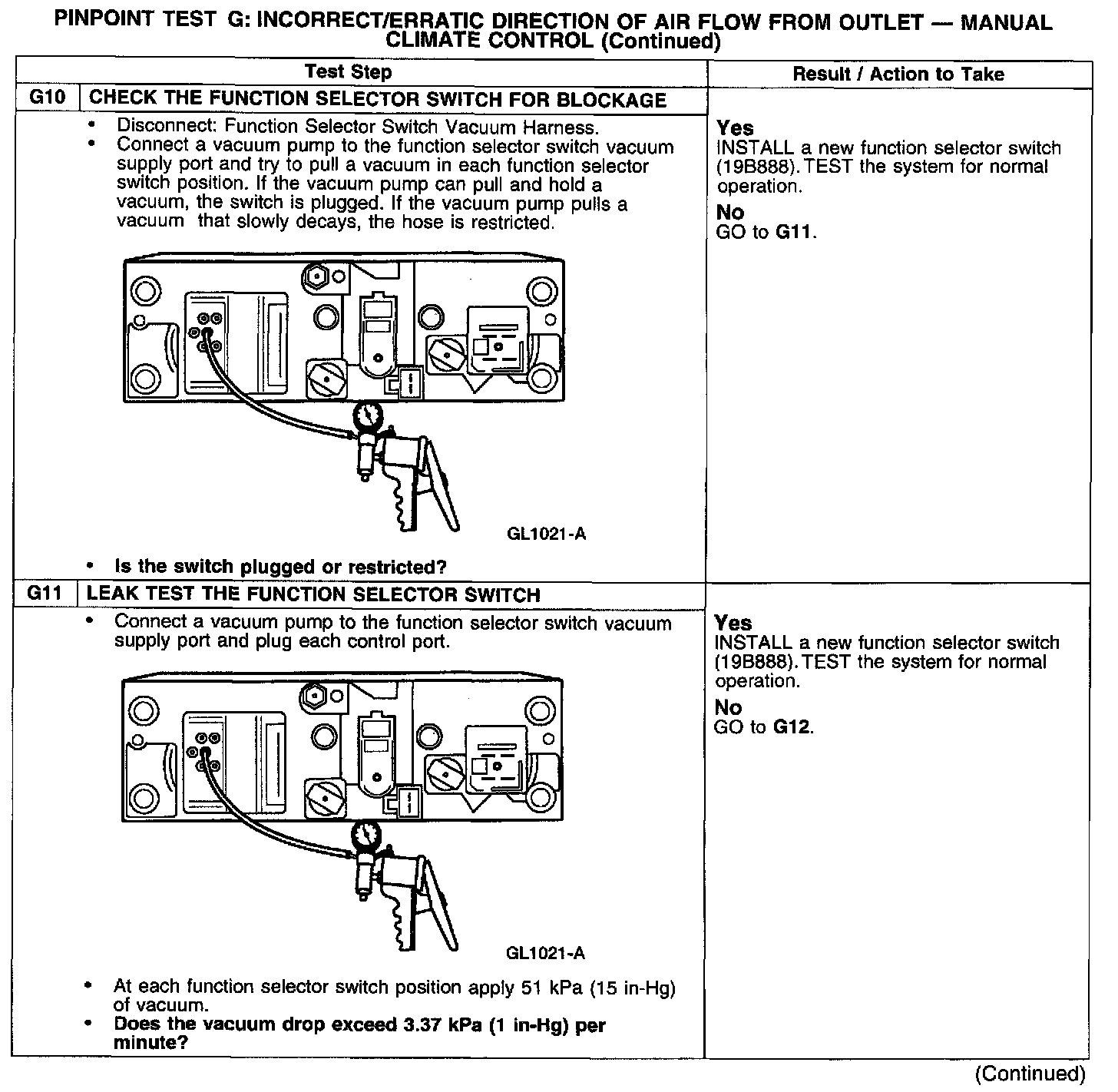

G10 - G11:

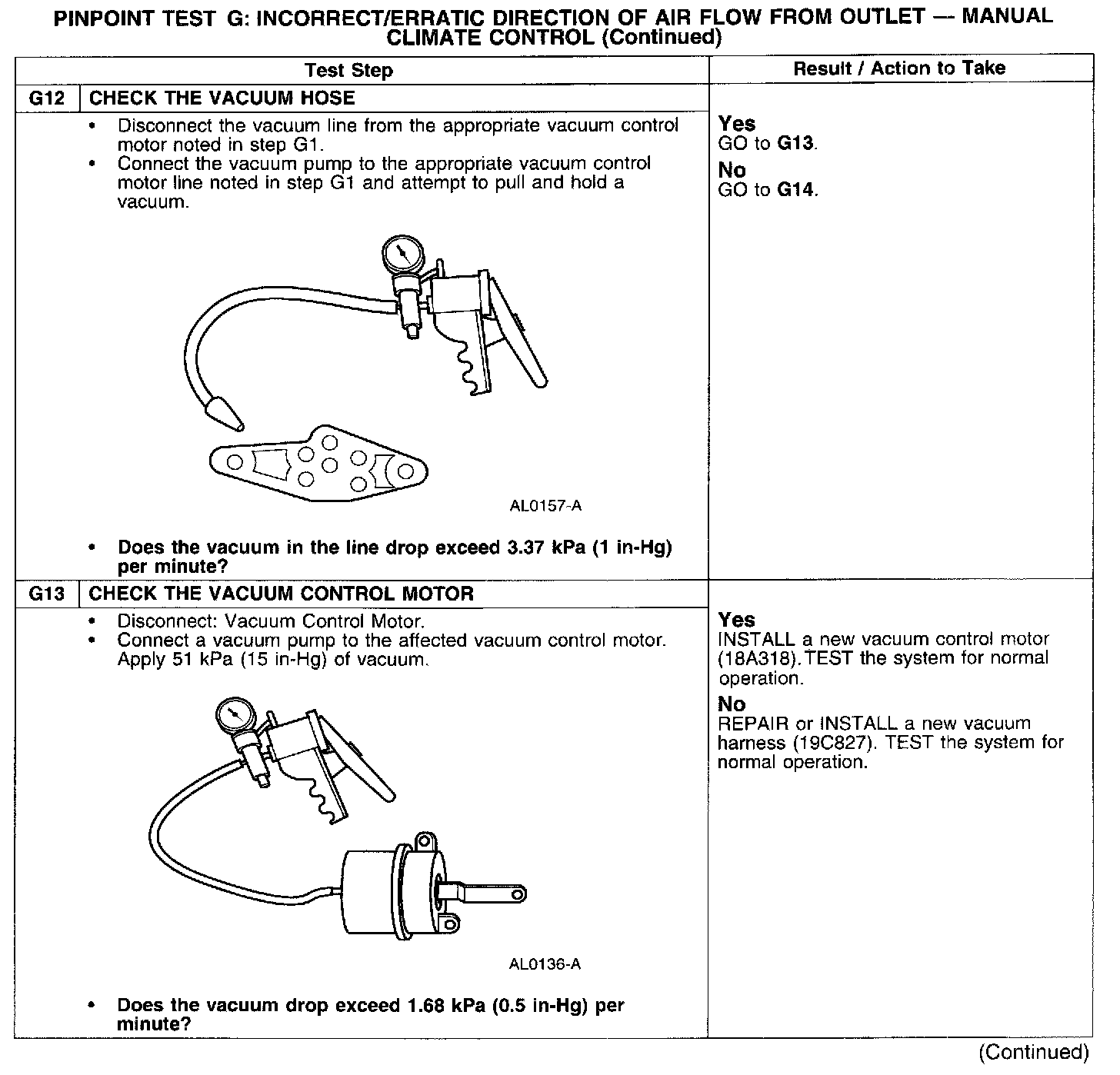

G12 - G13:

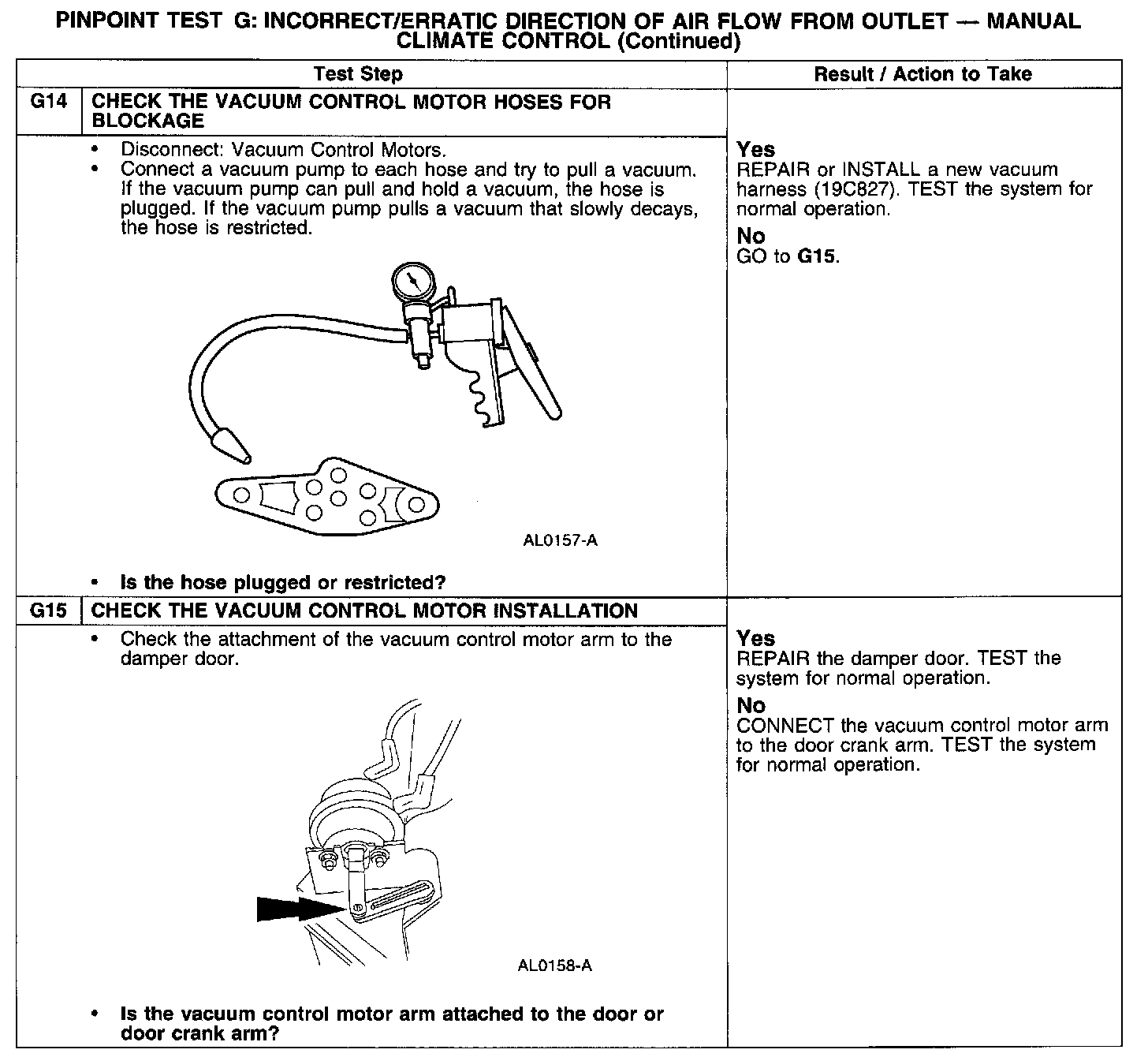

G14 - G15:
