Home >> Mercury >> 2003 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Manual A/C

Manual A/C

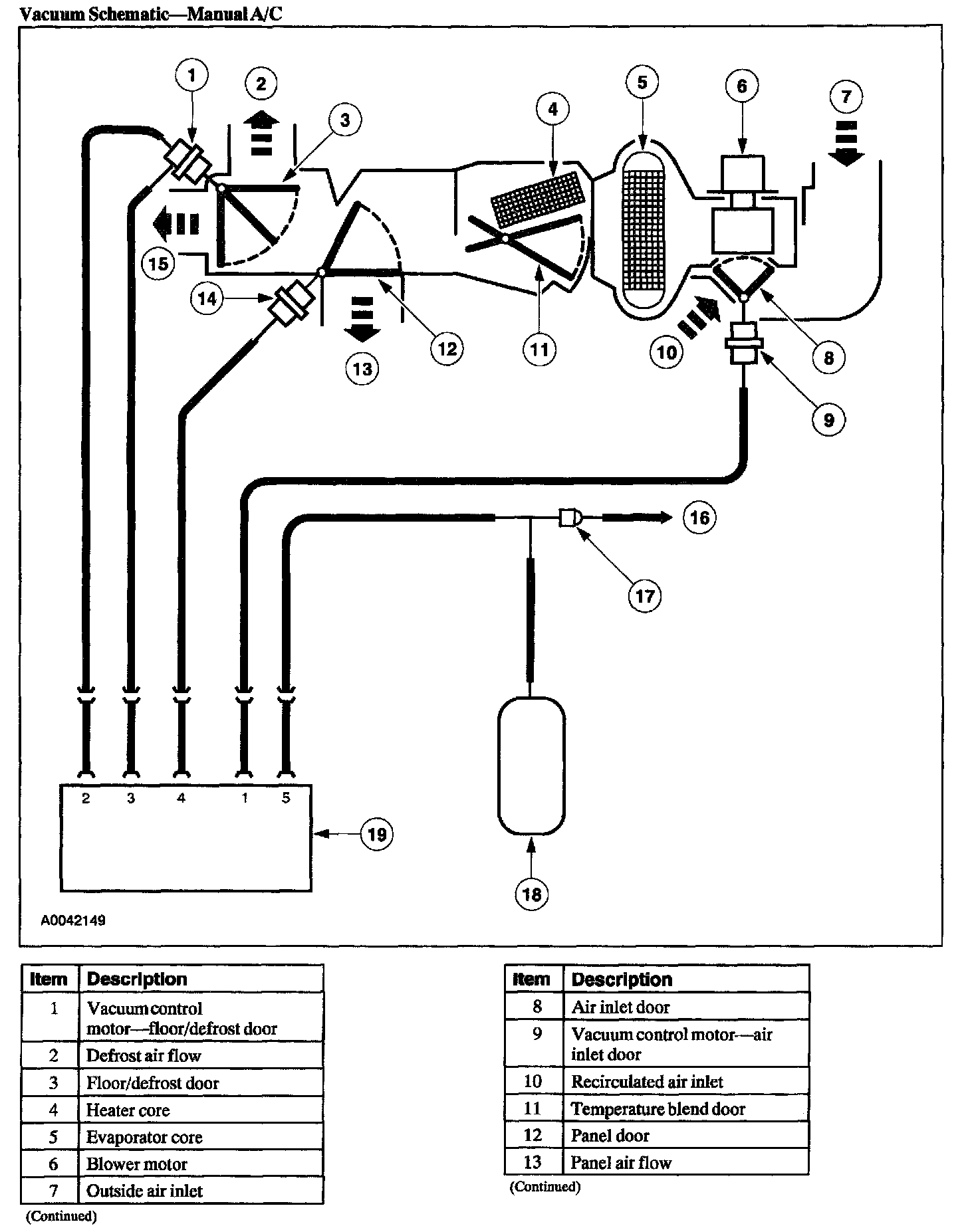

Vacuum Schematic-Manual A/C, Part 1:

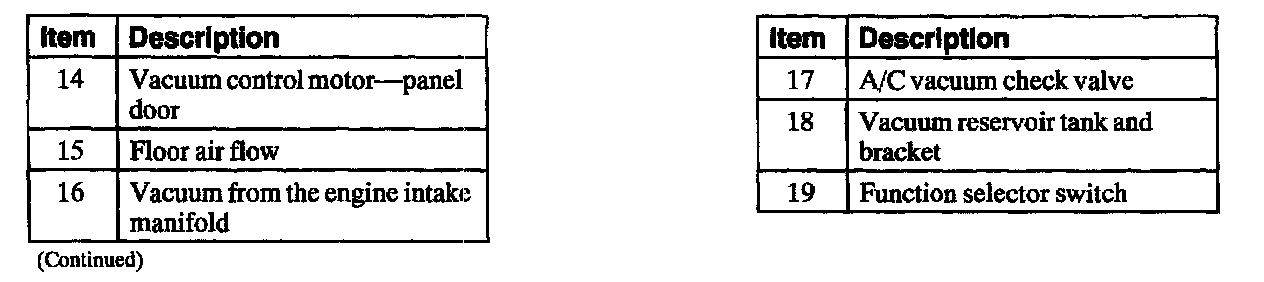

Vacuum Schematic-Manual A/C, Part 2:

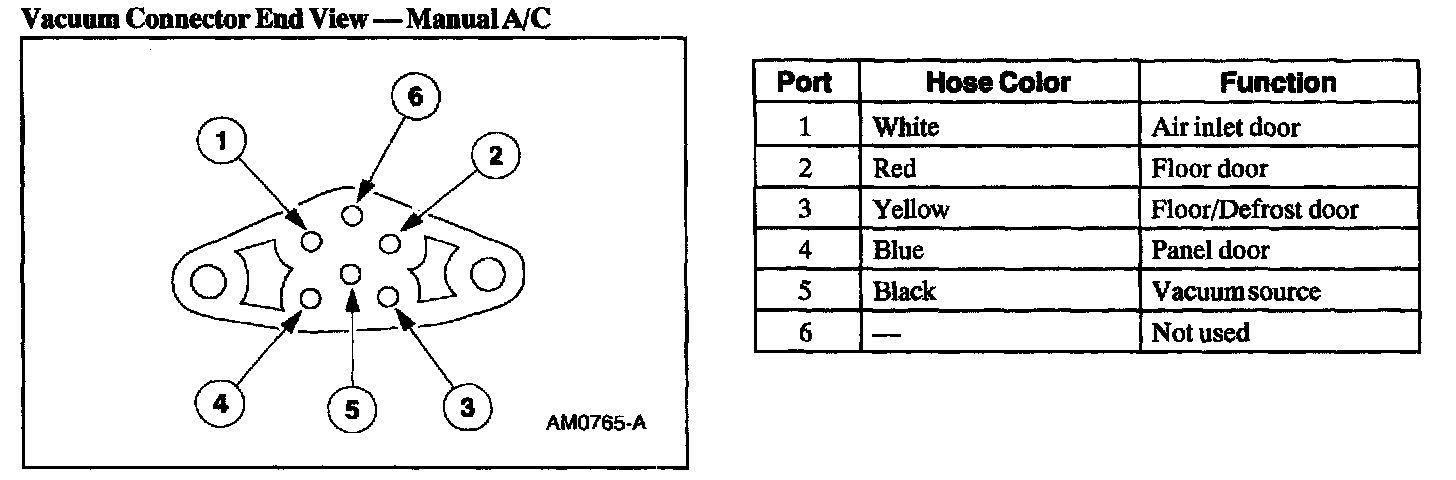

Vacuum Connector End View-Manual A/C:

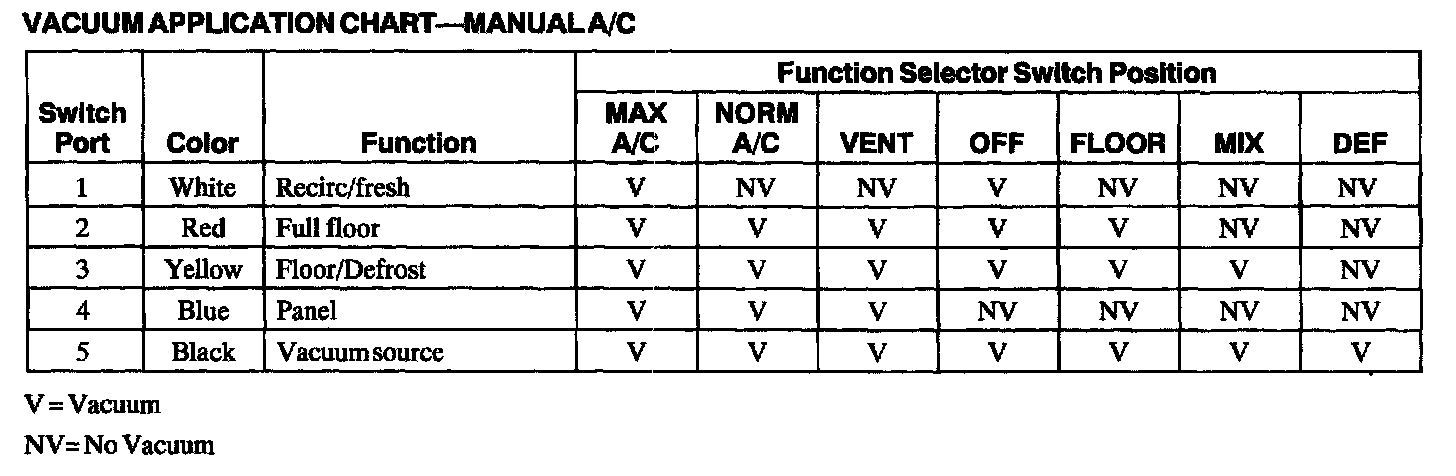

Vacuum Application Chart-Manual A/C:
