Exhaust Manifold RH

Exhaust Manifold RH

Removal and Installation
1. Remove the right front wheel and tire.

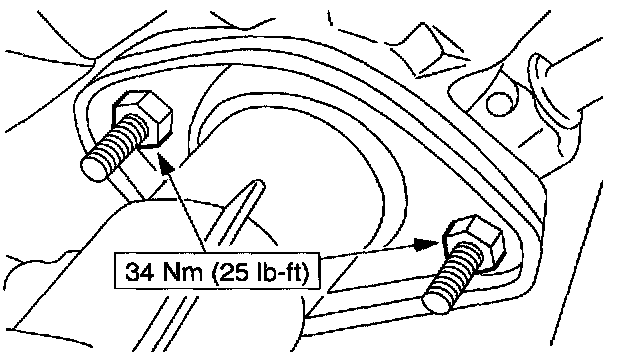

2. Disconnect the exhaust pipe from the exhaust manifold.

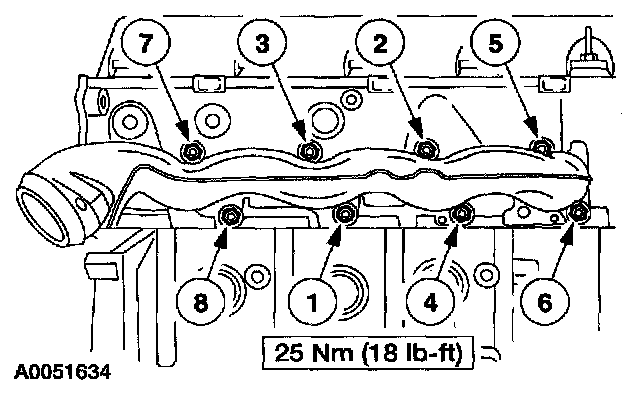

3. Remove the eight nuts, the exhaust manifold and the gasket.
4. To install, reverse the removal procedure.
