Exhaust Manifold LH

Exhaust Manifold LH

Removal and Installation
1. Remove the left front wheel and tire.

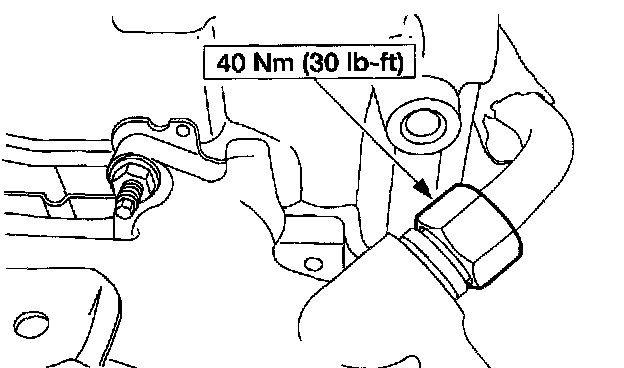

2. Disconnect the exhaust pipe from the exhaust manifold.





3. Disconnect the Exhaust Gas Recirculation (EGR) system module tube from the exhaust manifold.





4. Remove the eight nuts, the exhaust manifold and the gasket.
5. To install, reverse the removal procedure.
