Timing Cover: Service and Repair

Engine Front Cover

Removal
1. Disconnect the battery ground cable.
2. Remove both valve covers.
3. Remove the water pump.
4. Raise and support the vehicle.





5. Remove the bolts and position the power steering pump aside.





6. Remove the oil pan drain plug and drain the engine oil.





7. Remove the four bolts.
8. Lower the vehicle.
9. Remove the crankshaft front oil seal.





10. Remove the bolt and the belt idler pulley.





11. Remove the bolts and the stud bolts in the sequence shown.





12. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surface. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the gasket material.

Remove the engine front cover from the front cover-to-cylinder block dowel.
^ Clean the gasket surfaces with a plastic scraping tool and metal surface cleaner.

Installation





1. NOTE: If the engine front cover is not secured within four minutes, the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of wetness, or for four minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

Apply sealant along the cylinder head-to-block surface and the oil pan-to-cylinder block surface.





2. Install the engine front cover on the front cover-to-cylinder block dowel and loosely install the bolts.

Part 1 Of 4:

Part 2 Of 4:

Part 3 Of 4:

3. Tighten the front cover bolts and stud bolts in sequence in two stages.
Stage 1: Tighten fasteners 1 through 7 to 25 Nm (18 ft. lbs.).
Stage 2: Tighten fasteners 6 through 15 to 48 Nm (35 ft. lbs.).





4. Position the belt idler pulley and install the bolt.
5. Install a new crankshaft front oil seal.
6. Raise and support the vehicle.





7. Loosely install the front oil pan bolts.





8. NOTE: Make sure to tighten the bolts in two stages.

Tighten the bolts in two stages.
^ Stage 1: Tighten to 20 Nm (15 ft. lbs.).
^ Stage 2: Tighten an additional 60 degrees.

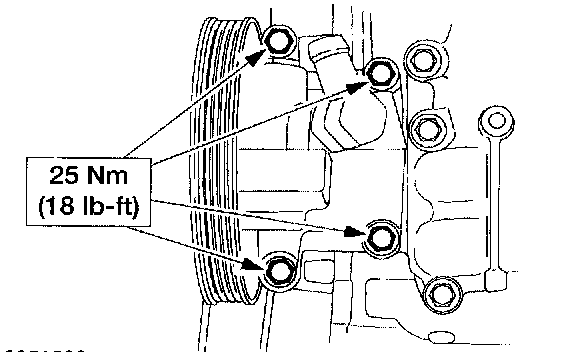

9. NOTE: The front lower hole in the power steering pump is not used.

Position the power steering pump and install the bolts.

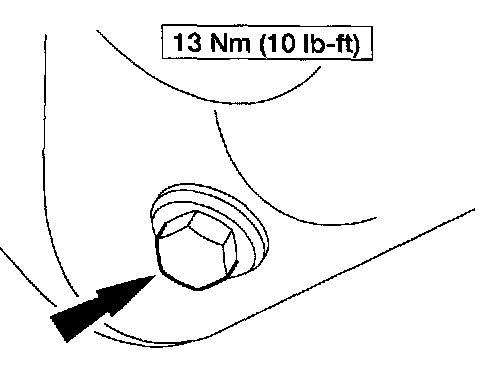

10. Install the oil pan drain plug.
11. Lower the vehicle.
12. Install the valve covers.
13. Install the water pump.
14. Connect the battery ground cable.
15. Fill the engine with oil.
