Valve Guide Seal: Service and Repair

Valve Seals

Special Tools:

Special Tool(s)

Removal
1. Remove the valve springs.

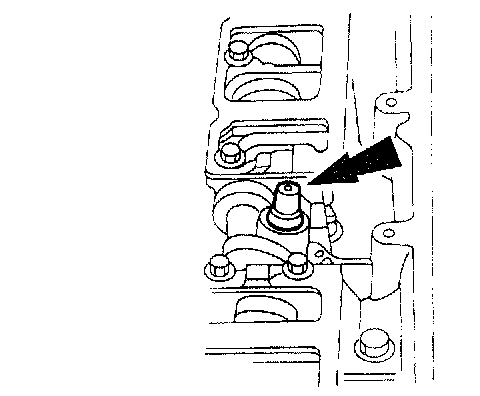

2. Remove the valve stem seals.

Installation





1. NOTE: The valve stem seal must be bottomed on the valve seat. Make sure that the garter spring is present in the valve stem seal.

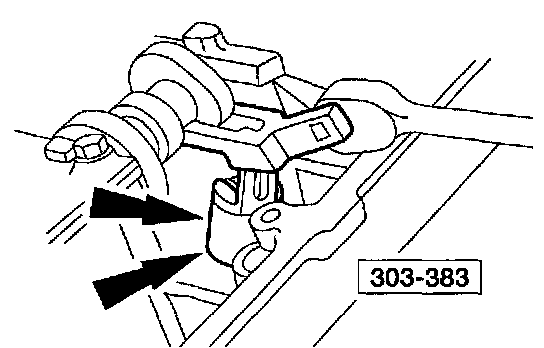

Use the special tool to install the valve stem seals.
2. Install the valve springs.
