Checking the Engine Oil

1. Make sure the vehicle is on level ground.

2. The the engine off and wait up to 10 minutes for the oil to drain into the oil pan.

3. Set the parking brake and ensure the gearshift is securely latched in P (Park).

4. Open the hood. Protect yourself from engine heat.

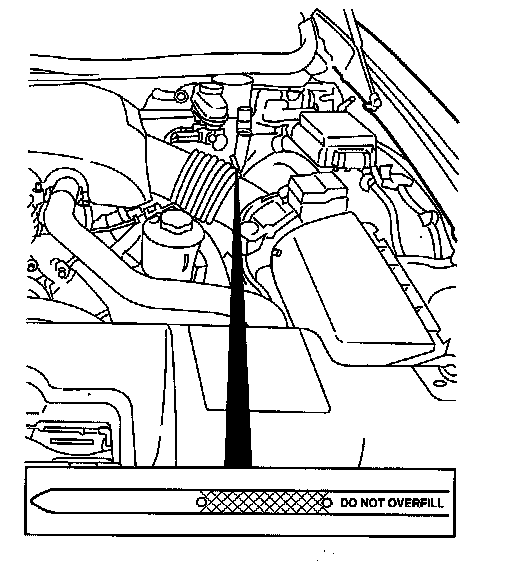

5. Locate and carefully remove the engine oil level indicator (dipstick).

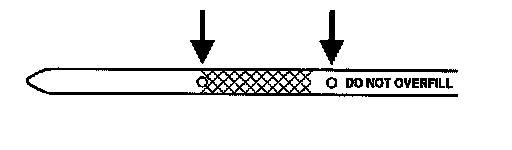

6. Wipe the indicator clean. Insert the indicator fully, then remove it again.




- If the oil level is within this range, the oil level is acceptable. DO NOT ADD OIL.

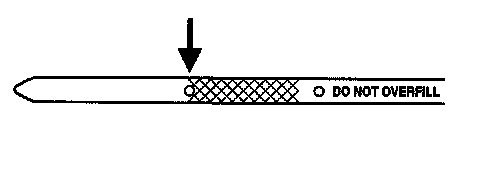

- If the oil level is below this mark, engine oil must be added to raise the level within the normal operating range.

- If required, add engine oil to the engine.

- Do not overfill the engine with oil. Oil levels above this mark may cause engine damage. If the engine is overfilled, some oil must be removed from the engine by a qualified service technician.

7. Put the indicator back in and ensure it is fully seated.
