Radiator Cooling Fan
>>
Radiator Cooling Fan Motor
>>
Diagrams
>>
Connector Views
Connector Views

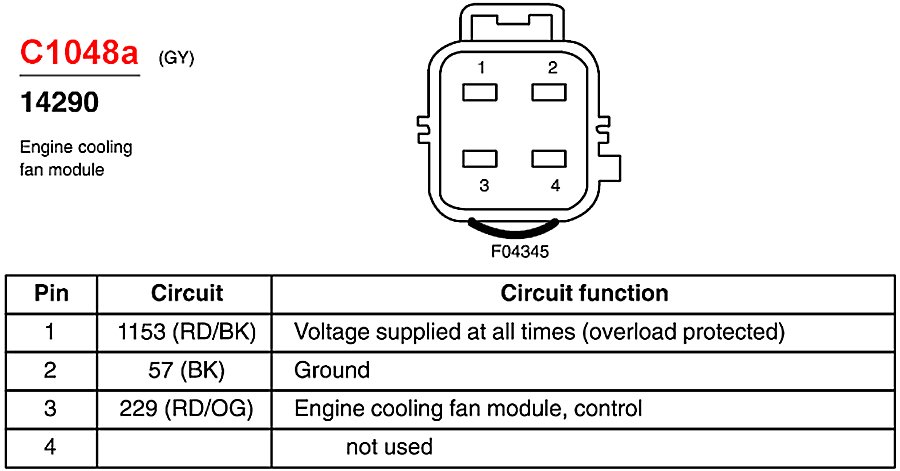

C1048a:

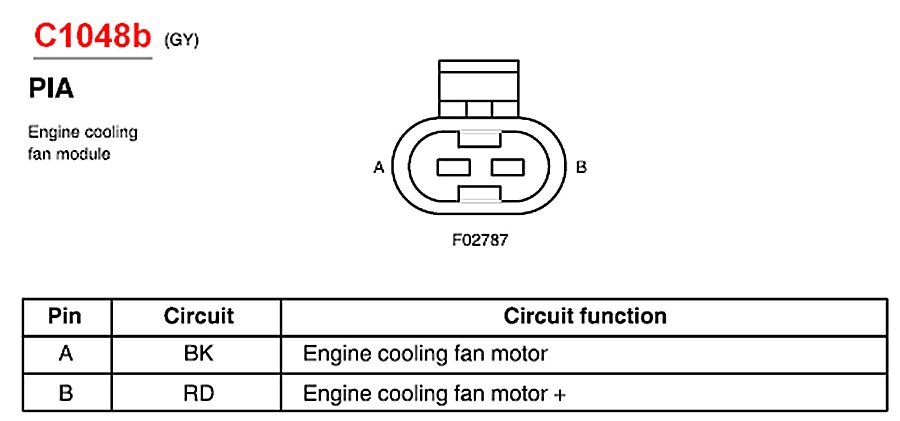

C1048b:
