Engine Component View

Engine Component View

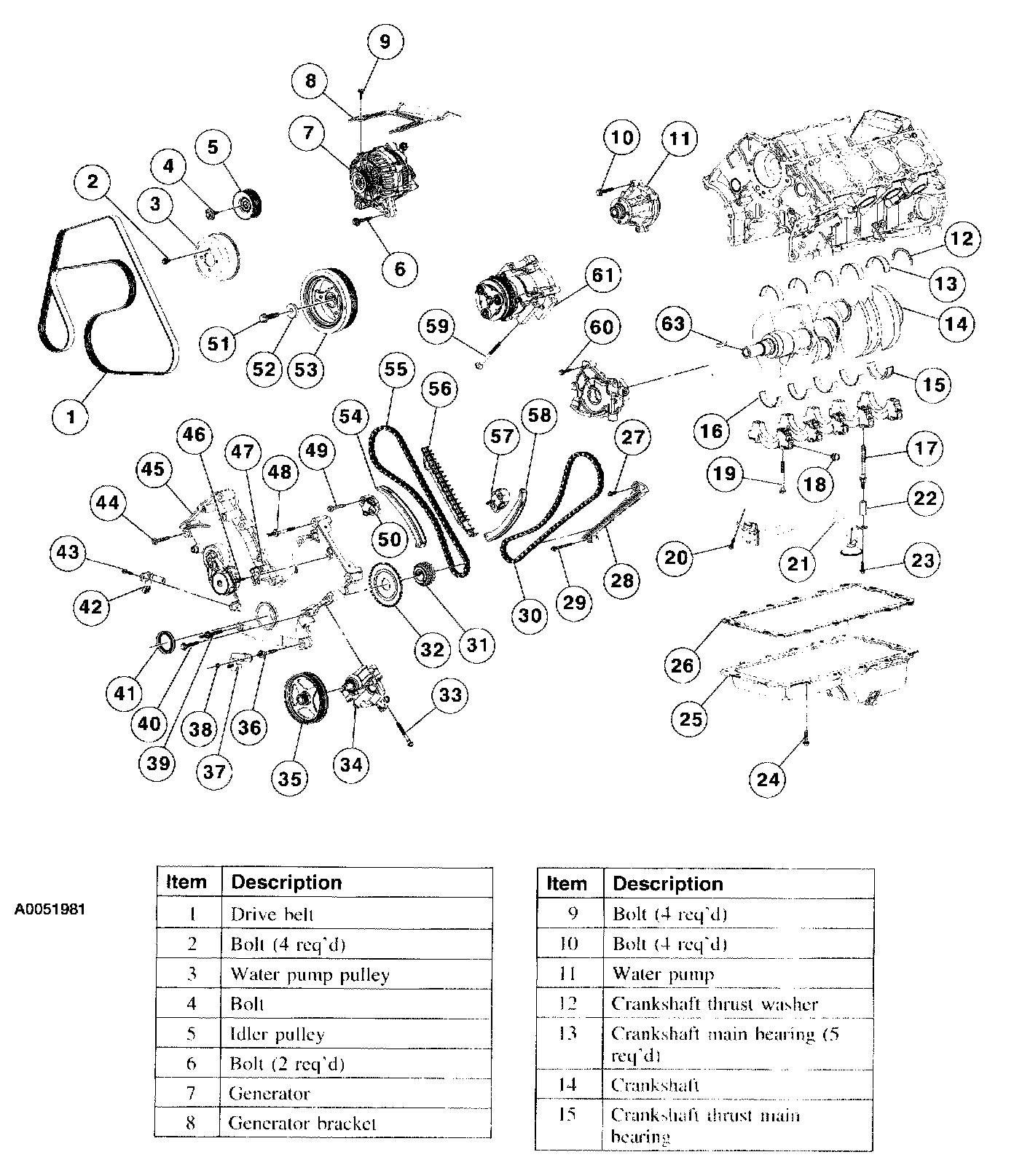

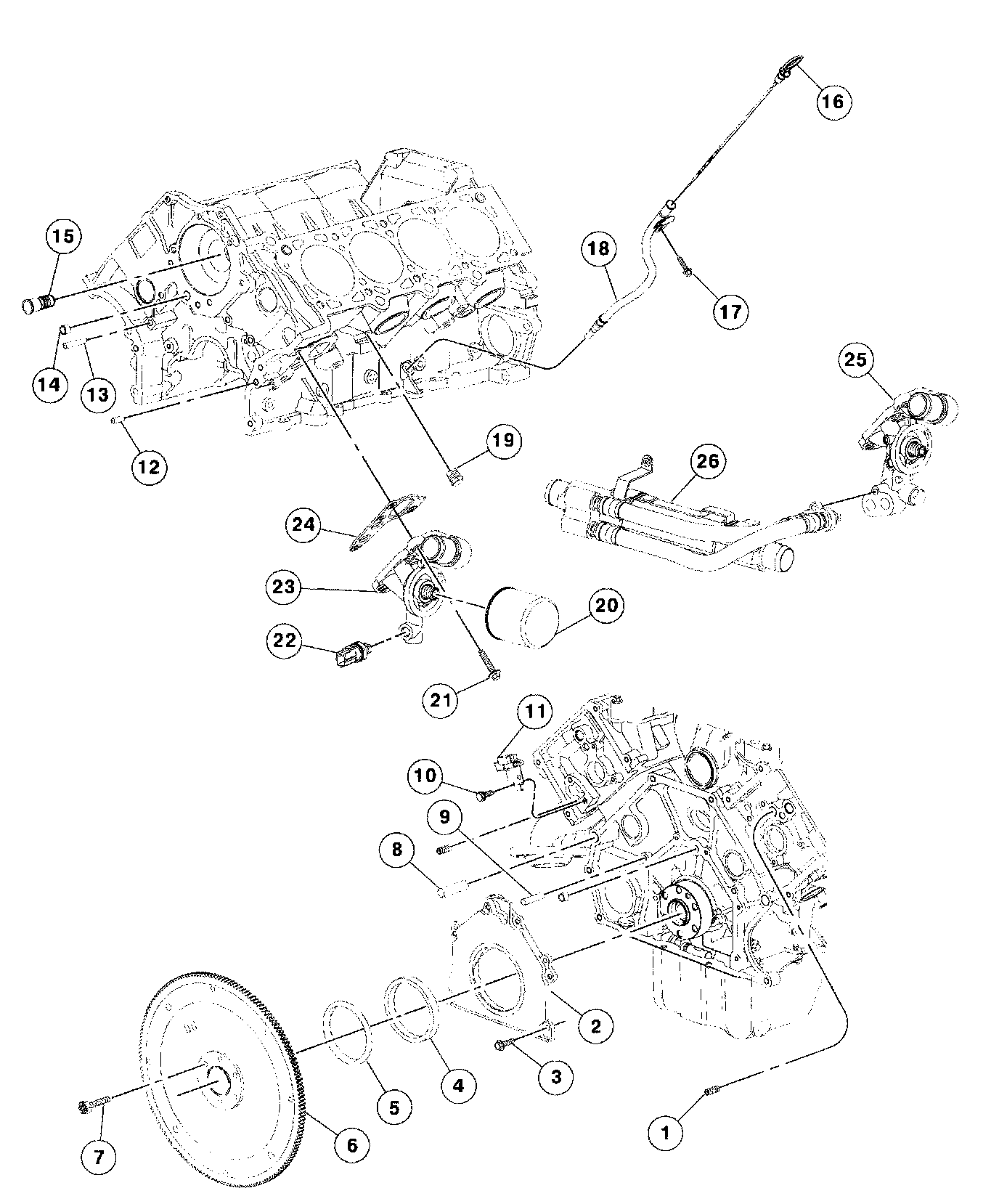

Part 1 Of 2:

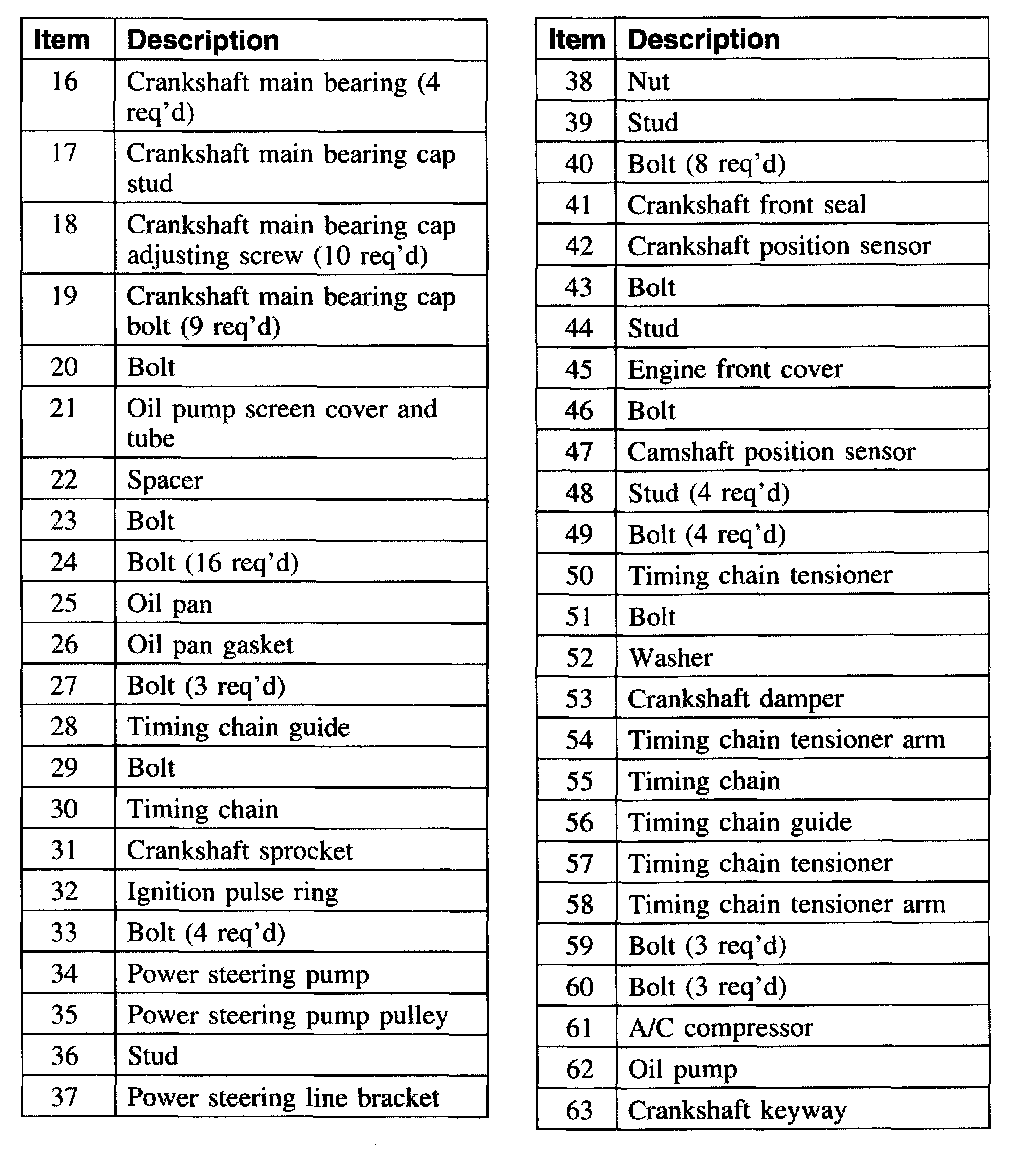

Part 2 Of 2:




Part 1 Of 2:




Part 2 Of 2:

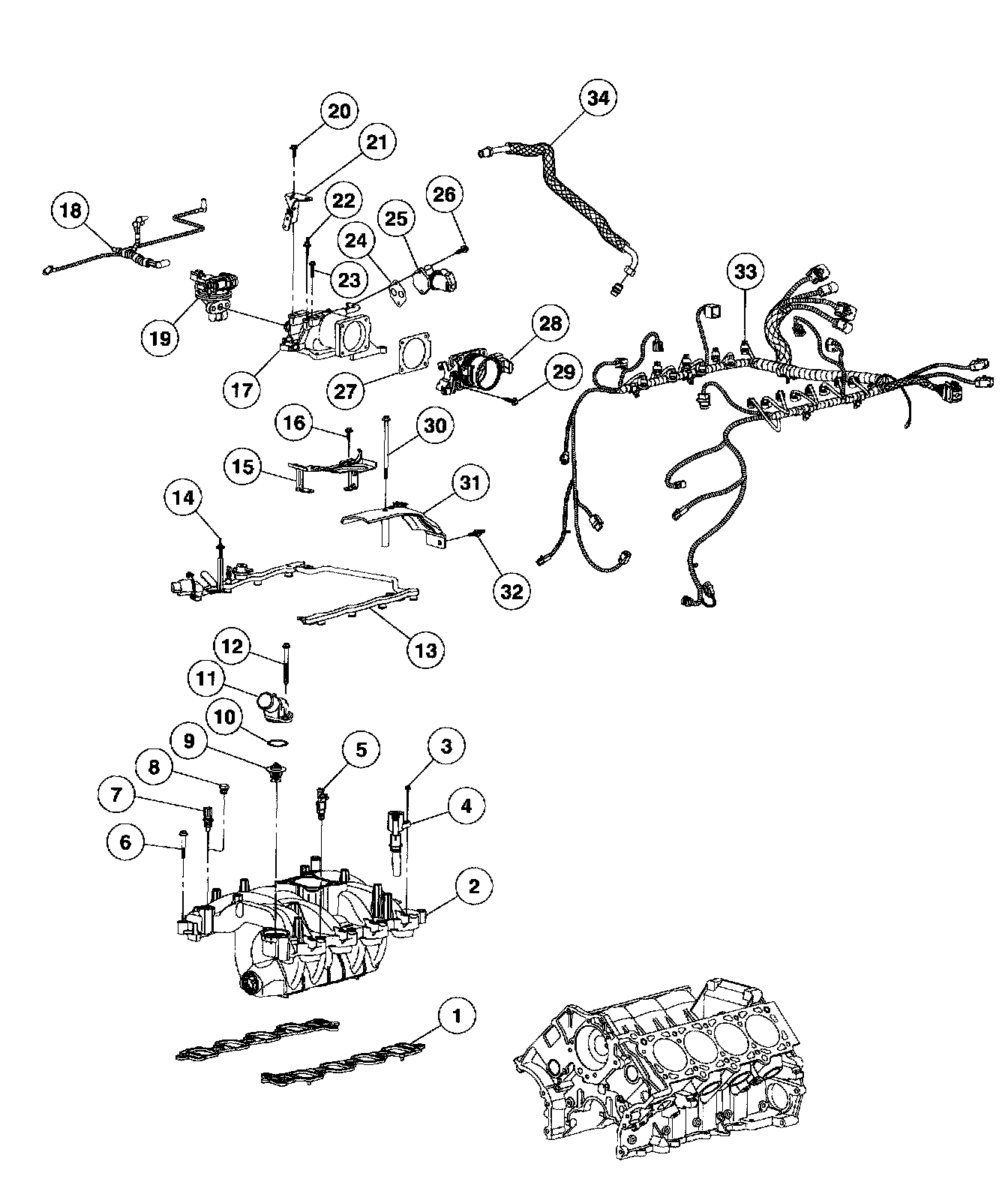

Part 1 Of 2:




Part 2 Of 2:

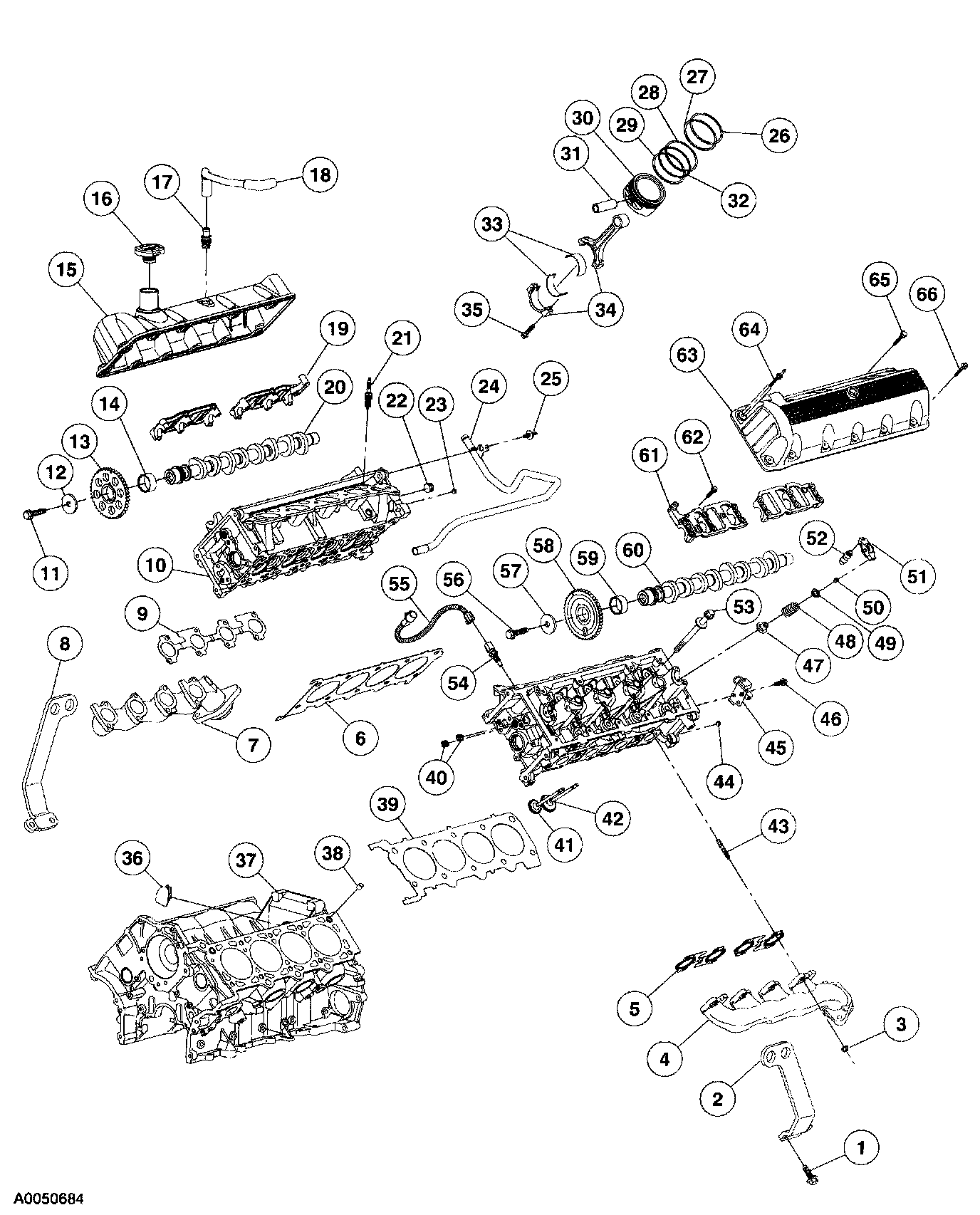

Part 1 Of 3:




Part 2 Of 3:




Part 3 Of 3:
