Cable and Conduit - Rear

Parking Brake Cable-Rear

Removal
1. Release the parking brake control, using the parking brake release handle.

2. WARNING: The electrical power to the air suspension system must be shut off prior to hoisting, jacking or towing an air suspension vehicle. This can be accomplished by turning off the air suspension switch located in the luggage compartment. Failure to do so can result in unexpected inflation or deflation of the air springs, which can result in shifting of the vehicle during these operations.

Raise and support the vehicle.

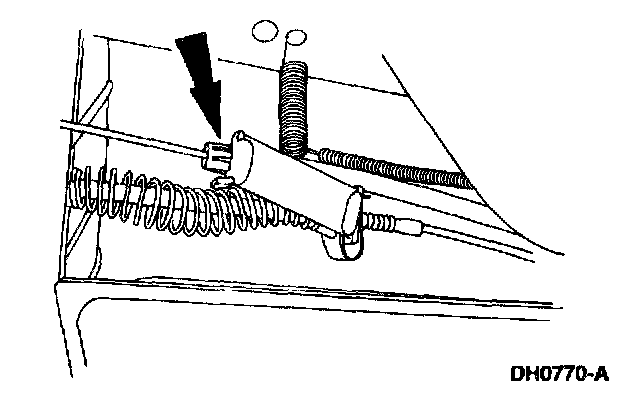

3. Pull the parking brake adjuster clip downward.
4. Lower the vehicle.
5. Apply the parking brake control fully.
6. Raise the vehicle.

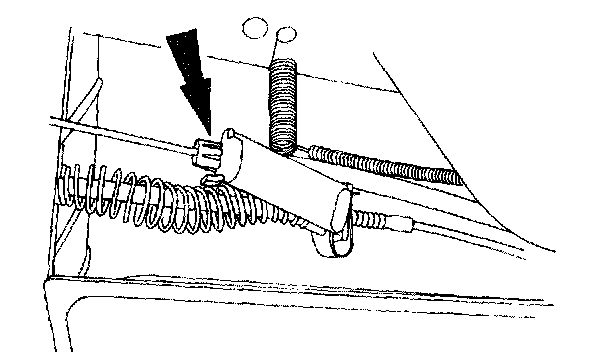

7. Push up on the parking brake adjuster clip to lock the adjuster.
8. Lower the vehicle.
9. Release the parking brake control, using the parking brake release handle.
10. Raise the vehicle.





11. Disconnect the front parking brake cable and conduit from the parking brake rear cable and conduit at the cable connector.

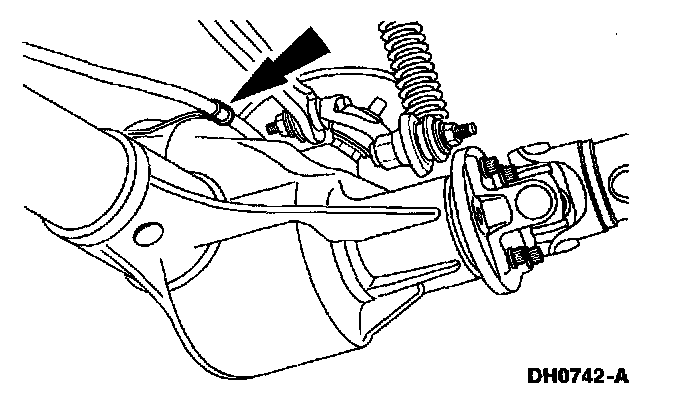

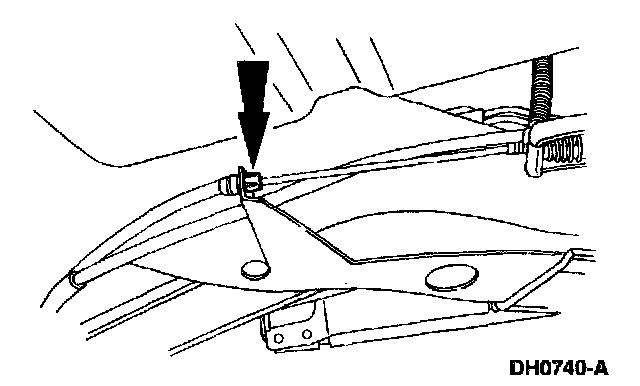

12. Press the retaining tabs, and remove the RH parking brake rear cable and conduit from the frame bracket.





13. Disconnect the LH parking brake rear cable and conduit retainer from the cable adjuster.





14. Remove the RH parking brake rear cable and conduit retainer bolts.





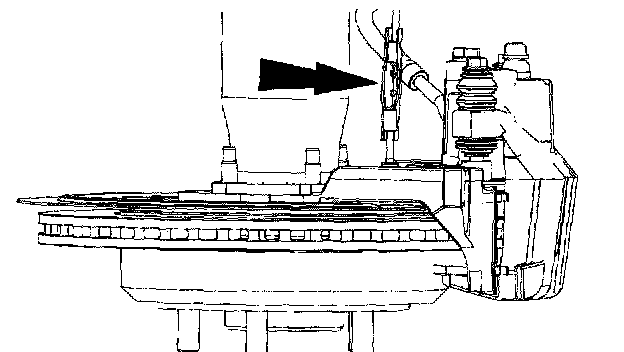

15. Disconnect the parking brake rear cable and conduit from the parking brake cable connector.

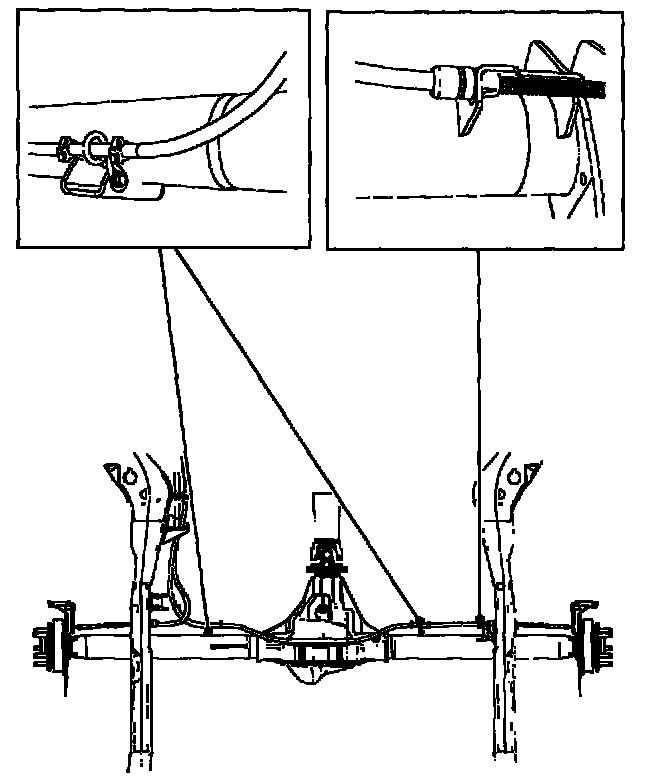

16. Unclip the parking brake rear cable and conduit from the axle housing.
17. Remove the parking brake rear cable and conduit.

Installation





1. Connect the parking brake rear cable and conduit to the parking brake cable connector.





2. Clip the RH parking brake rear cable and conduit to the axle housing.





3. Install the RH parking brake rear cable and conduit retainer bolts.





4. Install the RH parking brake rear cable and conduit to the Came bracket.





5. Connect the LH parking brake rear cable and conduit retainer to the cable adjuster.





6. Connect the front parking brake cable and conduit to the parking brake rear cable and conduit at the cable connector.
7. Adjust the cable tensions.
8. Lower the vehicle.
9. Turn the air suspension switch to the ON position.
