Cable and Conduit - Front

Parking Brake Cable-Front

Removal and Installation
1. Release the parking brake control, using the parking brake release handle.

2. WARNING: The electrical power to the air suspension system must be shut off prior to hoisting, jacking or towing an air suspension vehicle. This can be accomplished by turning off the air suspension switch located in the luggage compartment. Failure to do so can result in unexpected inflation or deflation of the air springs, which can result in shifting of the vehicle during these operations.

Turn the air suspension switch to the OFF position.
3. Raise the vehicle on a hoist.





4. Pull the parking brake adjuster clip downward.
5. Apply the parking brake control fully.





6. Push up on the parking brake adjuster clip to lock the adjuster.
7. Release the parking brake control, using the parking brake release handle.





8. Disconnect the front parking brake cable and conduit from the LH parking brake rear cable and conduit at the cable connector.

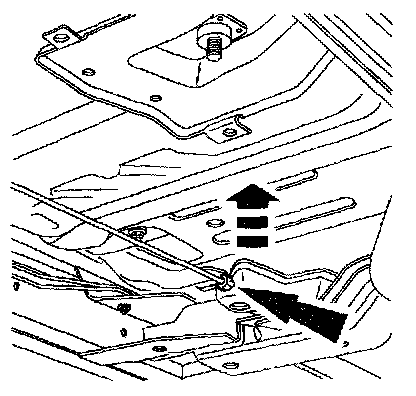

9. Press the retaining tabs, and remove the front parking brake cable and conduit retainer from the bracket.

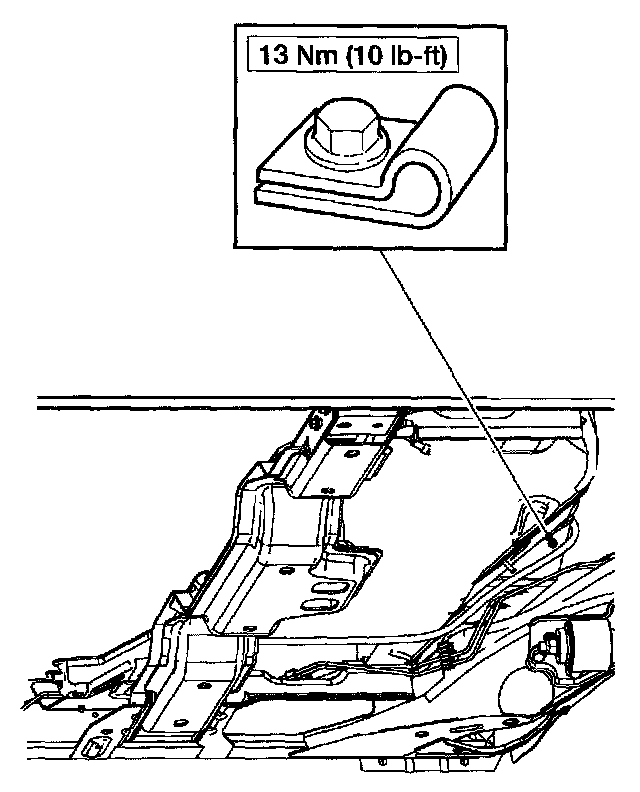

10. Remove the parking brake cable bracket.
11. Lower the vehicle.





12. Remove the pushpins, and remove the close out panel.





13. Disconnect the front parking brake cable and conduit from the parking brake control.
14. Push the front parking brake cable and conduit down, and remove the front parking brake cable and conduit.
15. To install, reverse the removal procedure.
^ Adjust the parking brake cable tension.
