Power Mirror Switch: Service and Repair

REMOVAL







1. Lift the front of the window regulator switch plate from the front door trim panel and position the switch plate aside.

CAUTION: Use a shop towel or similar material between the tool and the front door trim panel or damage to the front door trim panel may occur.

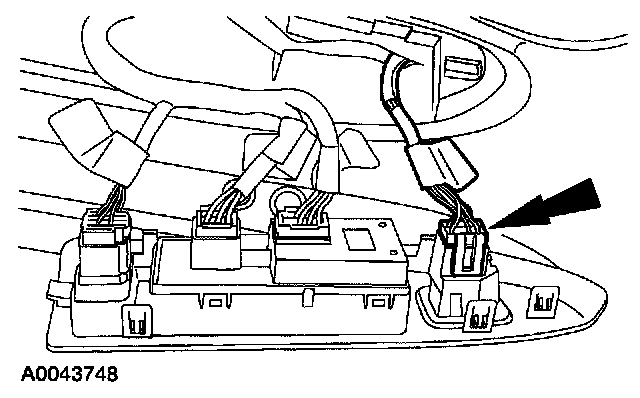

2. Disconnect the exterior mirror control switch electrical connector.

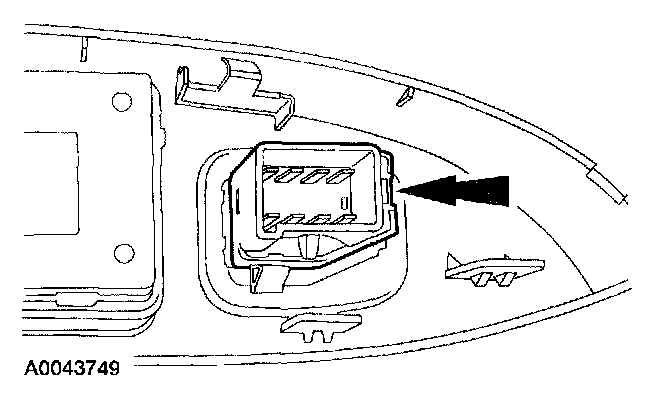

3. Remove the exterior rear view mirror control switch.
- Release the two locking tabs.

INSTALLATION
1. To install, reverse the removal procedure.
