PINPOINT TEST C: THE POWER SEAT DOES NOT MOVE HORIZONTALLY/VERTICALLY - PASSENGER SEAT

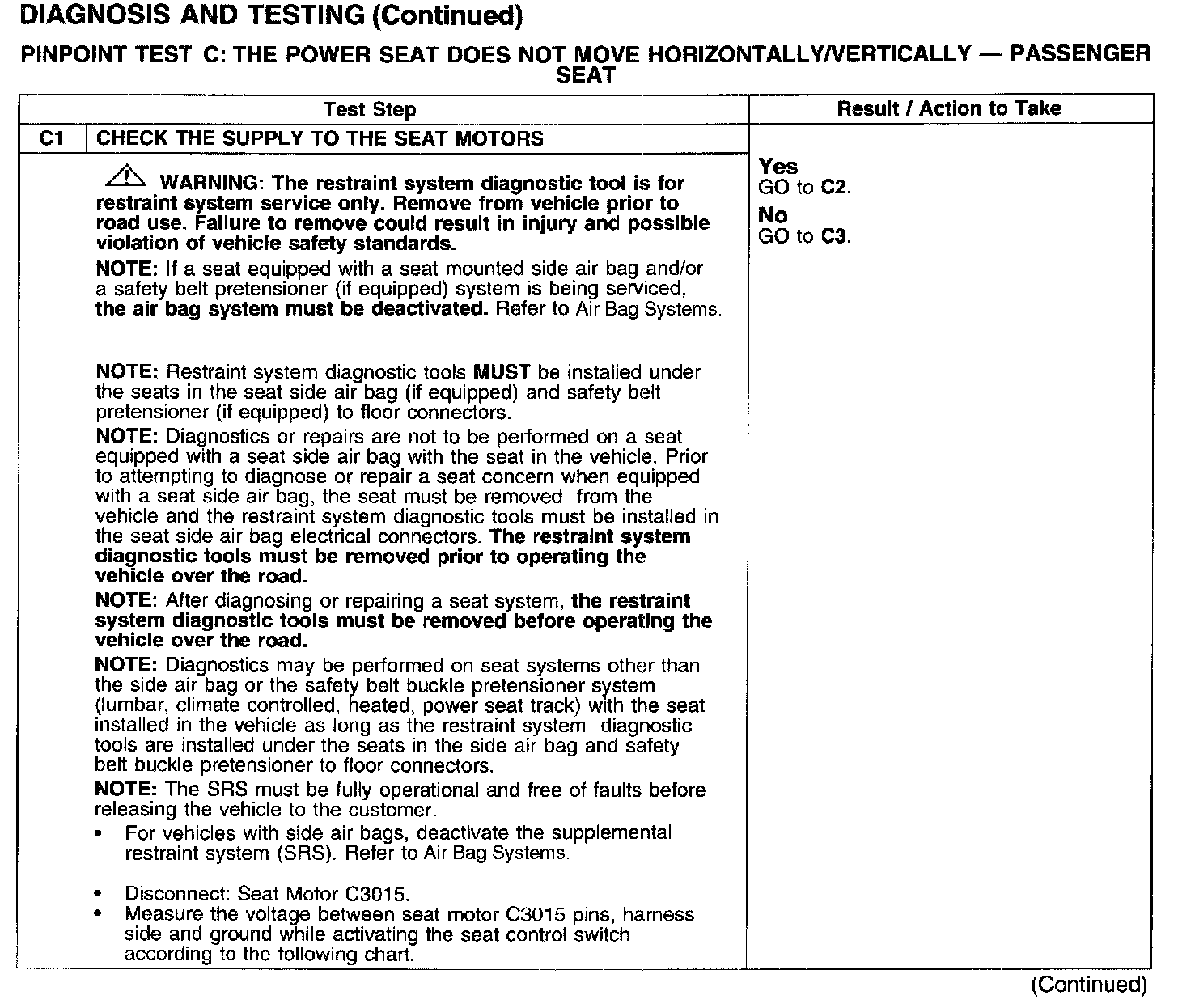

Test C1:

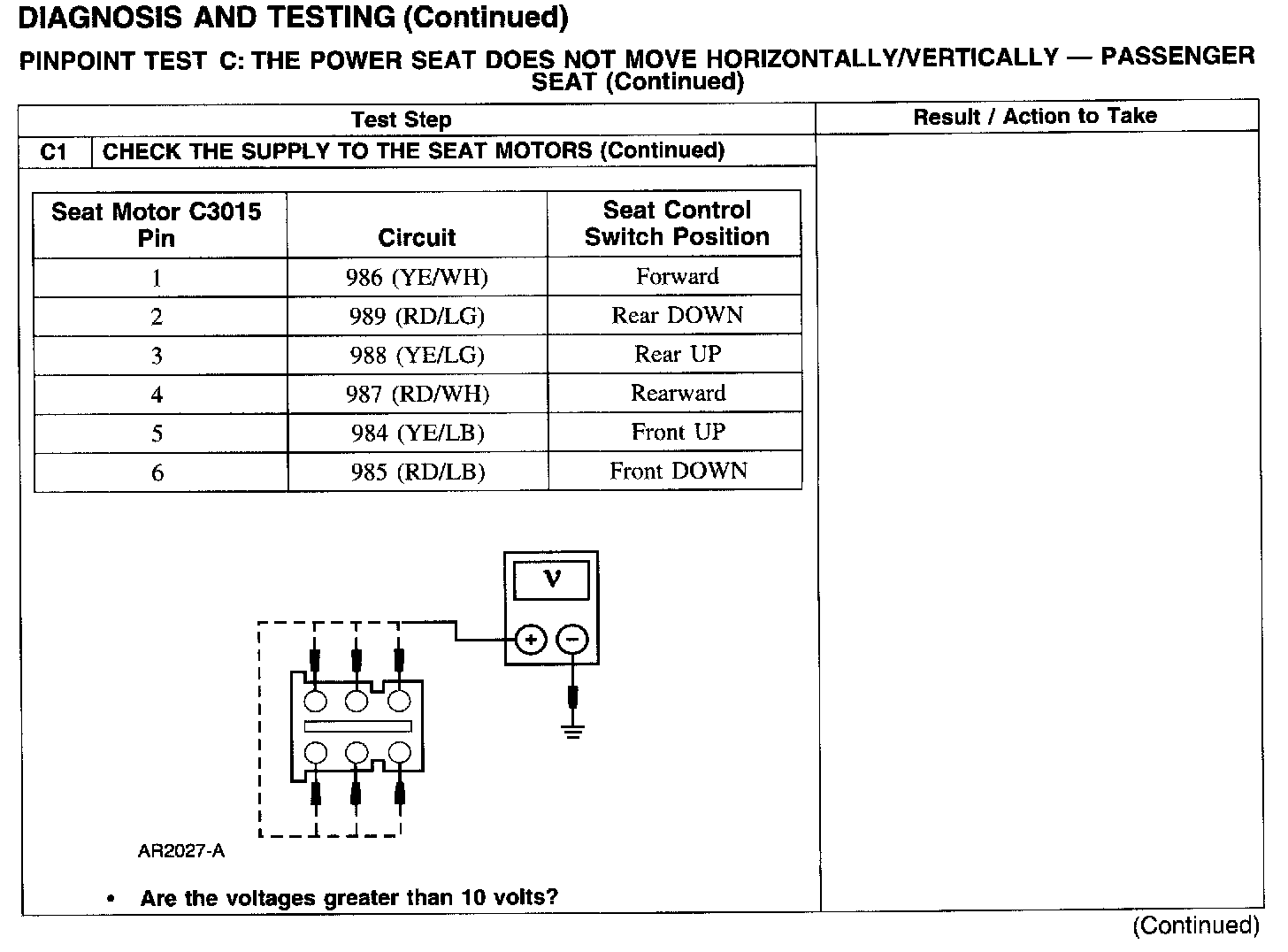

Test C1 Continued:

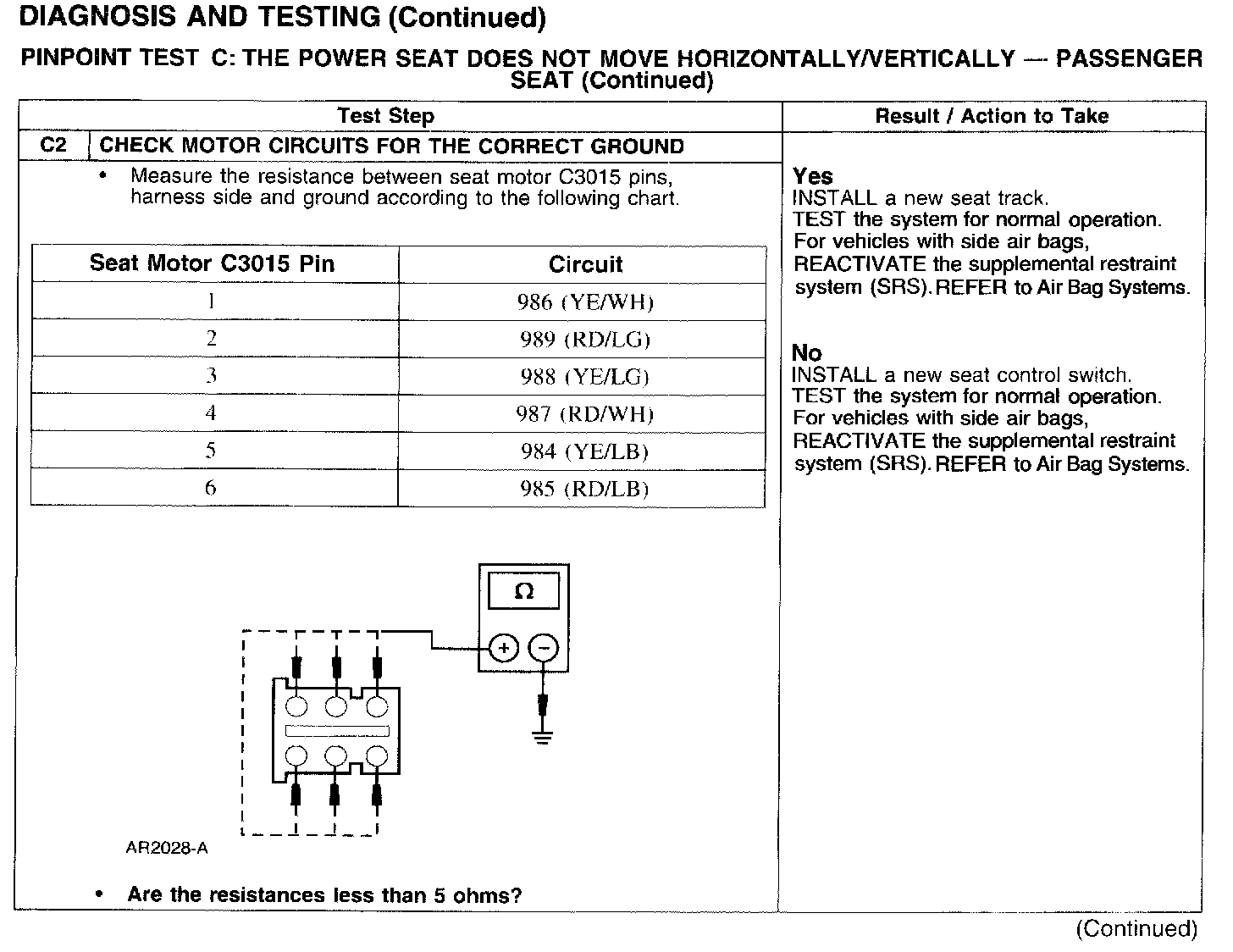

Test C2:

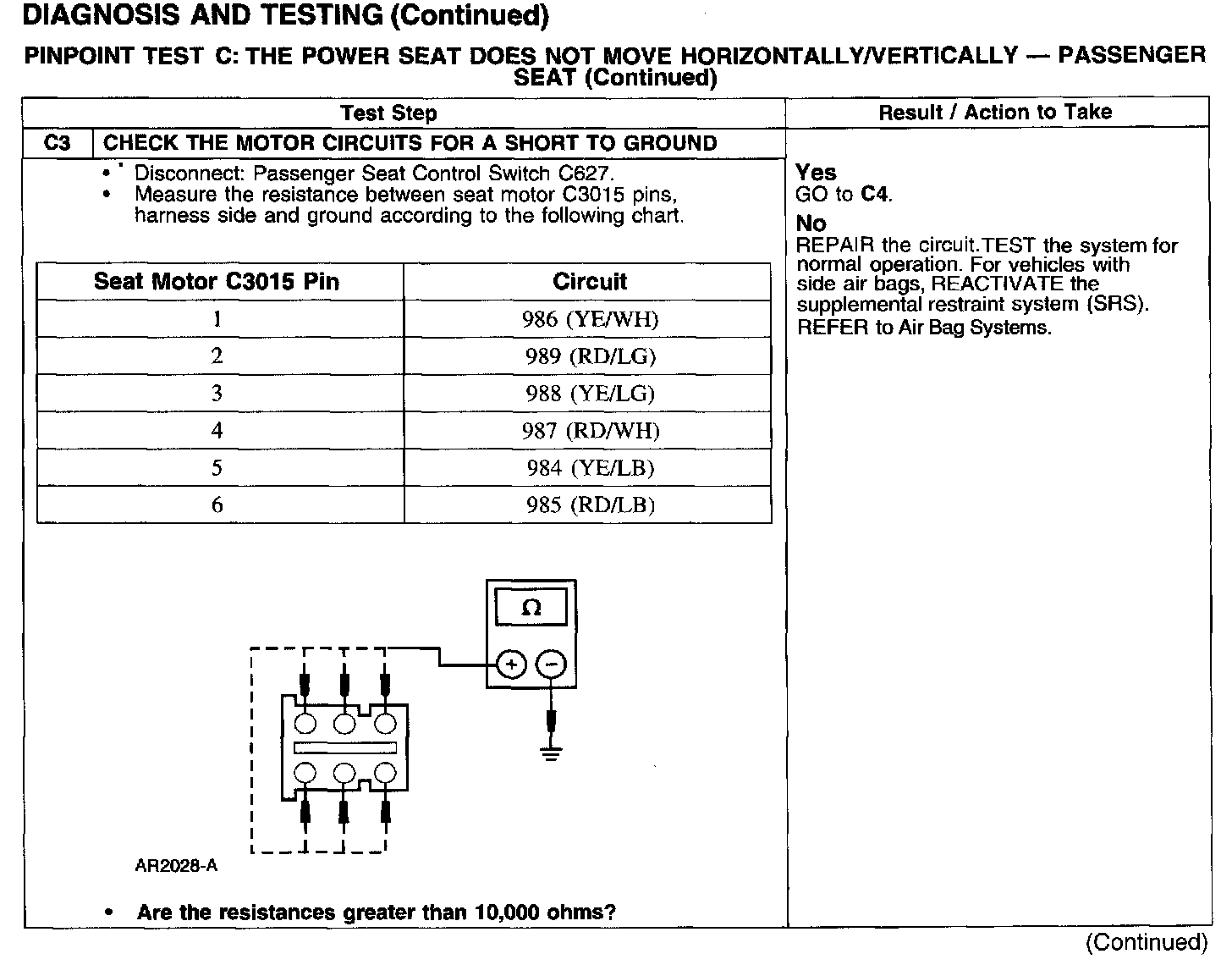

Test C3:

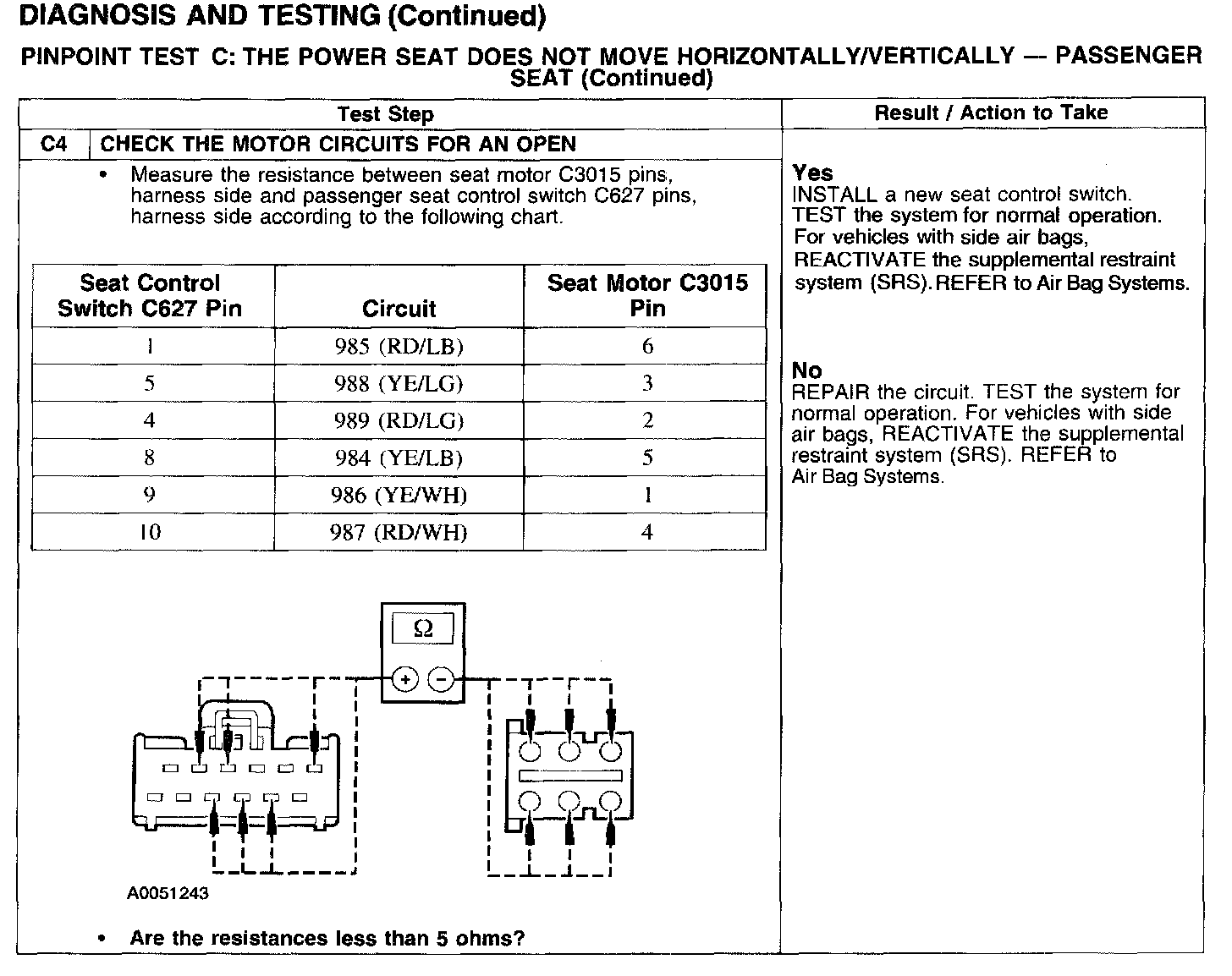

Test C4:
