Test B
PINPOINT TEST B: THE POWER SEAT DOES NOT MOVE HORIZONTALLY/VERTICALLY - DRIVER SEAT

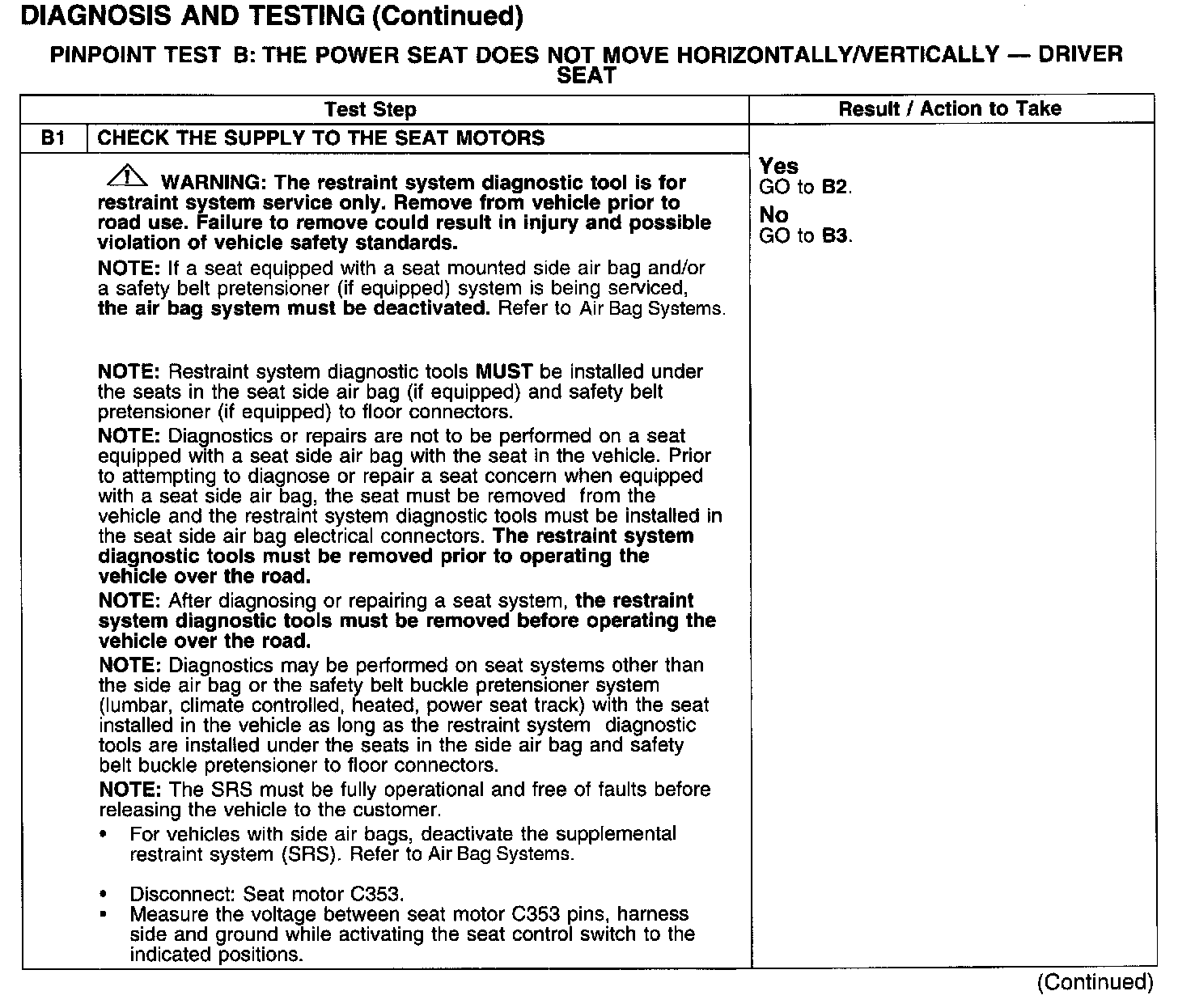

Test B1:

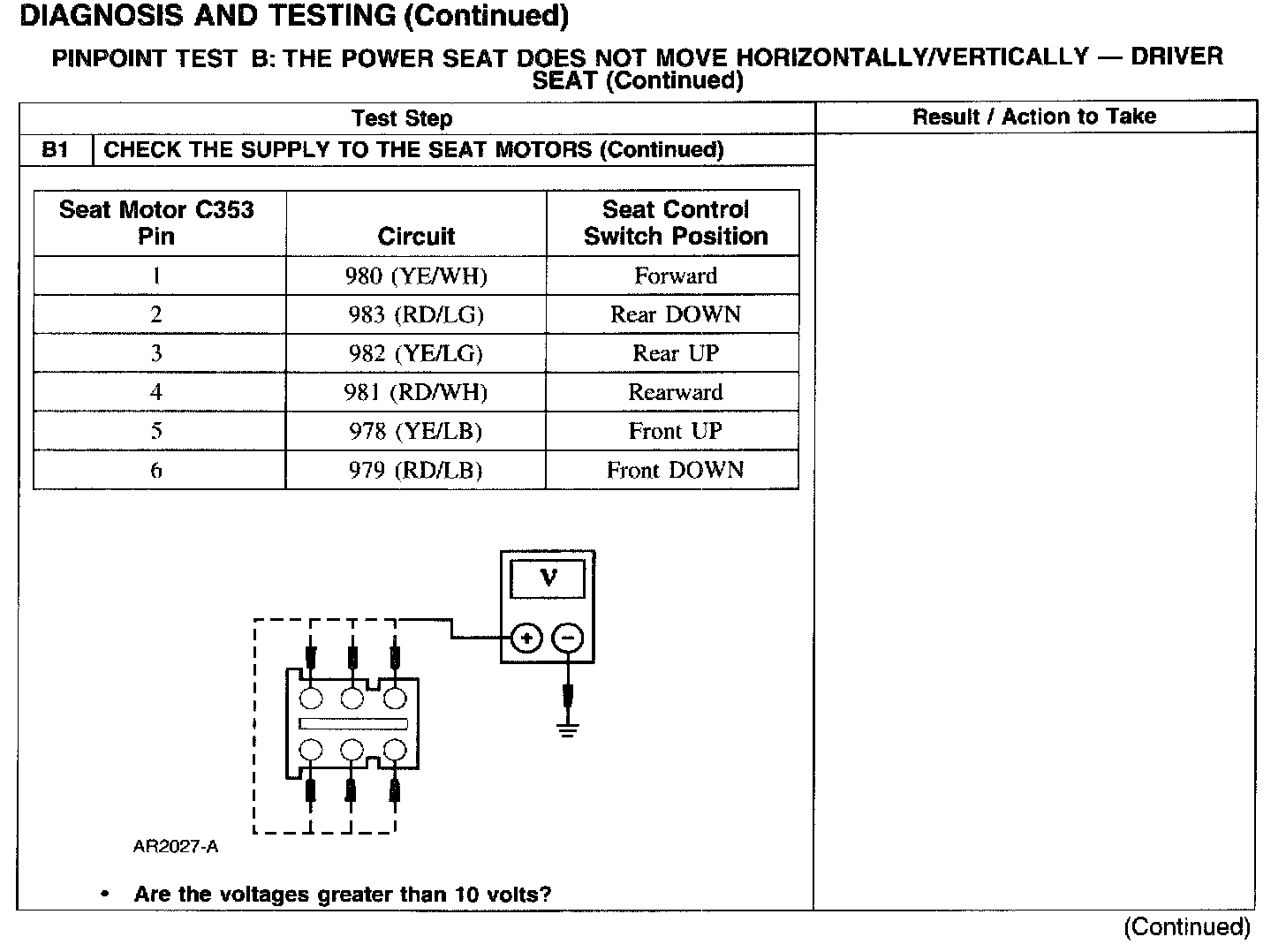

Test B1 Continued:

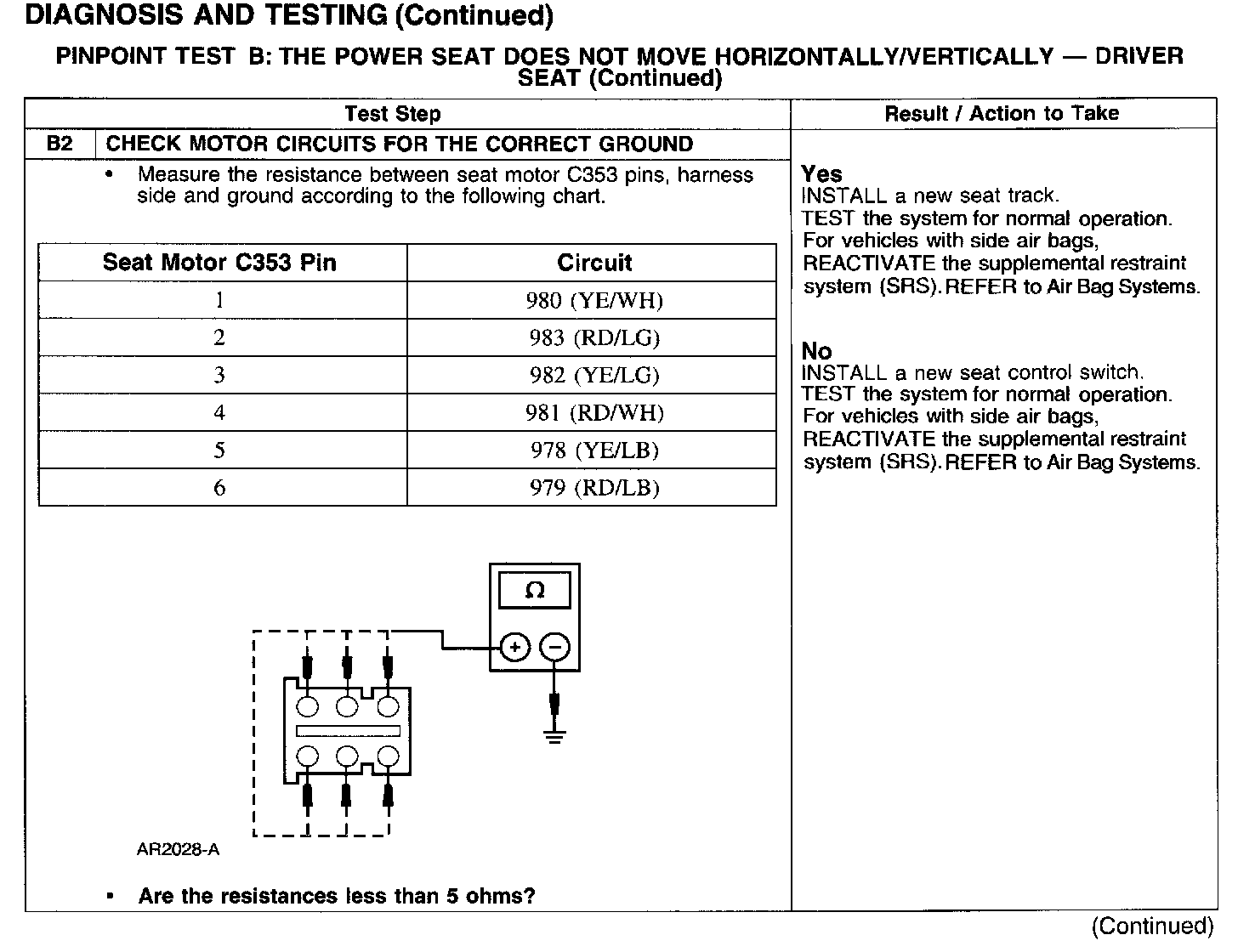

Test B2:

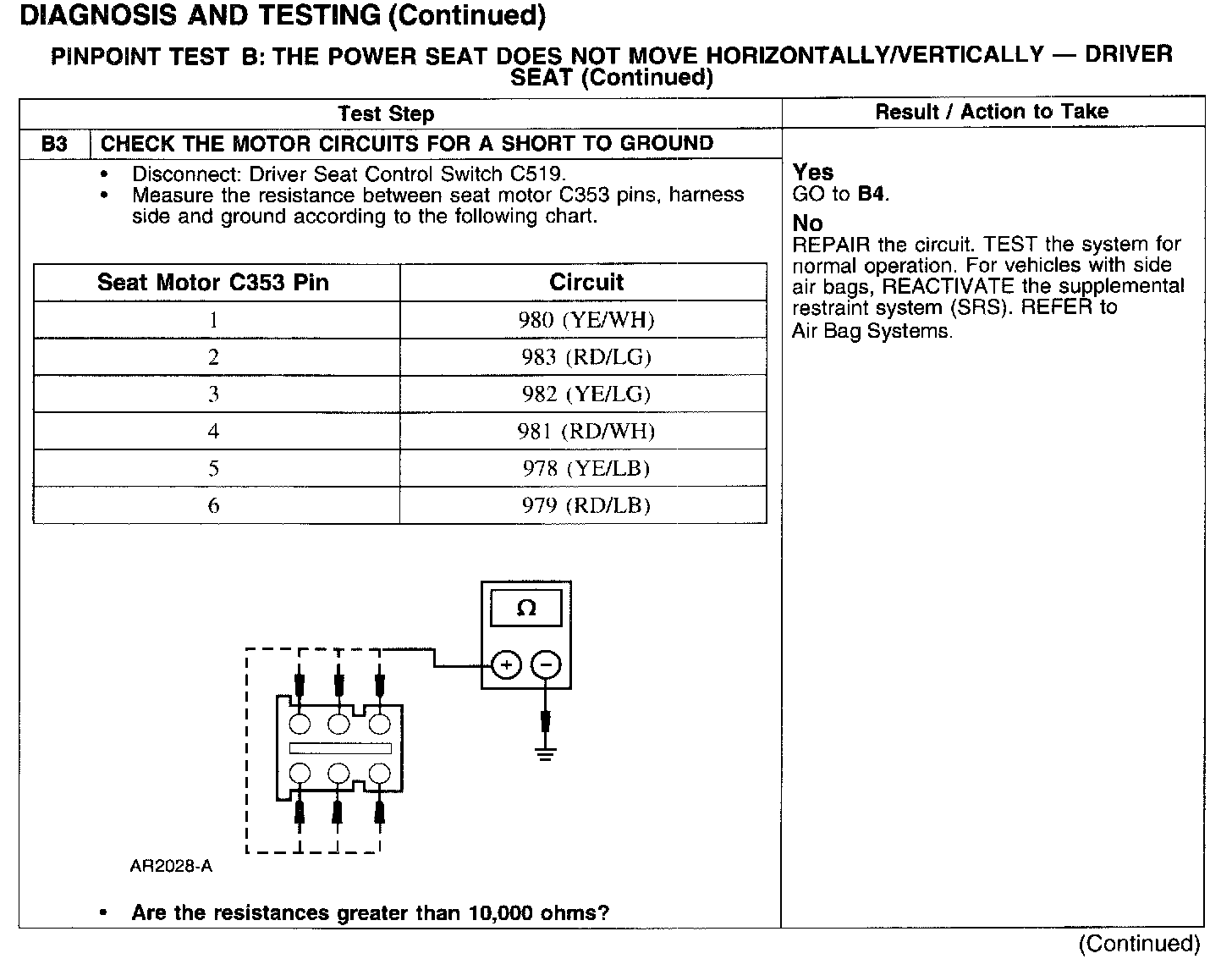

Test B3:

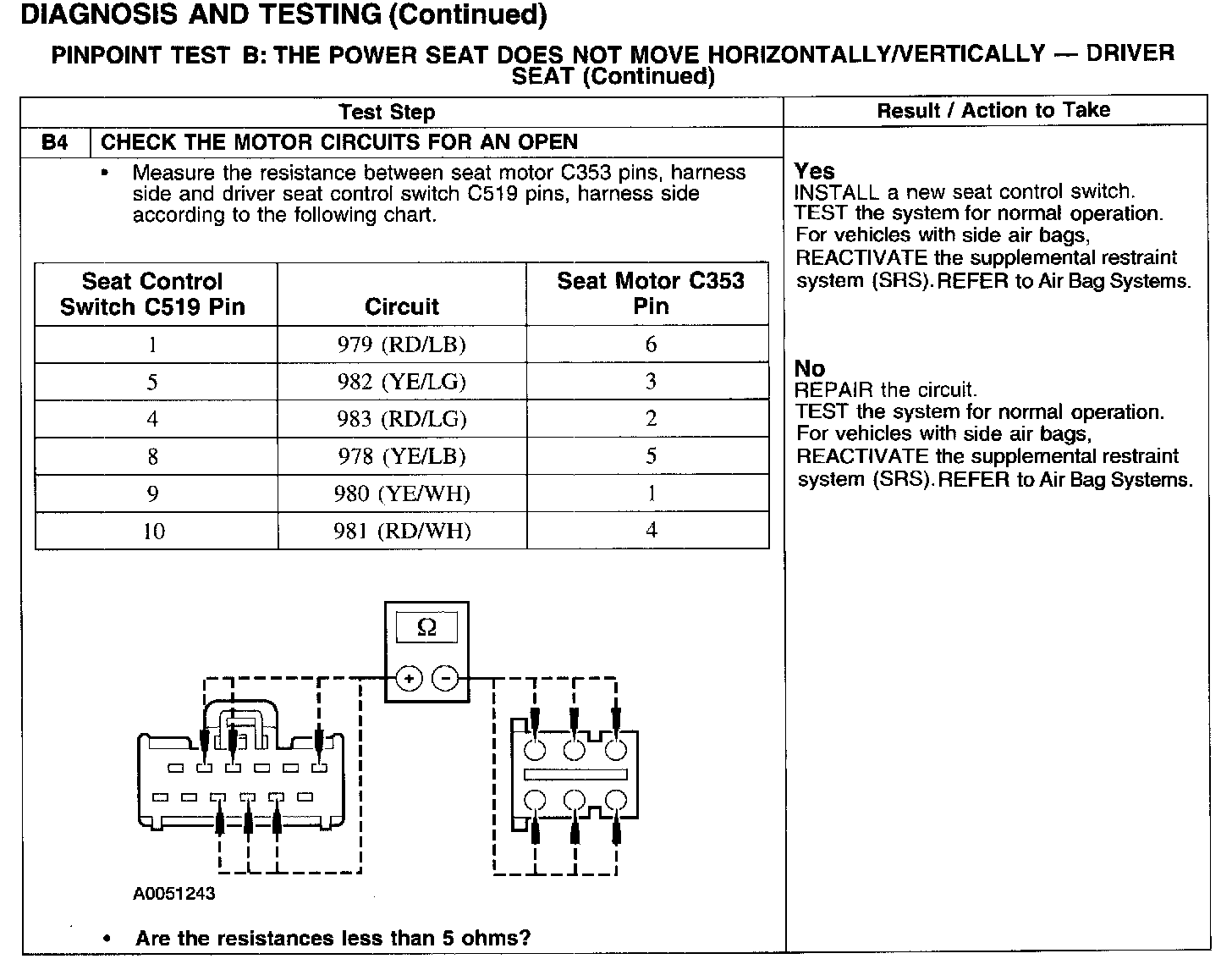

Test B4:
