Home >> Mercury >> 2003 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Pinpoint Tests >> Test A

Test A

PINPOINT TEST A: The POWER SEAT IS INOPERATIVE

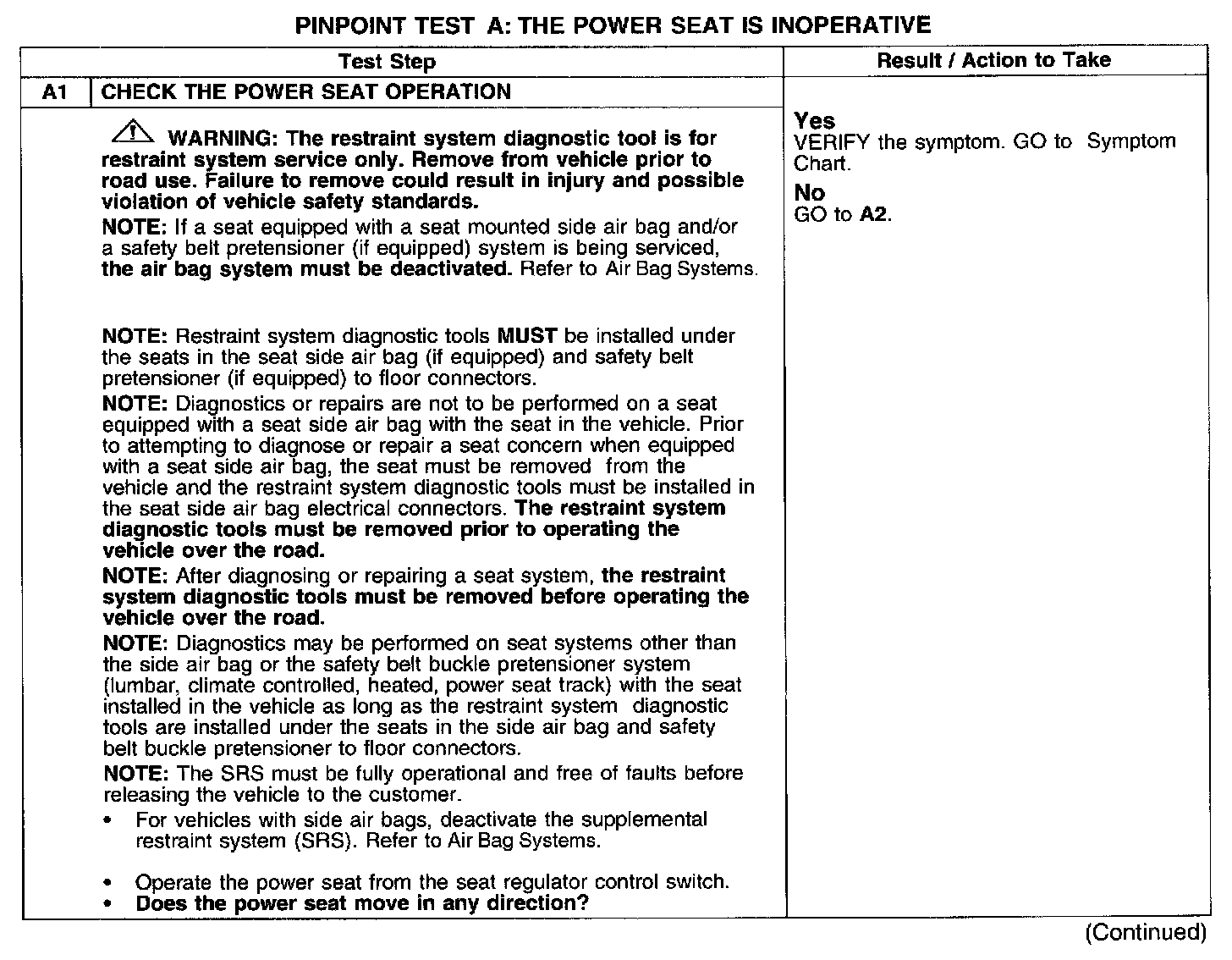

Test A1:

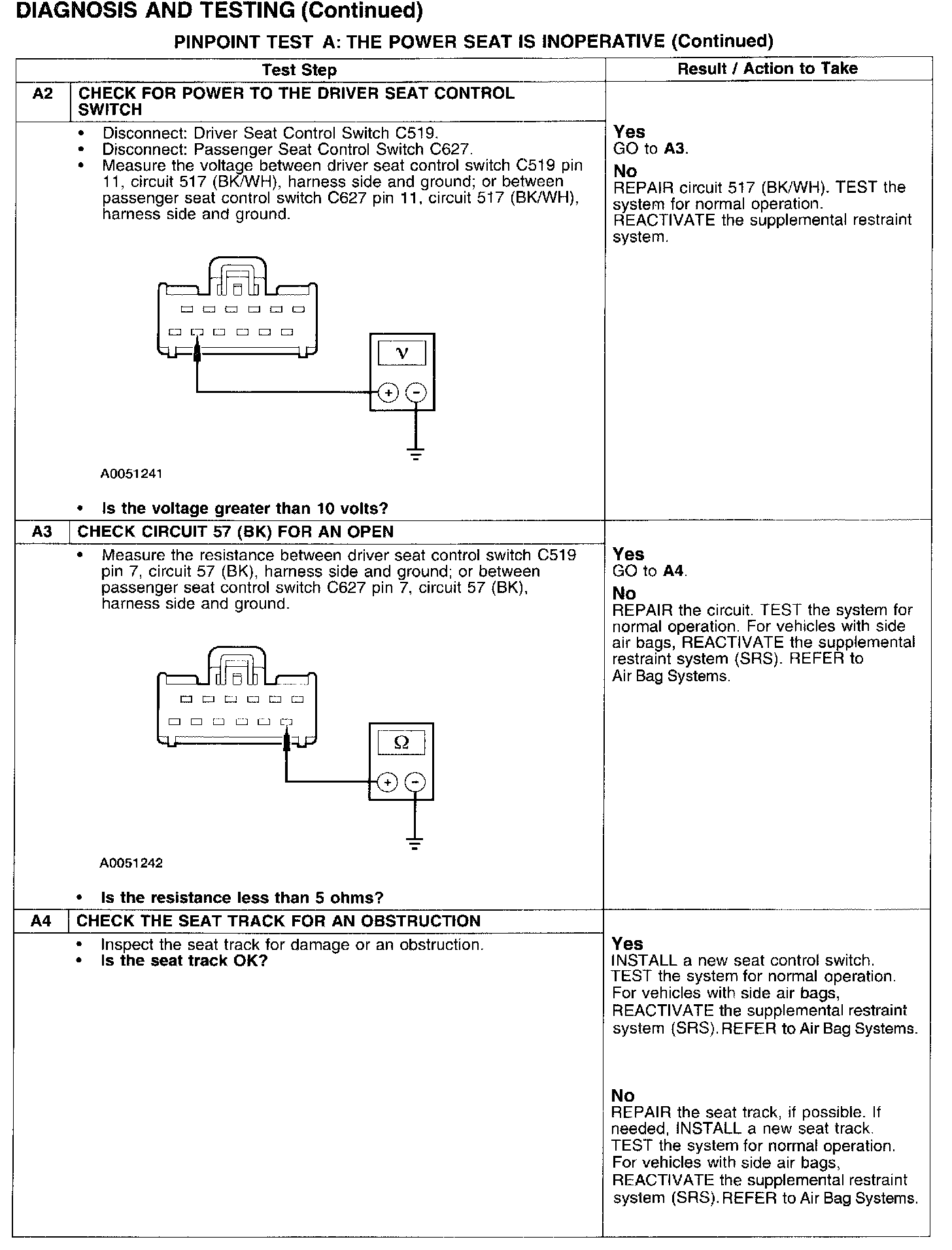

Test A2-A4:
