Roof Opening Panel

REMOVAL
1. Remove the headliner.







2. Disconnect the drain tubes.

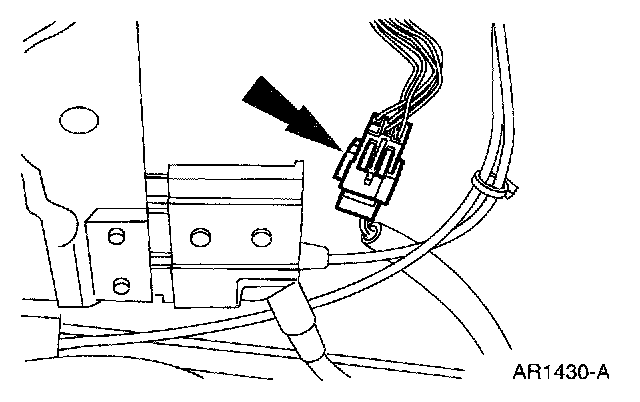

3. Disconnect the electrical connector.

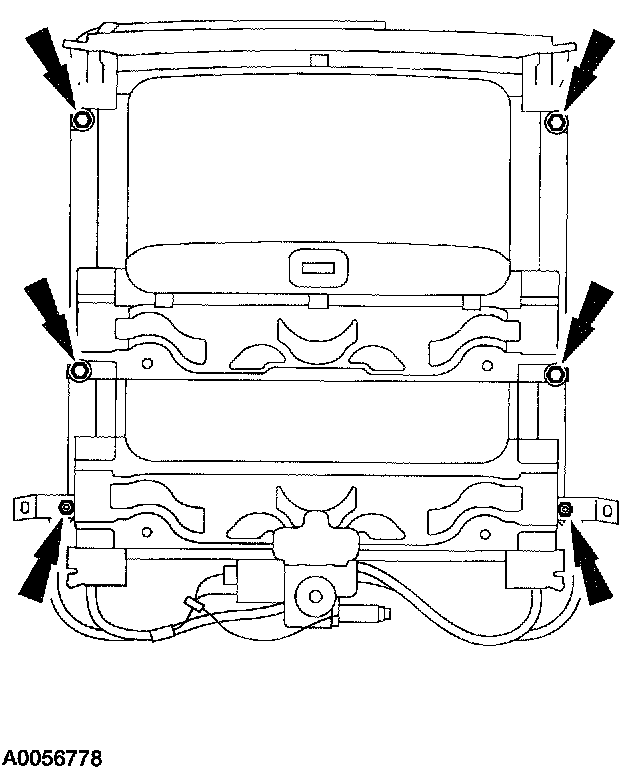

4. Remove the roof Opening panel rail bolts and screws.

CAUTION: Support the roof opening panel.


5. Remove the roof opening panel

INSTALLATION

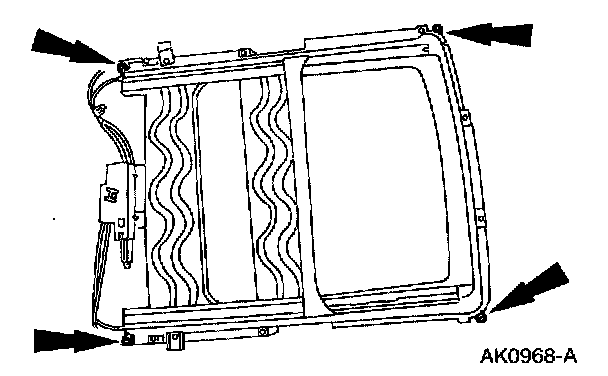

1. Transfer the necessary components.
2. Position the roof opening panel.

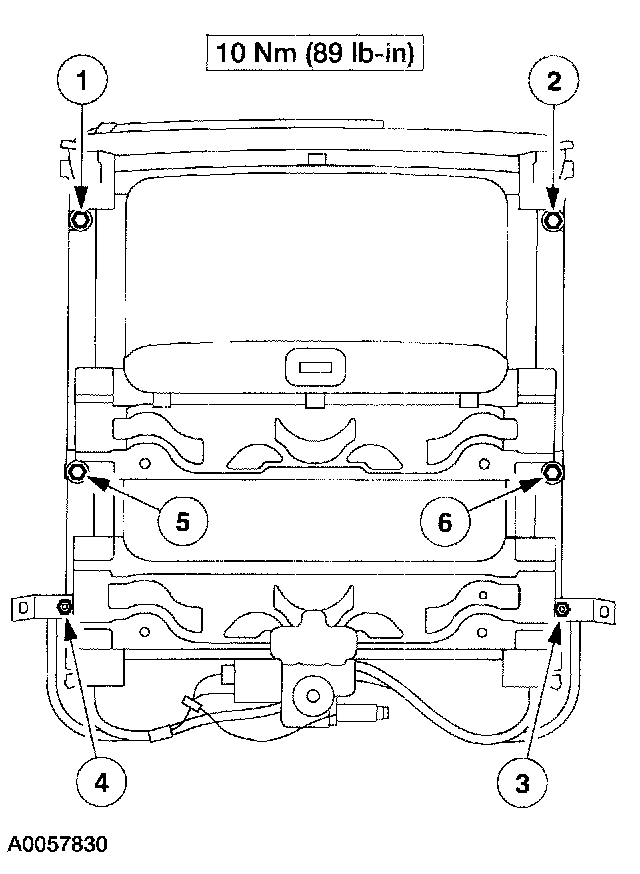

3. Install the roof opening panel rail bolts in the sequence shown.







4. Connect the electrical connector.







5. Connect the drain tubes.
6. Install the headliner.
7. Adjust the roof opening panel glass height.
