Test K

PINPOINT TEST K: THE KEYLESS ENTRY KEYPAD ILLUMINATION IS INOPERATIVE

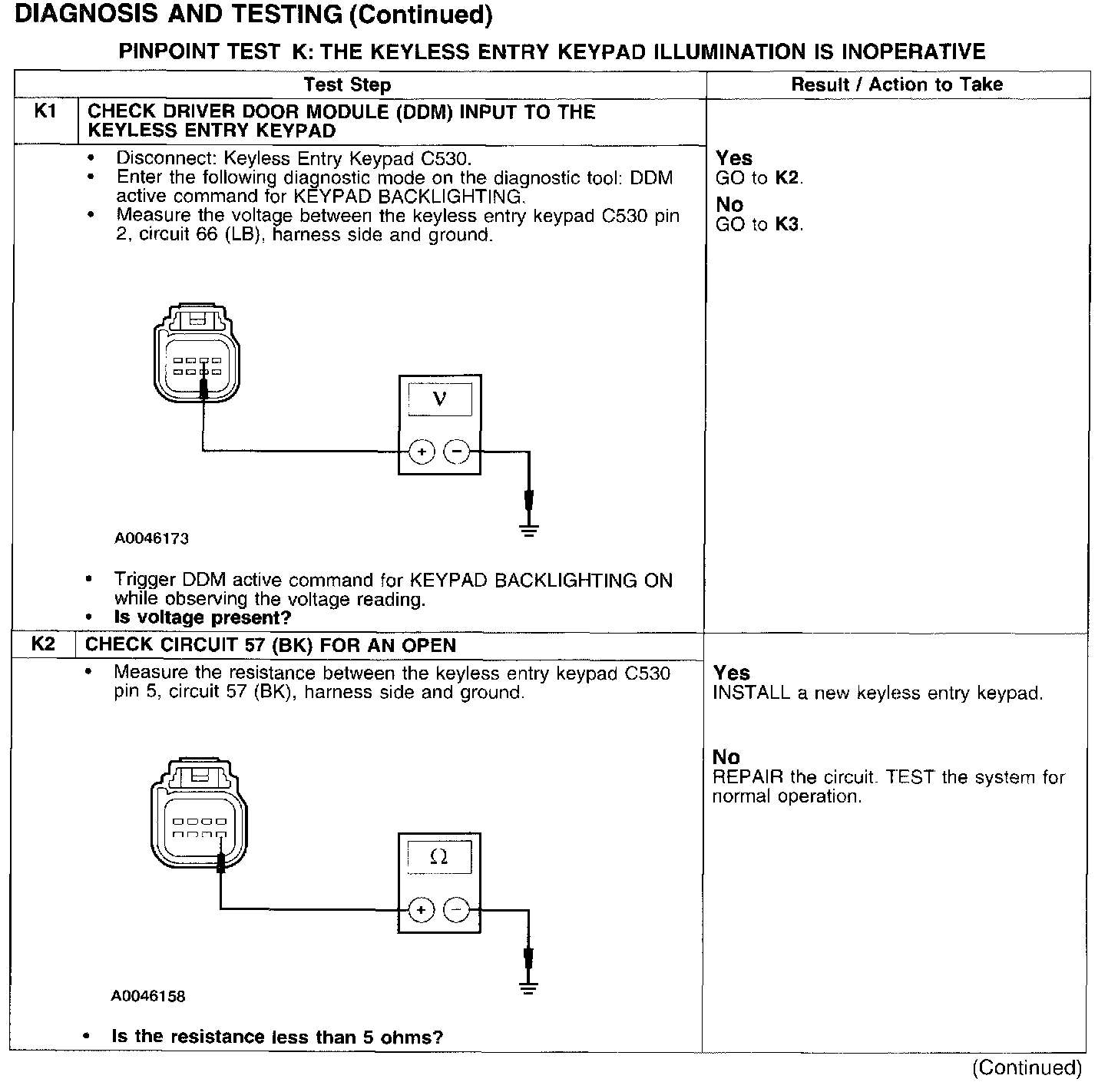

Test K1-K2:

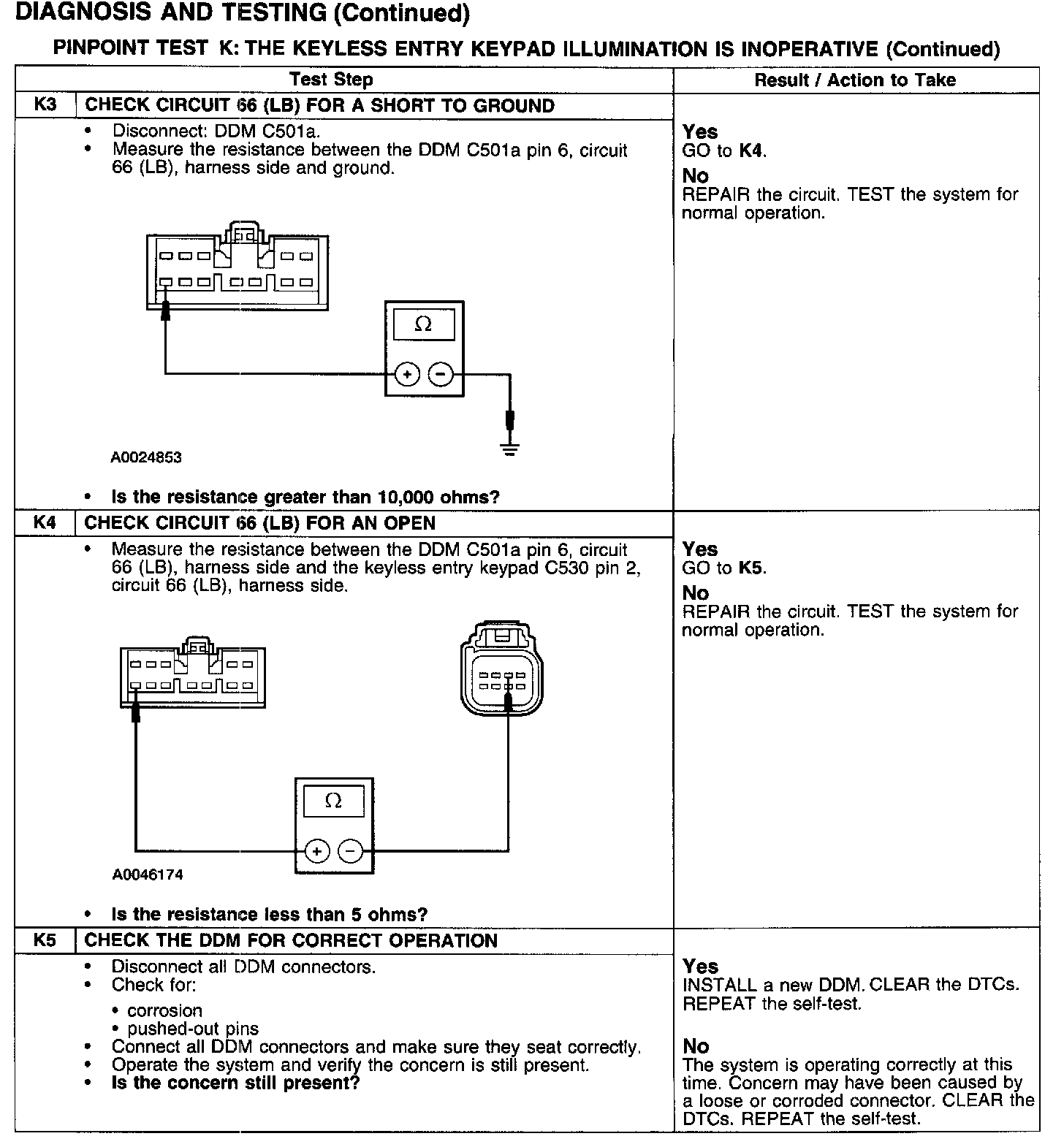

Test K3-K5:
