PINPOINT TEST D: A SINGLE/MORE THAN ONE DOOR LOCK IS INOPERATIVE

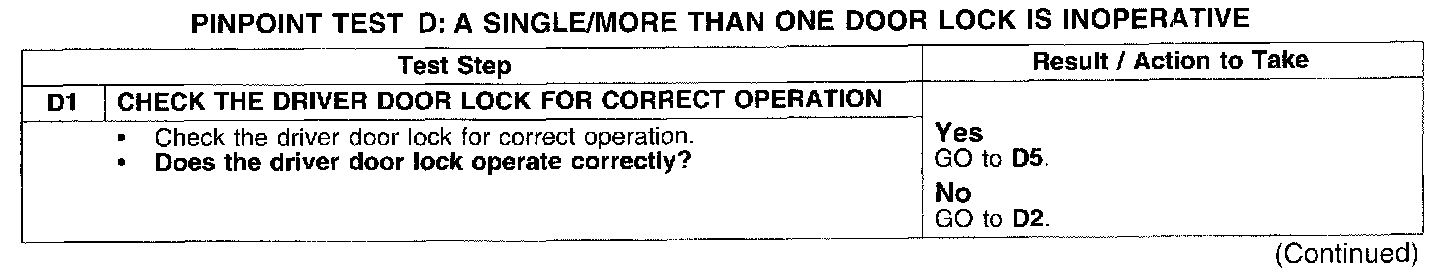

Test D1:

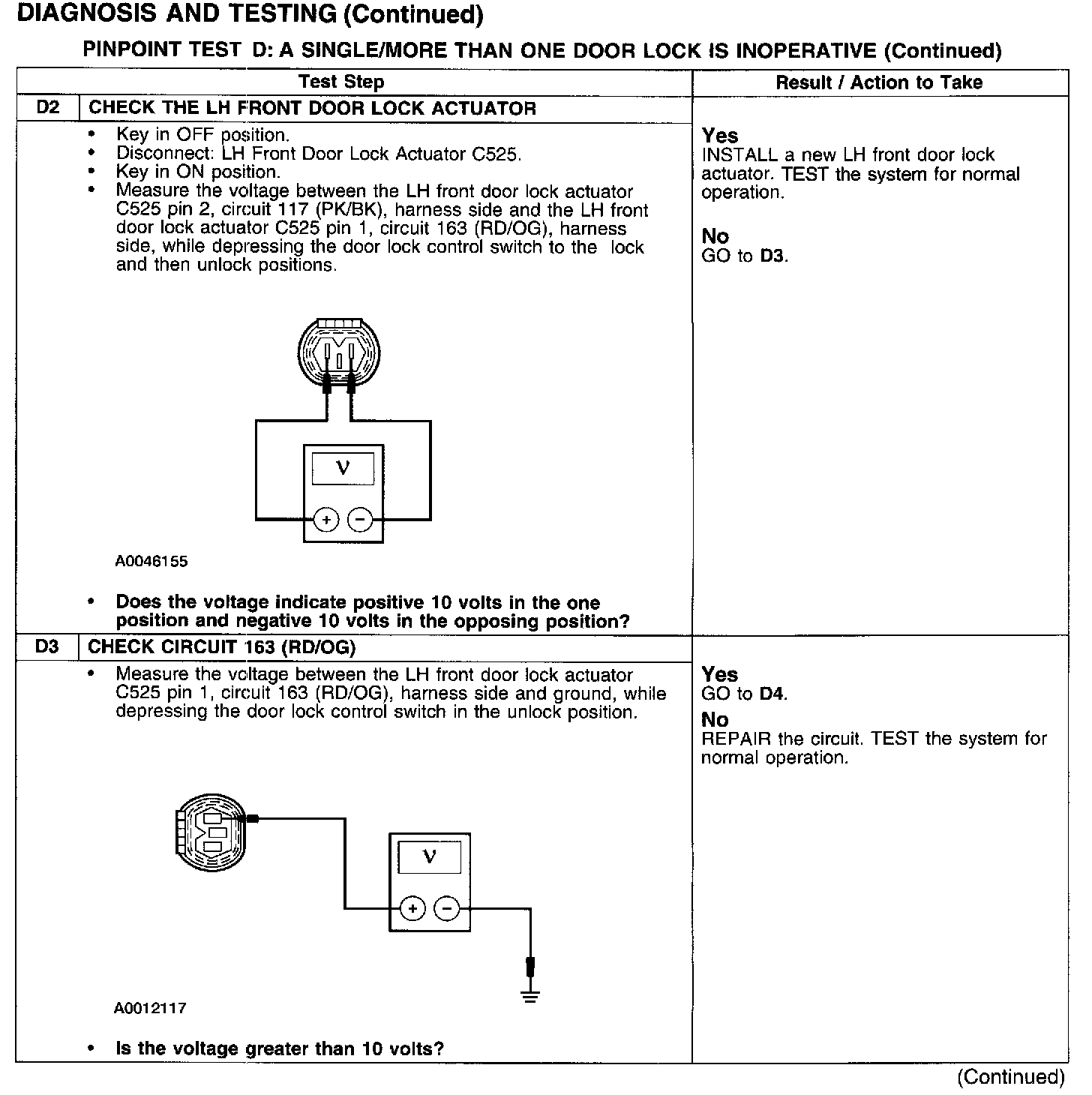

Test D2-D3:

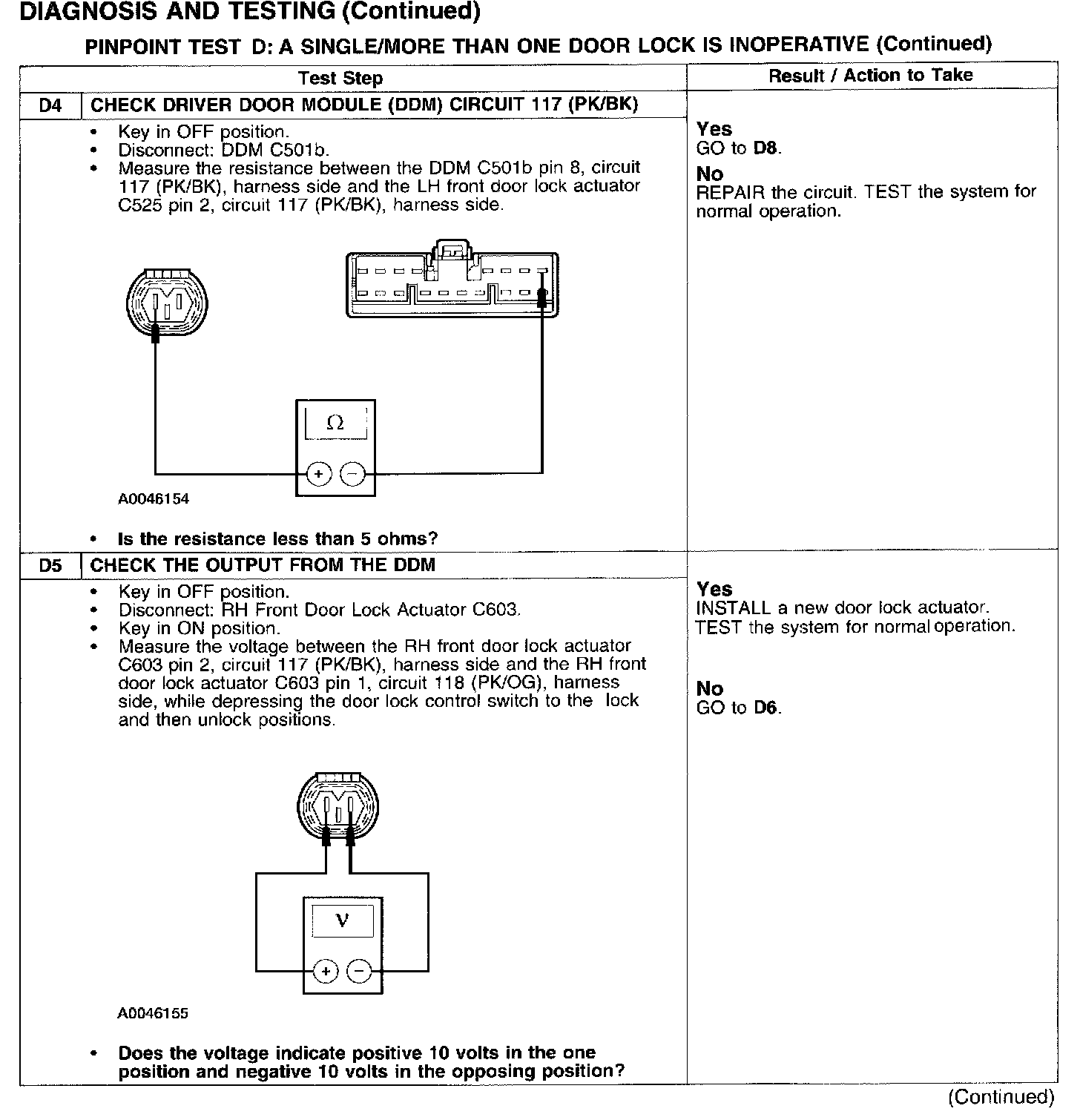

Test D4-D5:

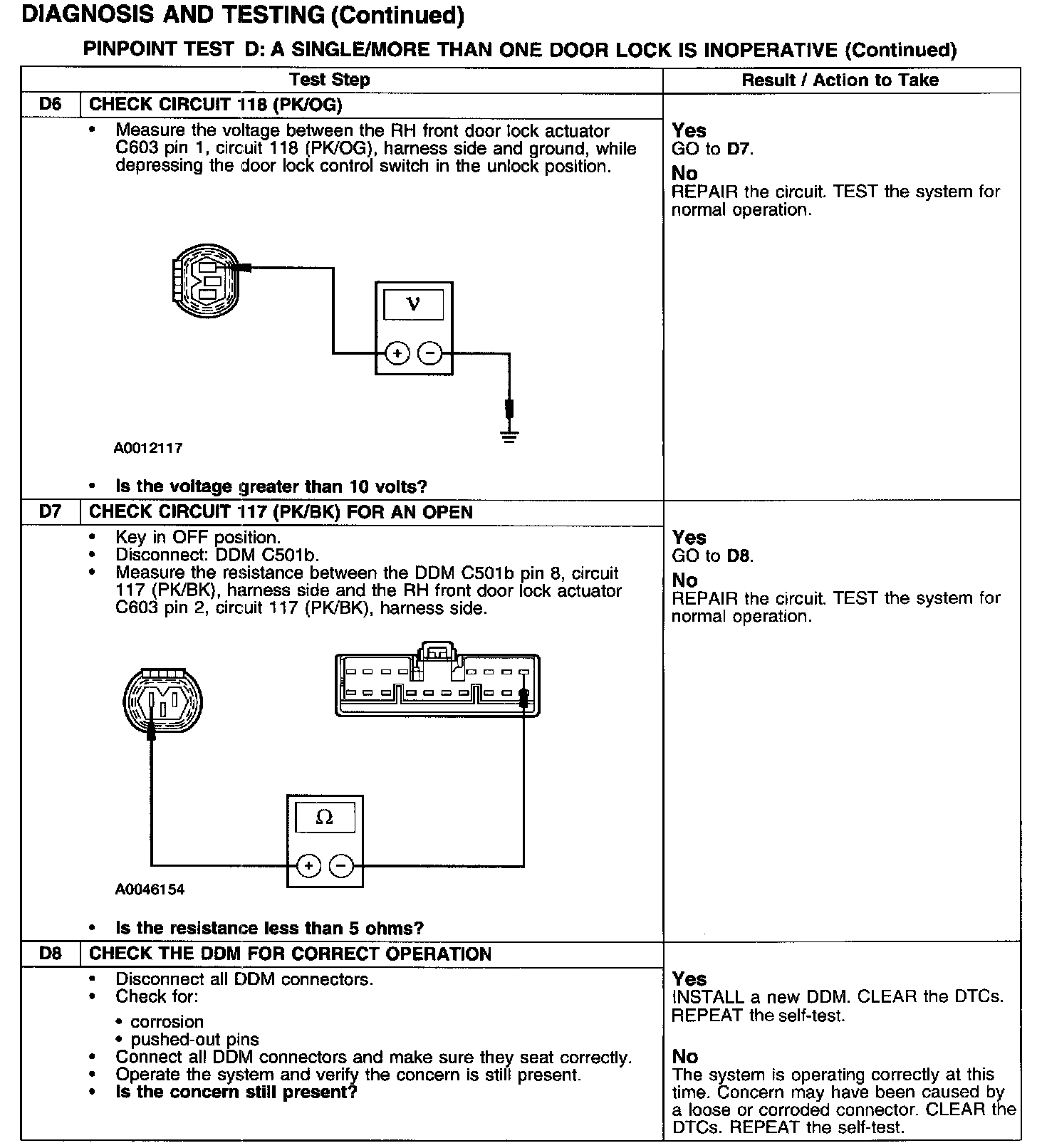

Test D6-D8:
