Door Lock Cylinder: Service and Repair

REMOVAL

NOTE: Individual lock cylinders are repaired by discarding the inoperative lock cylinder and building a new lock cylinder using the appropriate lock repair package. The lock repair package includes a detailed instruction sheet to build the new lock cylinder to the current key code of the vehicle.

1. Remove the exterior front door handle.

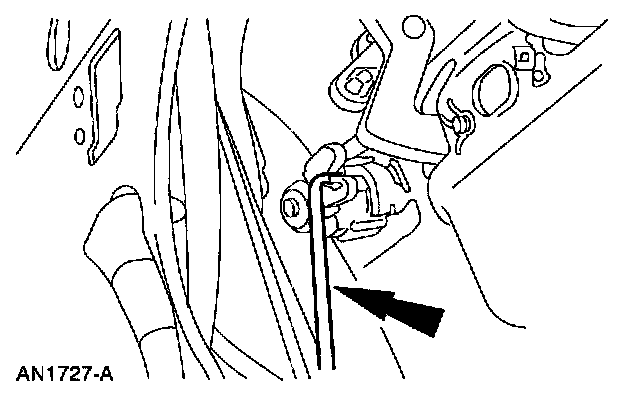

2. Disconnect door lock cylinder actuating rod.







3. Remove the clip and the door lock cylinder.

INSTALLATION
1. To install, reverse the removal procedure.
