Rear Shelf: Service and Repair

REMOVAL
1. Remove the rear quarter trim panels.

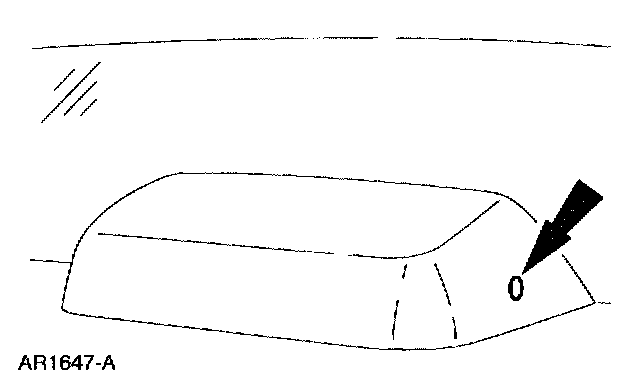

2. Remove the two high mounted stoplamp screws.

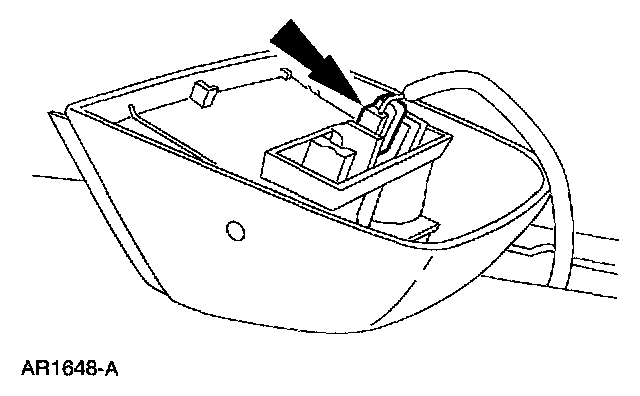

3. Disconnect and remove the high mounted stoplamp.

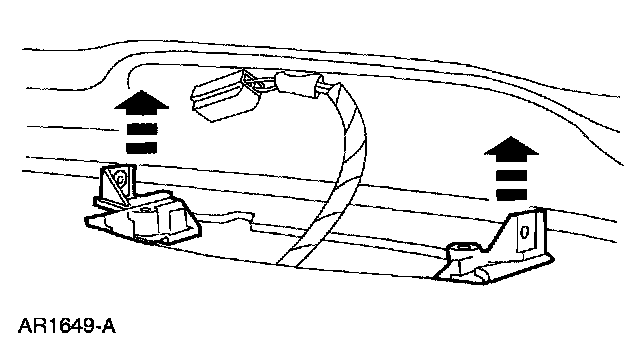

4. Remove the high mounted stoplamp brackets.

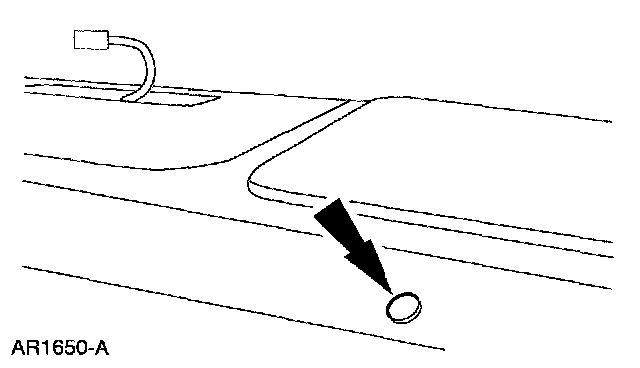

5. Remove the two pin-type retainers.
6. Remove the parcel shelf.

INSTALLATION
1. To install, reverse the removal procedure.
- Check the restraint system for correct operation.
