Overhead Console

REMOVAL

All vehicles
1. Disconnect the battery ground cable.

Vehicles with roof opening panel

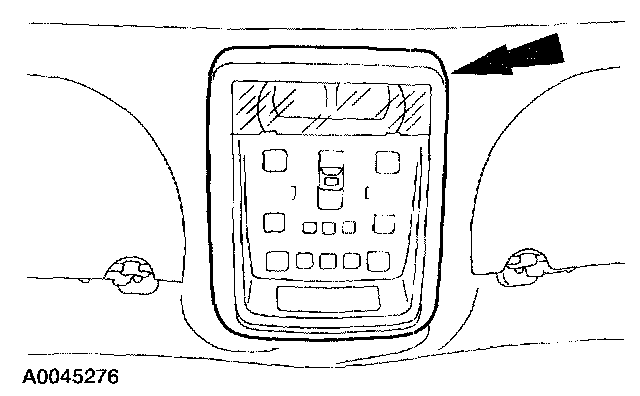

2. Support the headliner at the rear corner of the overhead console and pull down on that corner to remove the overhead console.
- Disconnect the electrical connectors.

CAUTION: The overhead console bracket is supported by the headliner. Failure to follow the removal procedure will damage the headliner.

Vehicles without roof opening panel

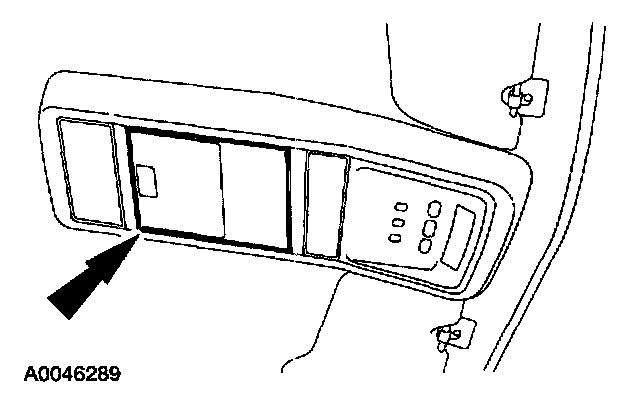

3. Remove the screws.







4. Open the storage compartment and remove the two screws.

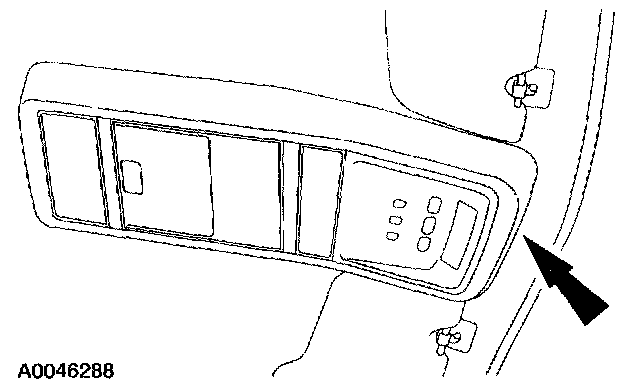

5. Remove the overhead console.
- Disconnect the electrical connectors.

NOTE: Disengage the six clip attachments by first pulling down on the front end of the overhead console and then the rear of the overhead console.

INSTALLATION

All vehicles
1. To install, reverse the removal procedure.
