Floor Console

REMOVAL
1. Remove the floor console finish panel.

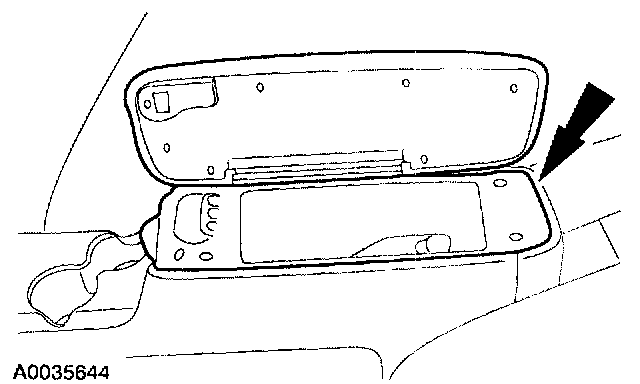

2. Remove the console storage bin.

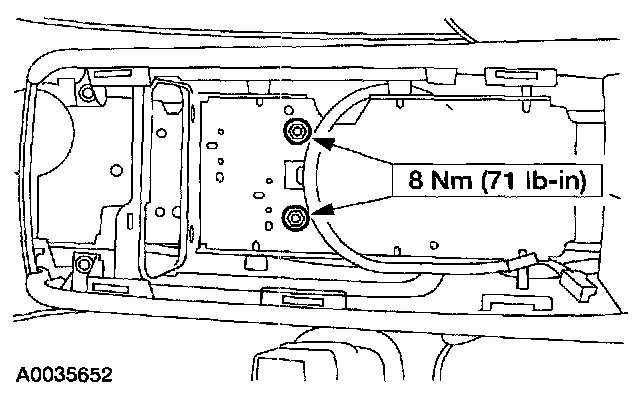

- Disconnect the electrical connector.







3. Disconnect the floor console electrical connector.
- Release the connector locator from the transmission selector lever assembly.







4. Position the transmission range selector lever assembly aside.
1 Remove the four bolts.

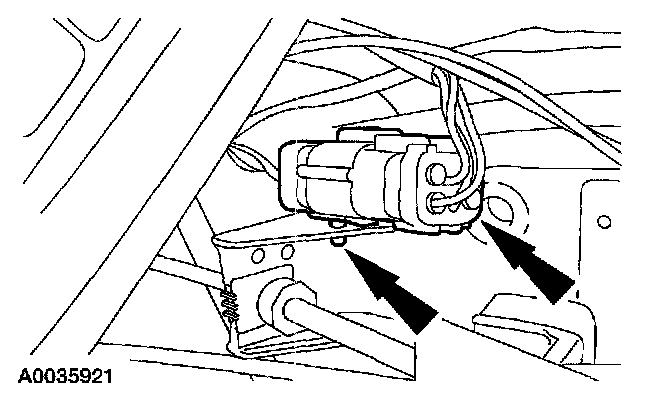

2 Disconnect the electrical connector.







5. Remove the floor console bolts.







6. Remove the floor console.

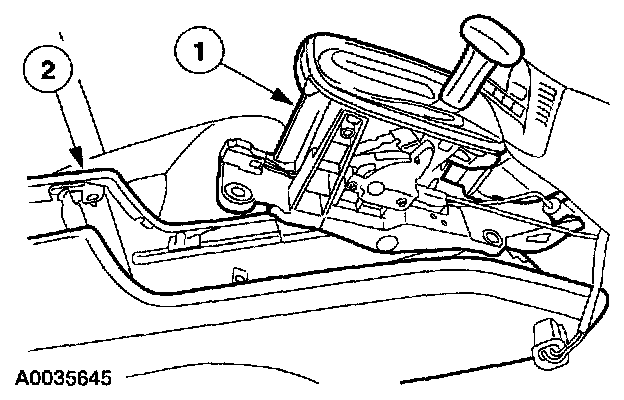

1 Position the transmission selector lever assembly aside.
2 Slide the floor console rearward to remove.

INSTALLATION
1. To install, reverse the removal procedure.
