Fuel Door Latch: Service and Repair

FUEL FILLER INTERLOCK CATCH

Removal and Installation
1. Position the LH luggage compartment trim panel aside.

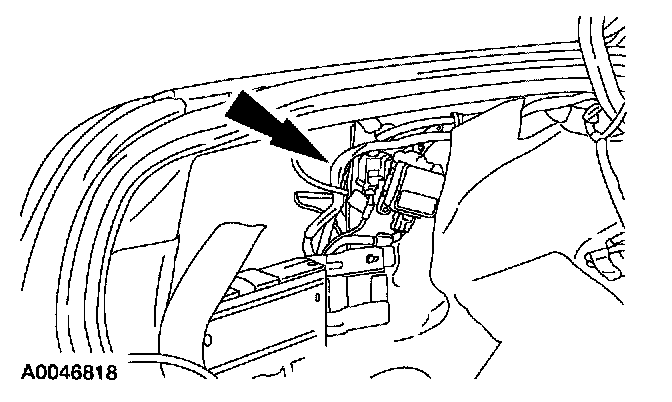

2. Disconnect the electrical connector.







3. Remove the fuel filler cap and the screws.







4. NOTE: Part removed from the vehicle for clarity.

Remove the fuel filler interlock catch assembly screws and the fuel filler interlock catch assembly.
- Guide the manual release cable through the opening.

5. To install, reverse the removal procedure.
