Radio, Stereo, and Compact Disc: Description and Operation

There are three audio systems available:
^ Alpine premium system
^ Alpine Audiophile system (export only)
^ The M100 ULC (police/fleet only)

The Alpine Audiophile System consists of:
^ Two Audiophile front door speakers with enclosures.
^ Two Audiophile package tray speakers with enclosures.

The M1OO ULC and the Alpine premium audio systems consist of:
^ Two premium front door radio speakers.
^ Two premium package tray speakers.

The Alpine systems can be equipped with:
^ An optional trunk mounted 6-disc digital audio compact disc player.

The Marauder audio system consists of:
^ Rear shelf mounted 6.5-inch subwoofer with 100 watt amplifier (optional)
^ Two premium front door speakers.
^ Two premium rear shelf speakers.
^ Alpine dual media audio unit.

Refer to the owner literature for operating instructions.

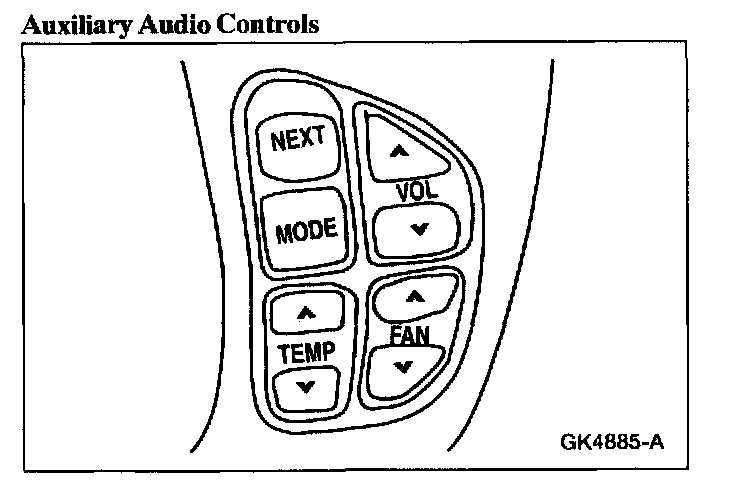

Auxiliary Audio Controls:






The audio controls on the steering wheel allow the driver to control volume, mode, and memory presets.

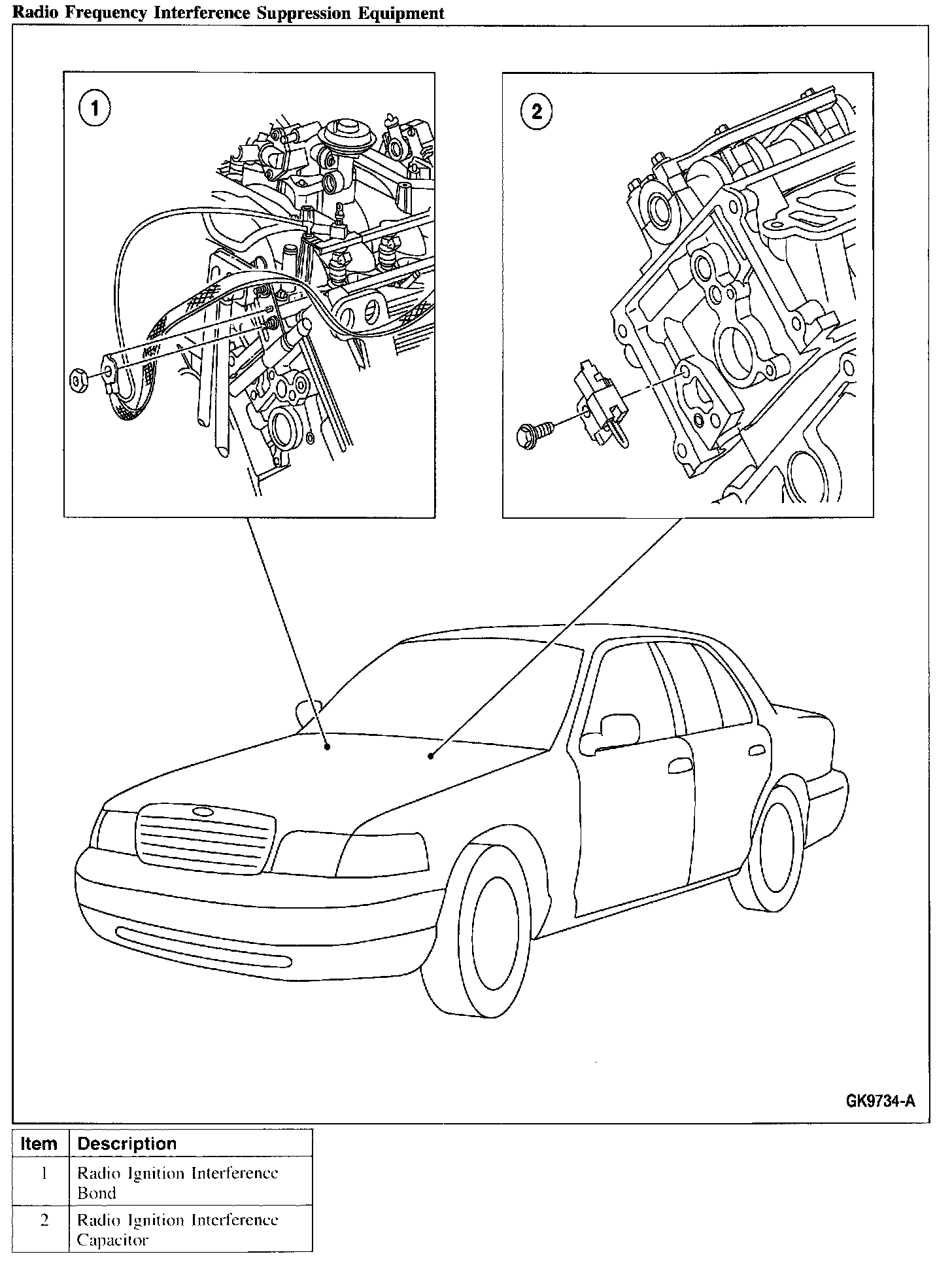

Radio Frequency Interference Suppression Equipment:






The radio suppression equipment reduces interference transmitted through the radio speaker by the engine ignition and electrical system.
