CD Changer: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.
2. If equipped, position the luggage compartment cover aside.

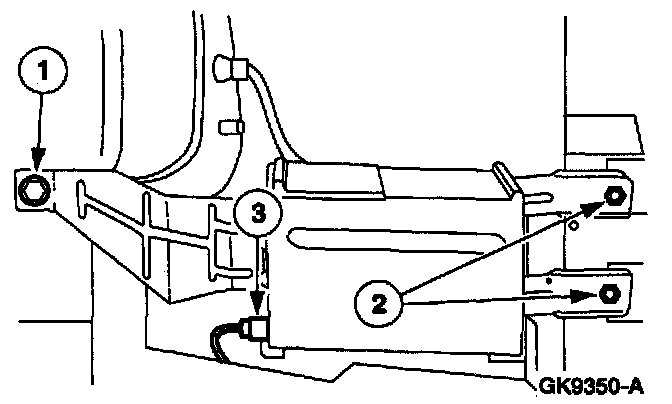

3. Remove the digital audio compact disc changer.
1 Remove the bolt.
2 Remove the nuts.
3 Disconnect the electrical connector.
4. Remove the digital audio compact disc changer brackets.
^ Remove the six bolts and two brackets.

INSTALLATION
1. To install, reverse the removal procedure.
