Initial Inspection and Diagnostic Overview

1. Verify the customer concern by operating the system.

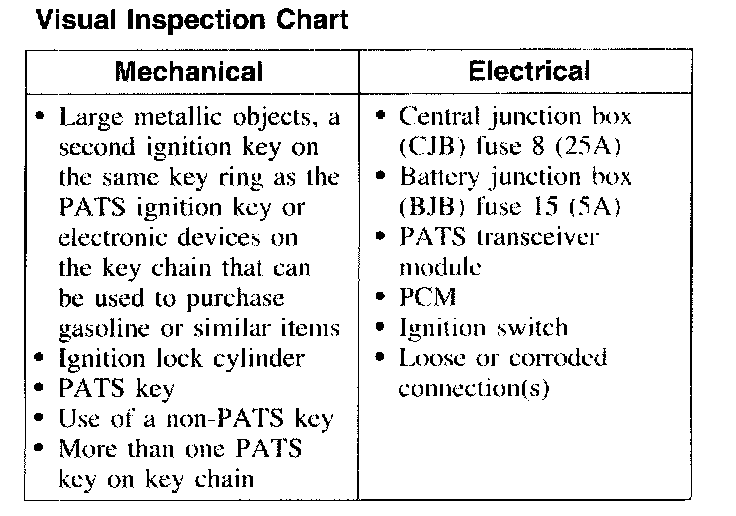

Visual Inspection Chart:

2. Visually inspect for obvious signs of mechanical and electrical damage.
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the diagnostic tool does not power up, refer to the diagnostic tool manual.
5. Carry out the DATA LINK DIAGNOSTICS test. If the diagnostic tool responds with:
^ CKT914, CKT915 or CKT7O = ALL ECUS NO RESP/NOT EQUIP, refer to Module Communications Network (Information Bus).
^ NO RESP/NOT EQUIP for PCM, refer to Module Communications Network (Information Bus).
^ SYSTEM PASSED, retrieve and record the continuous Diagnostic Trouble Codes (DTCs), erase the continuous DTCs, and carry out the self-test diagnostics for the PCM (KOEO).
6. If the DTCs retrieved are related to the concern, go to the PCM Diagnostic Trouble Code (DTC) Index to continue diagnostics. Diagnostic Trouble Code Tests and Associated Procedures
7. If no DTCs related to the concern are retrieved, proceed to the Symptom Chart to continue diagnostics. Symptom Related Diagnostic Procedures
