Home >> Mercury >> 2002 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Windows and Glass >> Testing and Inspection >> Pinpoint Tests >> Test D: Defrost System Will Not Shut Off Automatically

Test D: Defrost System Will Not Shut Off Automatically

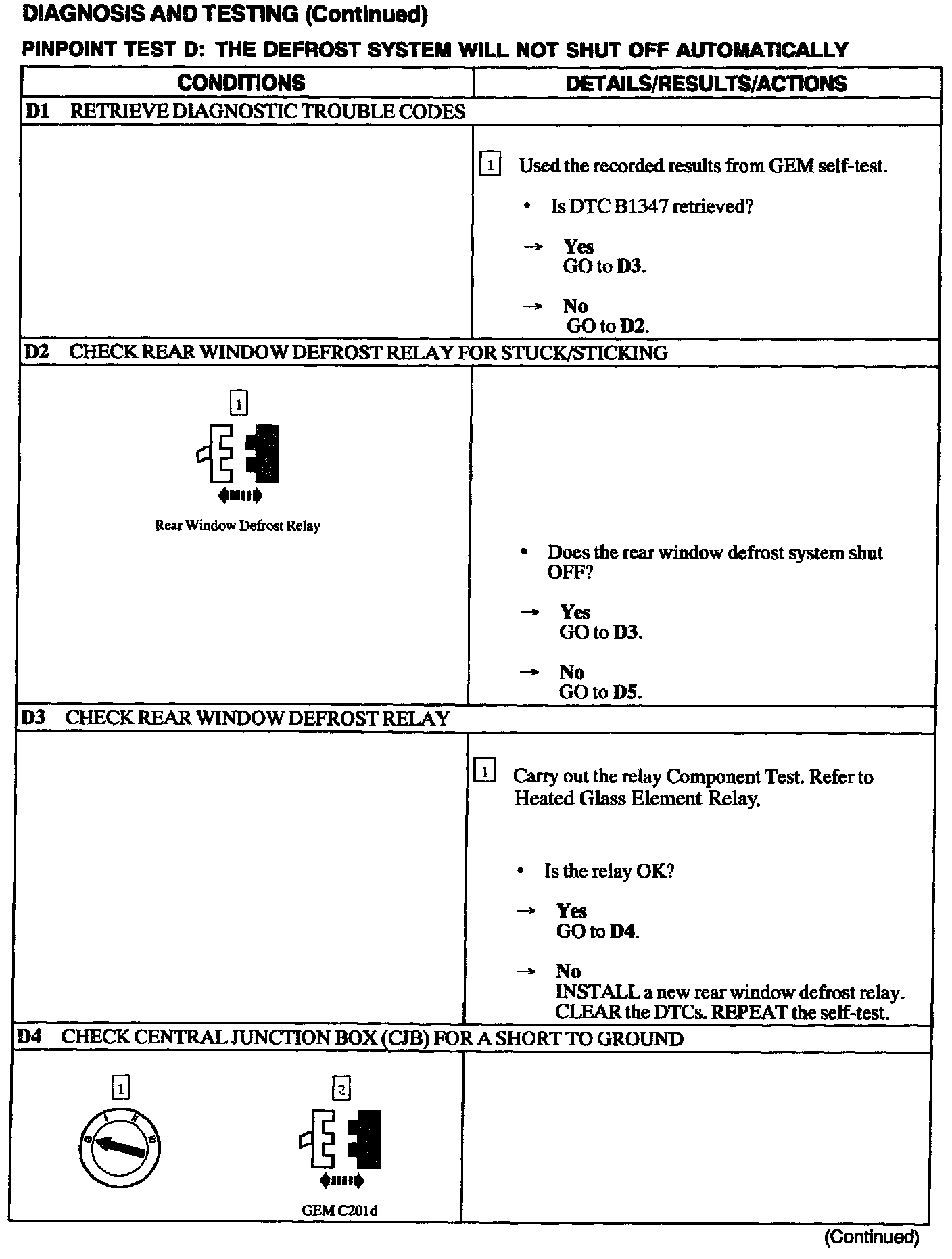

D1 - D4:

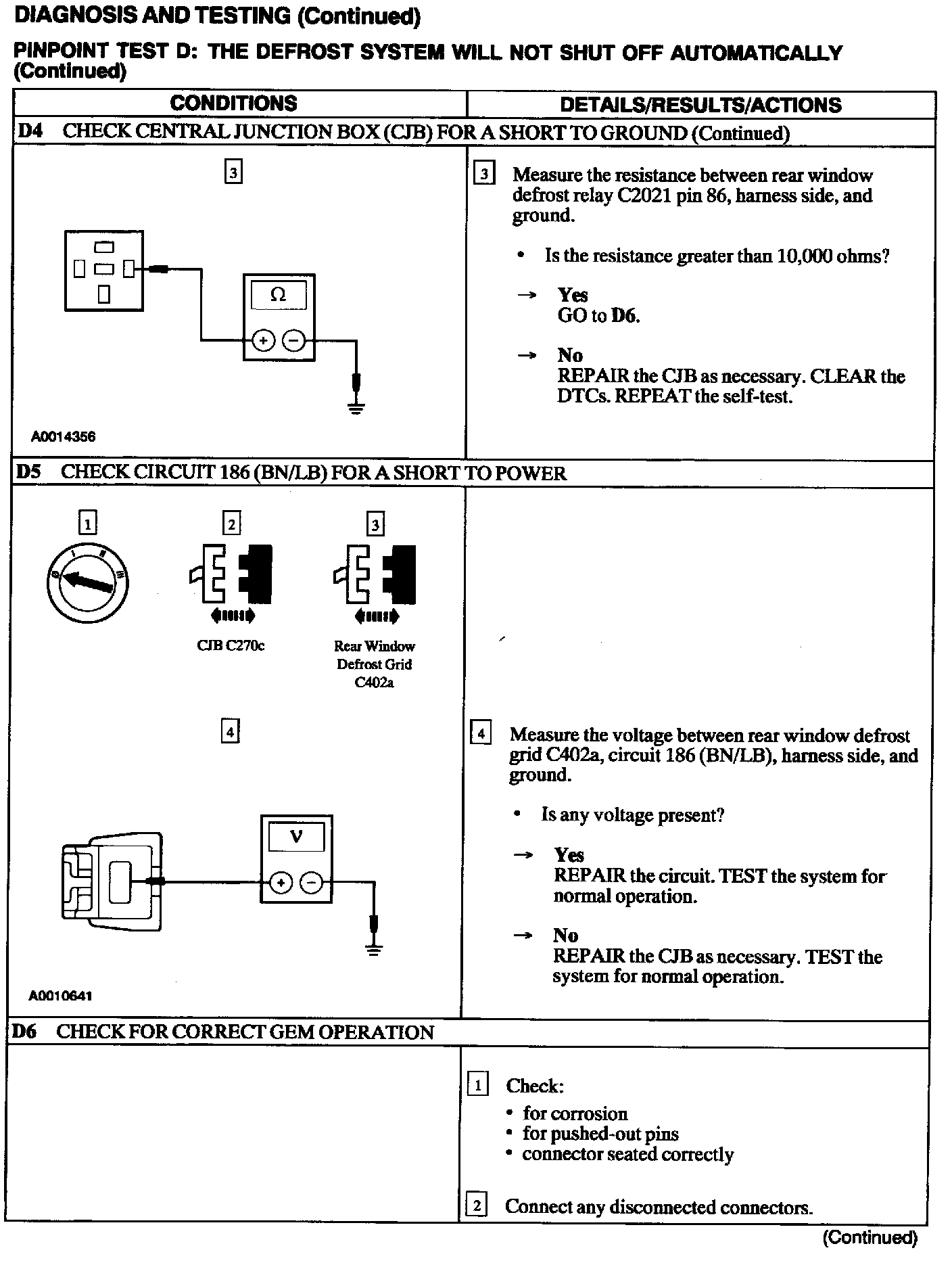

D4 - D6:






D6:
