Home >> Mercury >> 2002 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> AX4S >> Torque Converter Clutch Operation Concerns >> 242/342: Cycling/Shudder/Chatter

242/342: Cycling/Shudder/Chatter

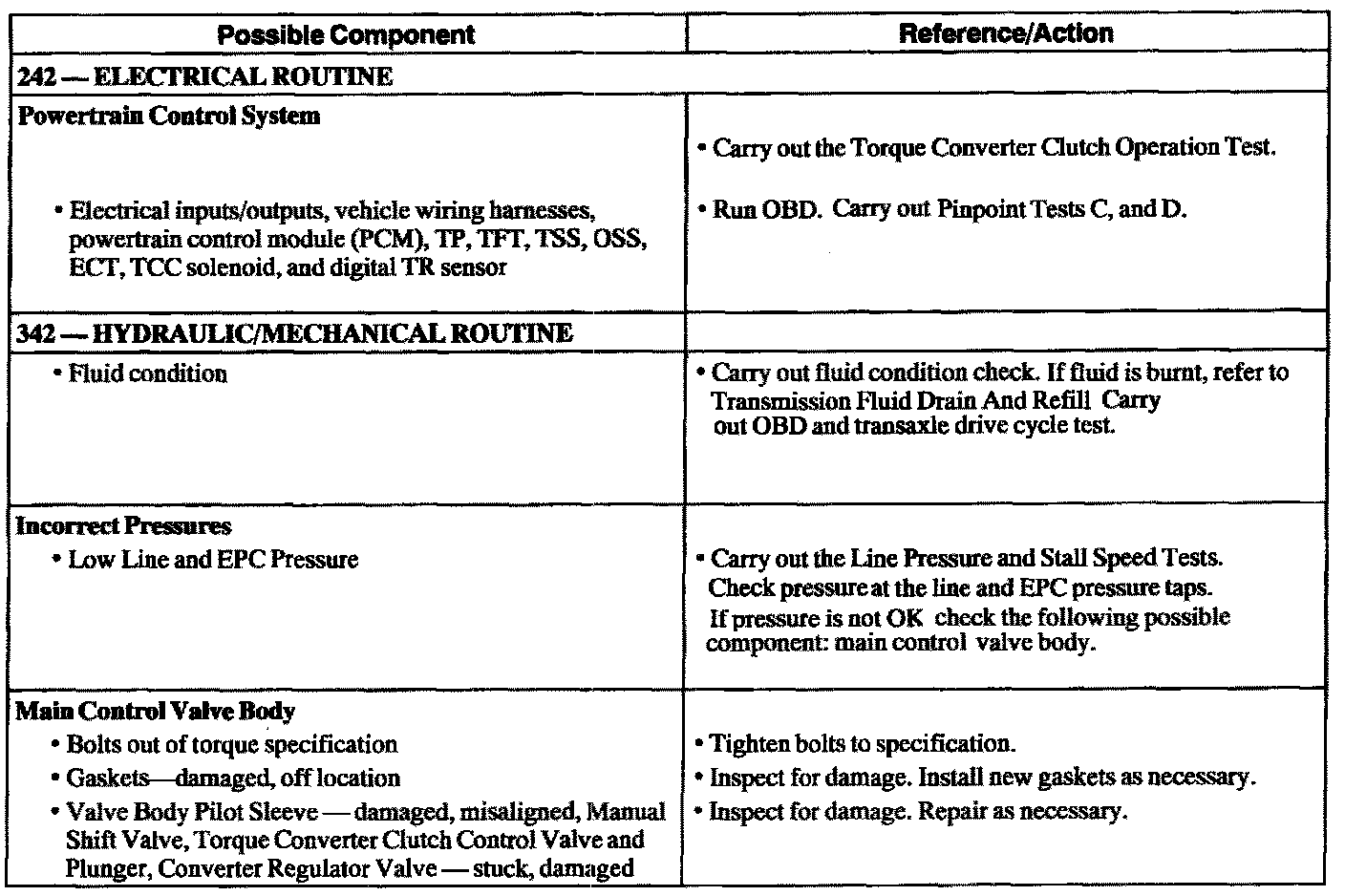

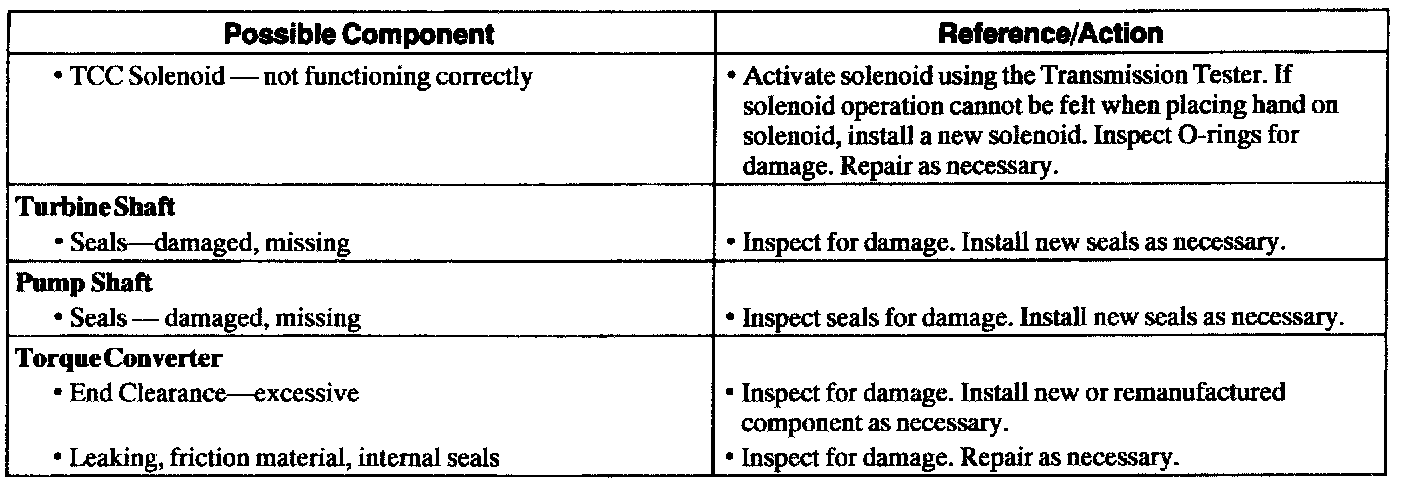

Diagnostic Routines








TORQUE CONVERTER OPERATION CONCERN: CYCLING/SHUDDER/CHATTER
