Test B: The Shift Control Is Out of Correct Gear Relationship

PINPOINT TEST B: THE SHIFT CONTROL LINKAGE IS OUT OF CORRECT GEAR RELATIONSHIP





B1

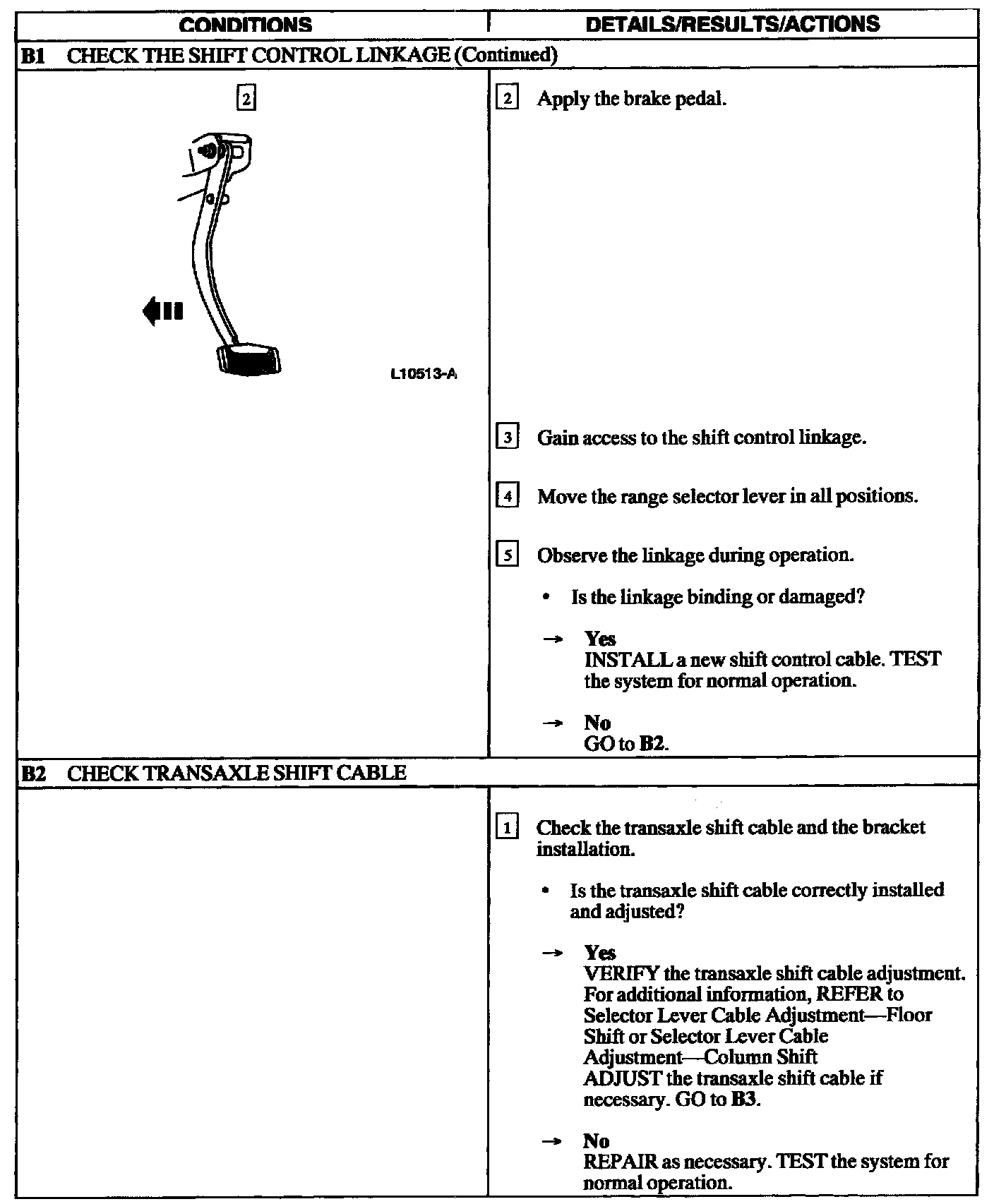

B1 - B2

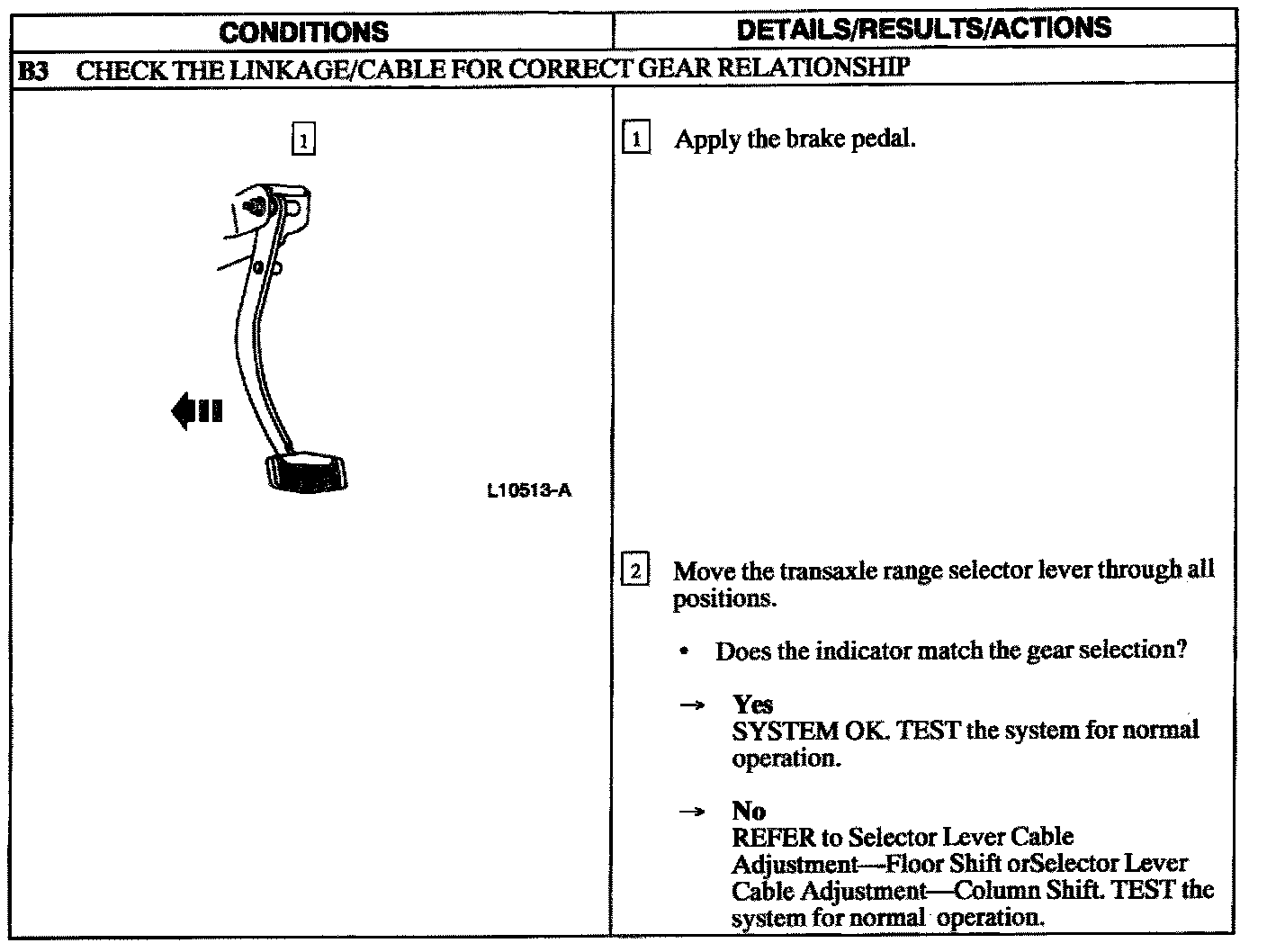

B3
