Test A: Shift Interlock System Does Not Release/Lock Correctly

PINPOINT TEST A: THE SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK CORRECTLY

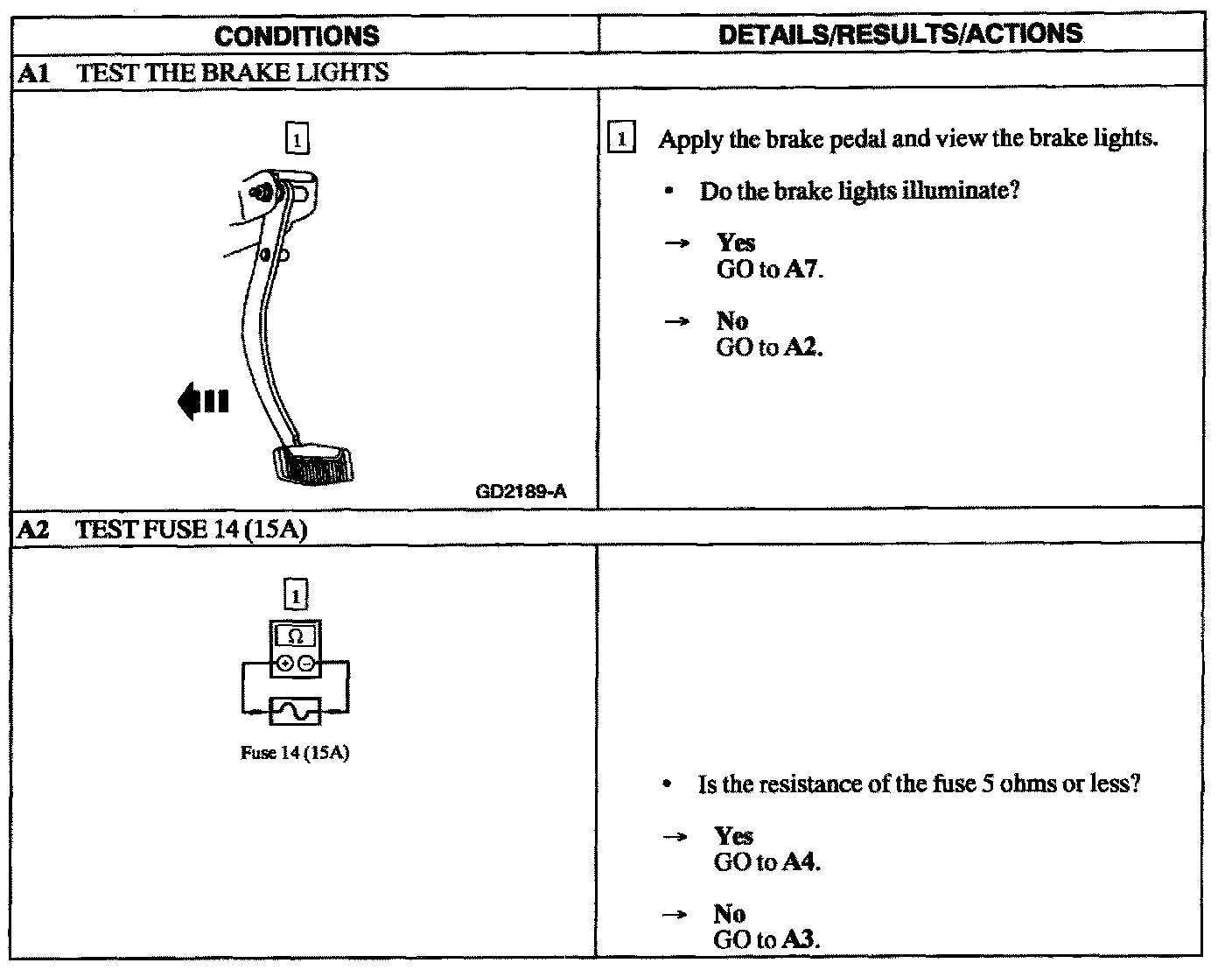

A1 - A2

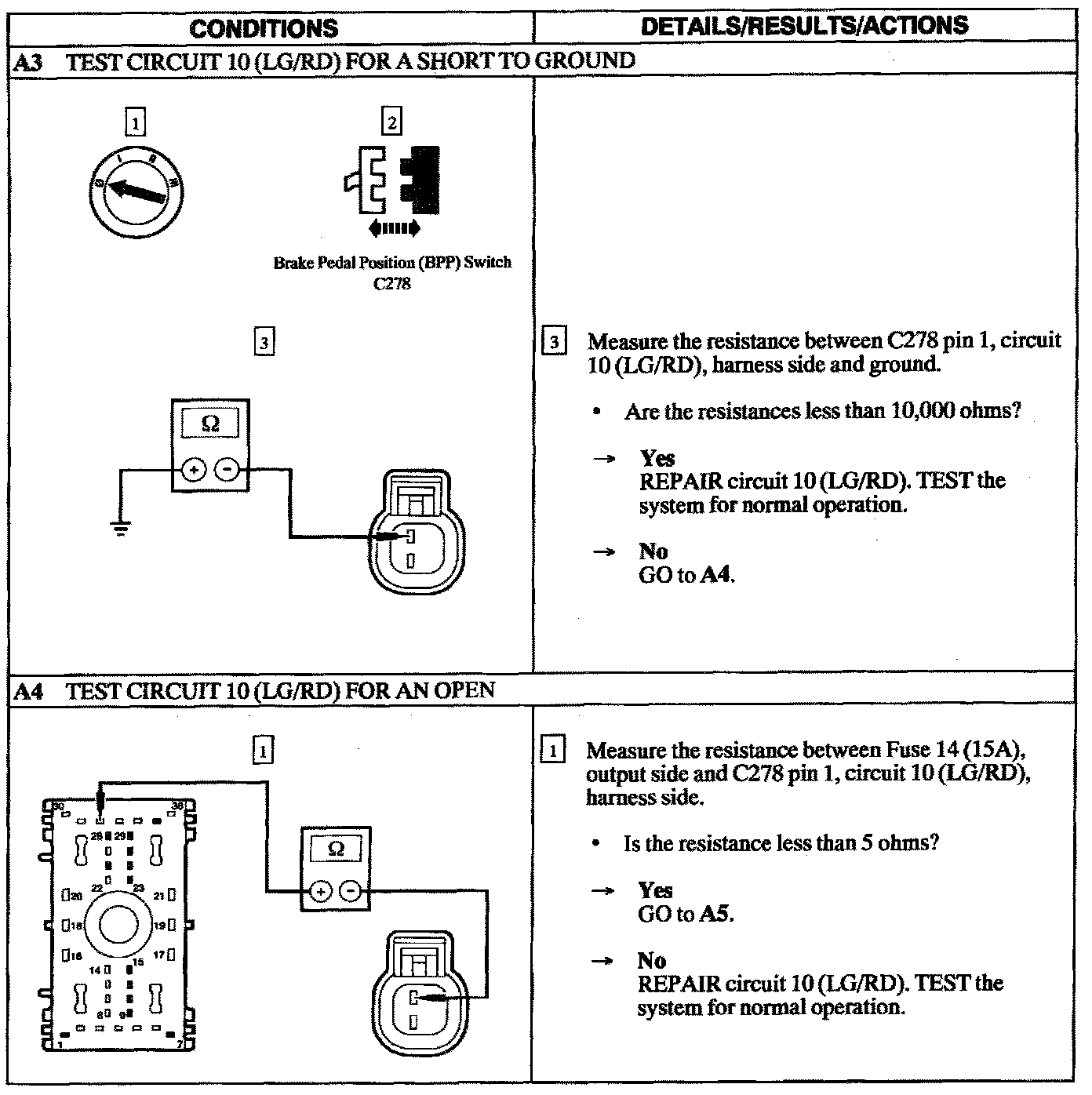

A3 - A4





A5 - A6

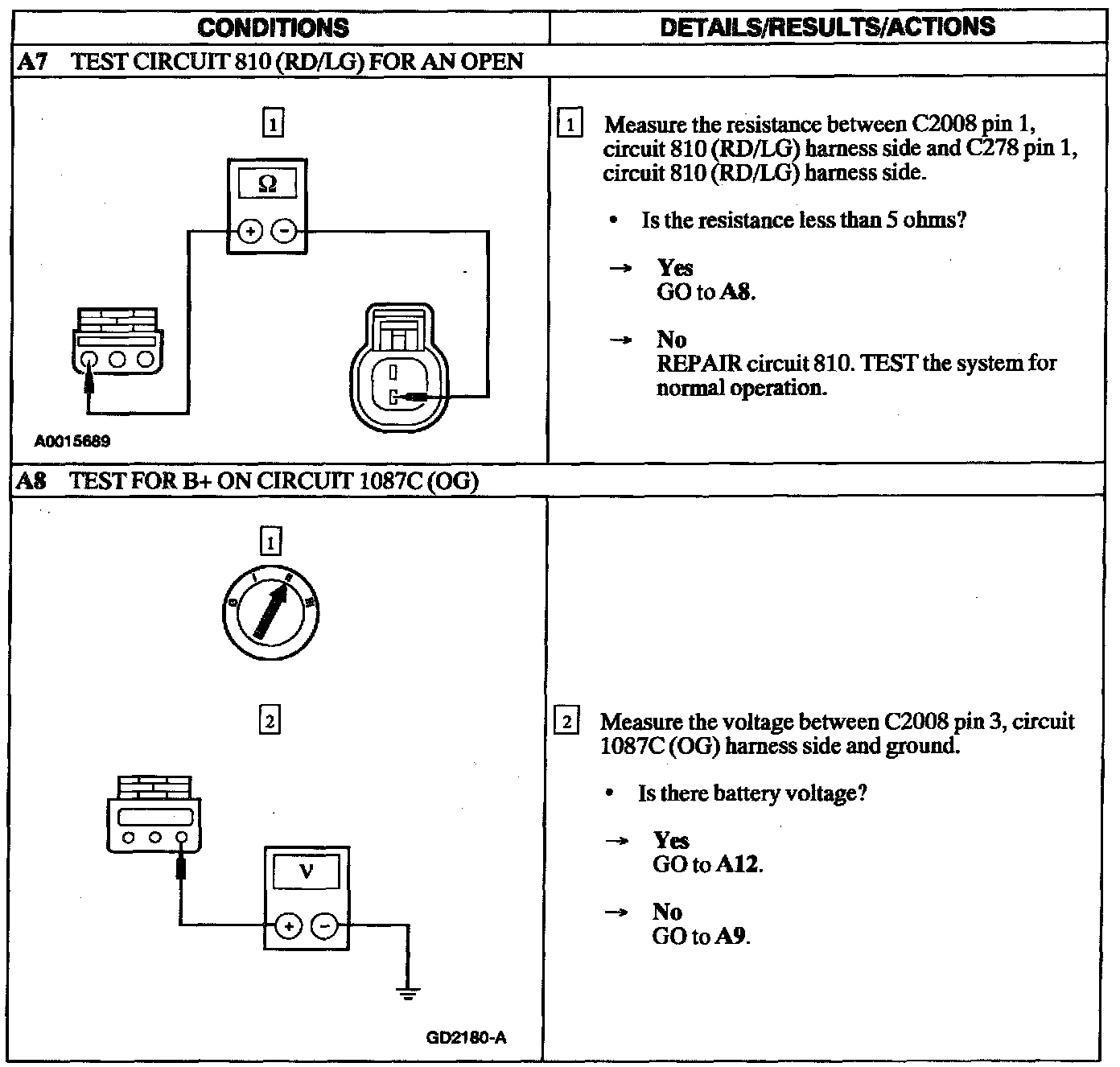

A7 - A8

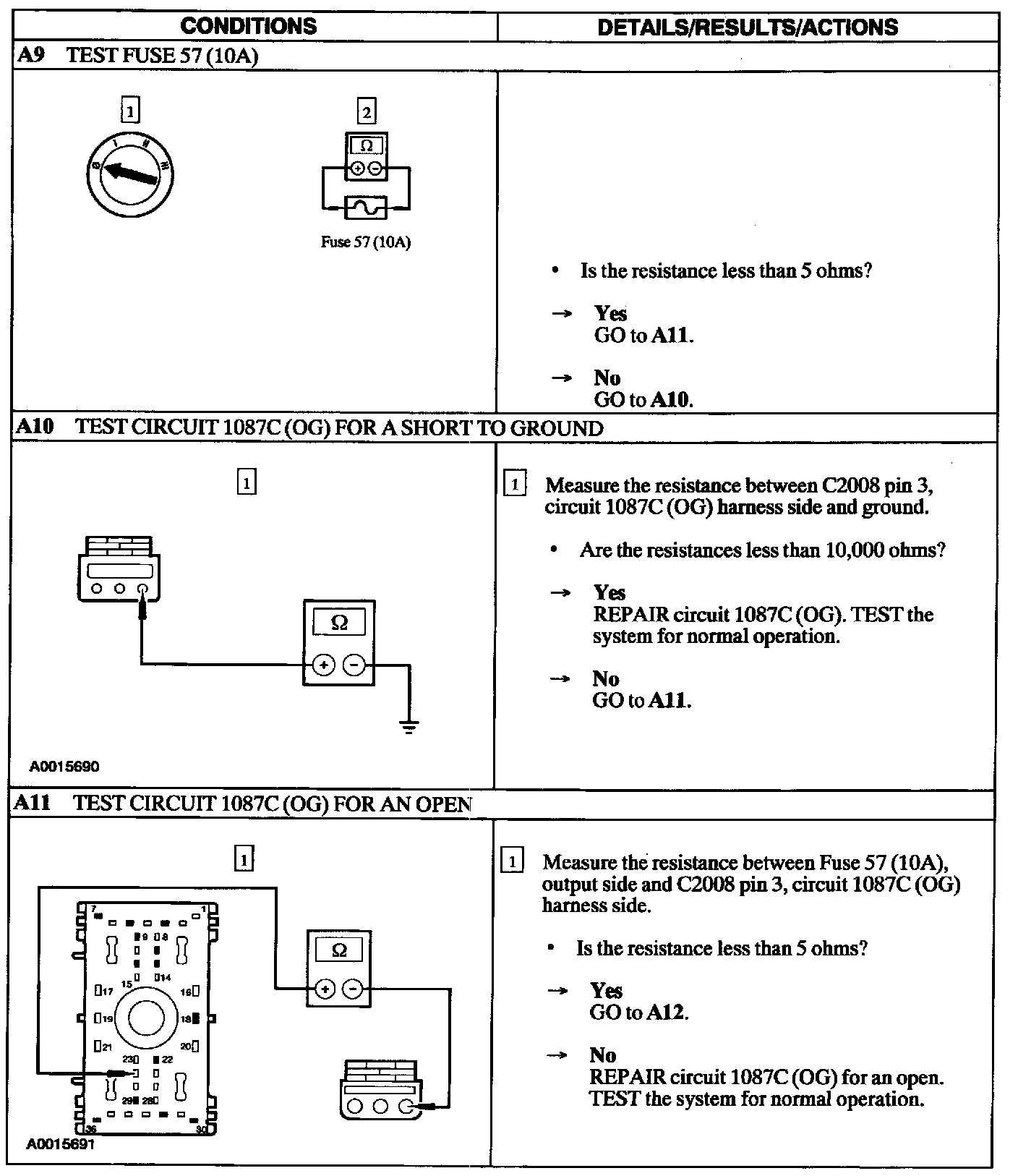

A9 - A11

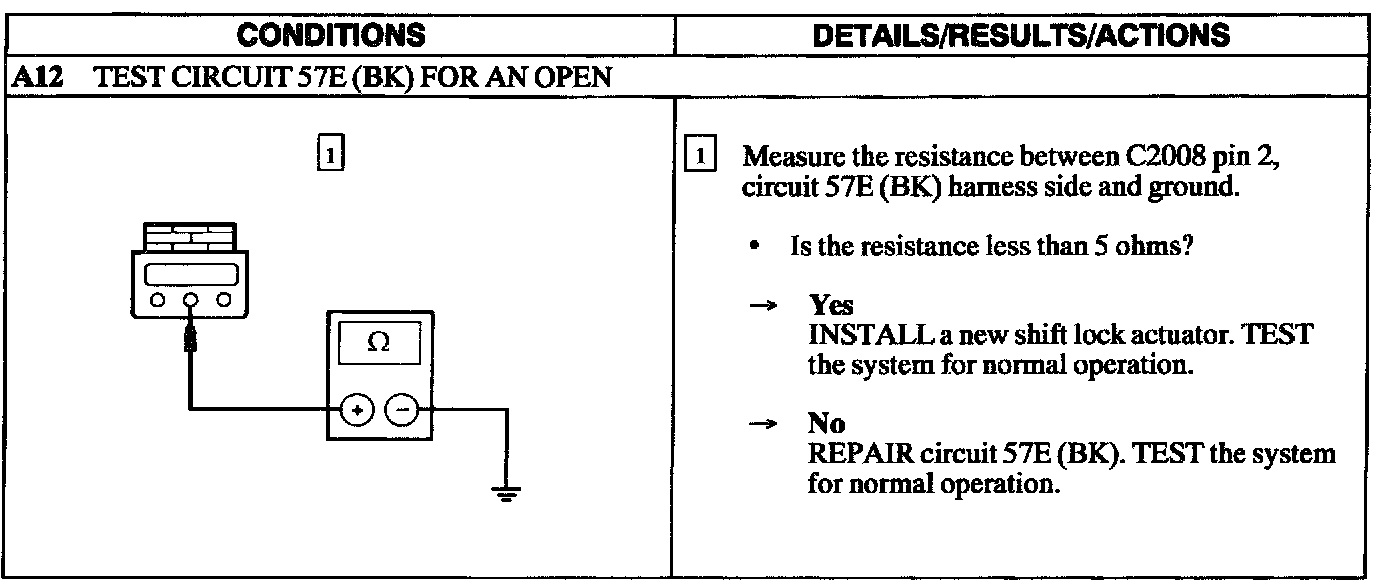

A12
