Test F: Turbine Shaft Speed (TSS) Sensor

PINPOINT TEST F: TURBINE SHAFT SPEED (TSS) SENSOR

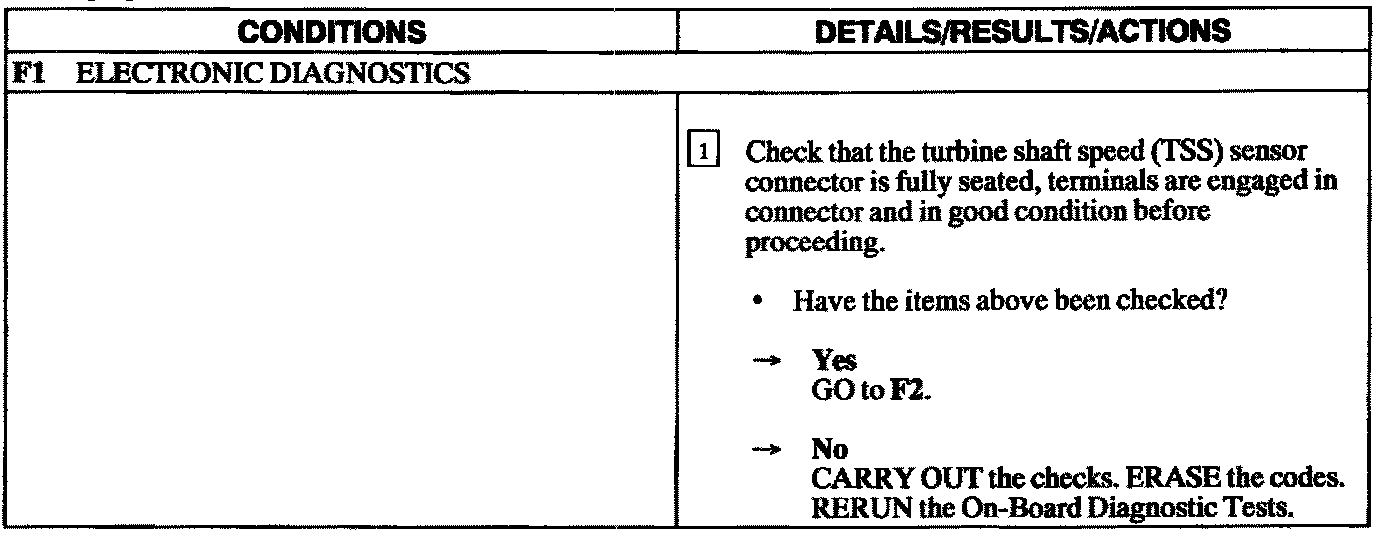

F1

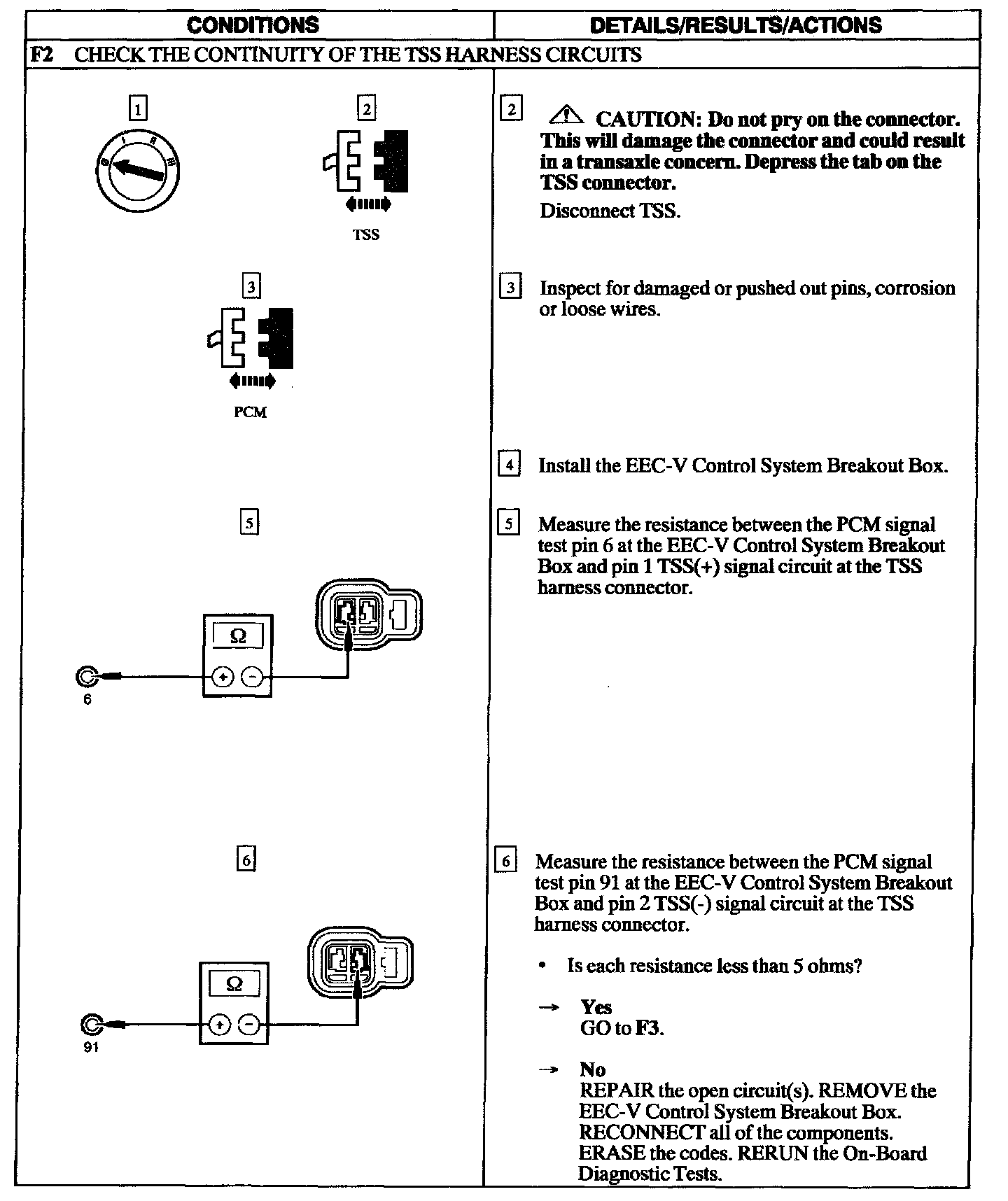

F2

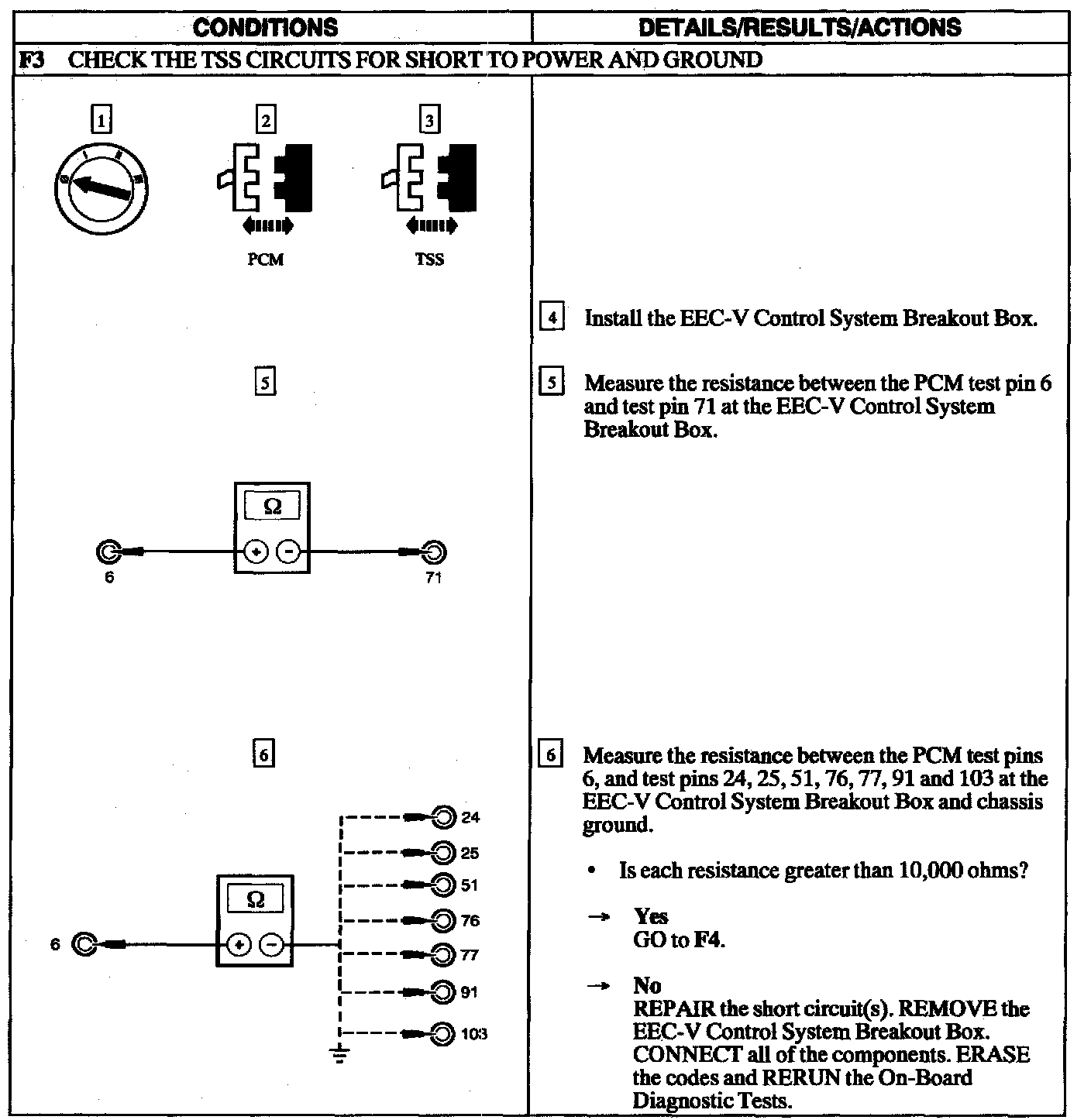

F3

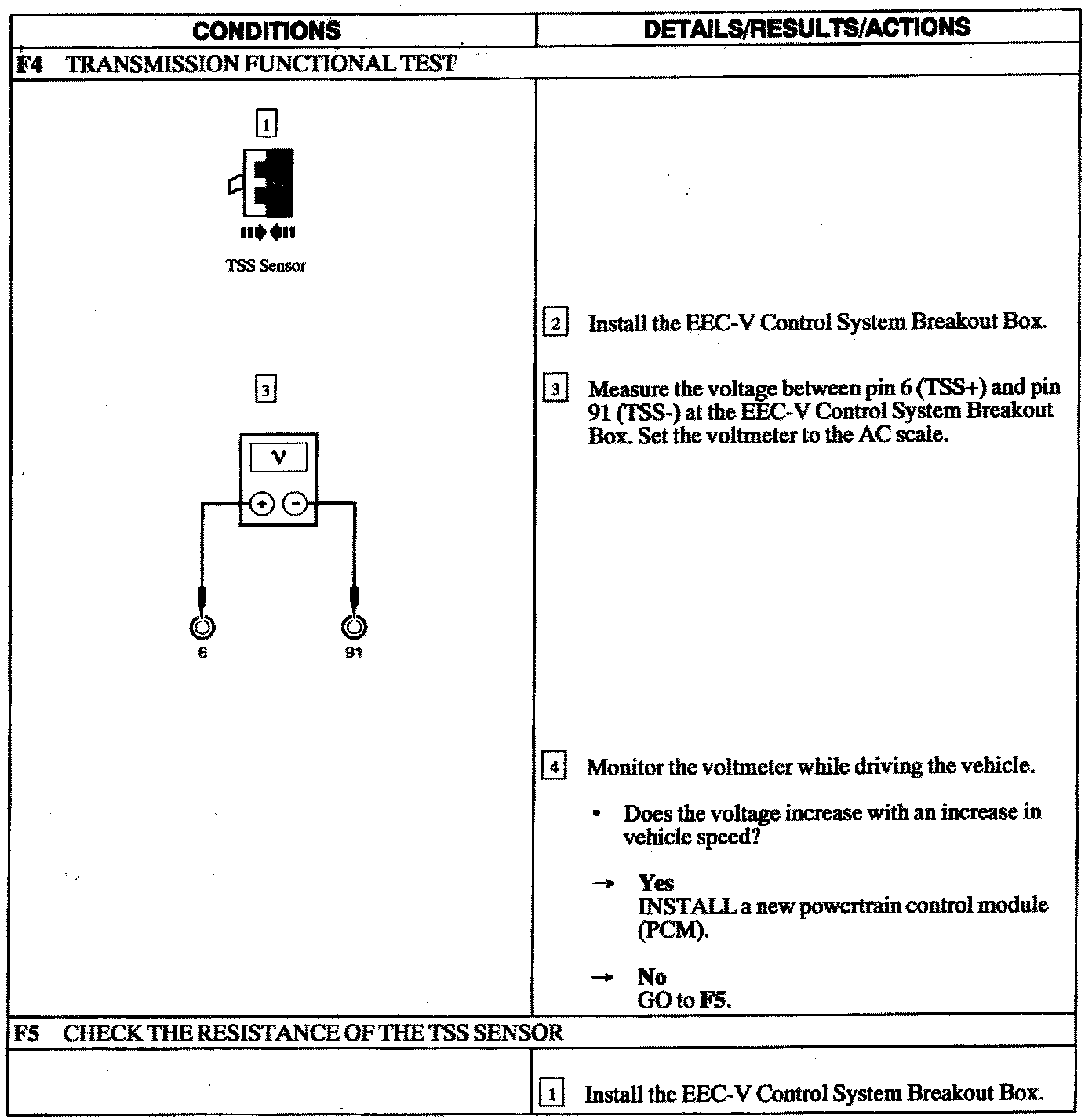

F4 - F5

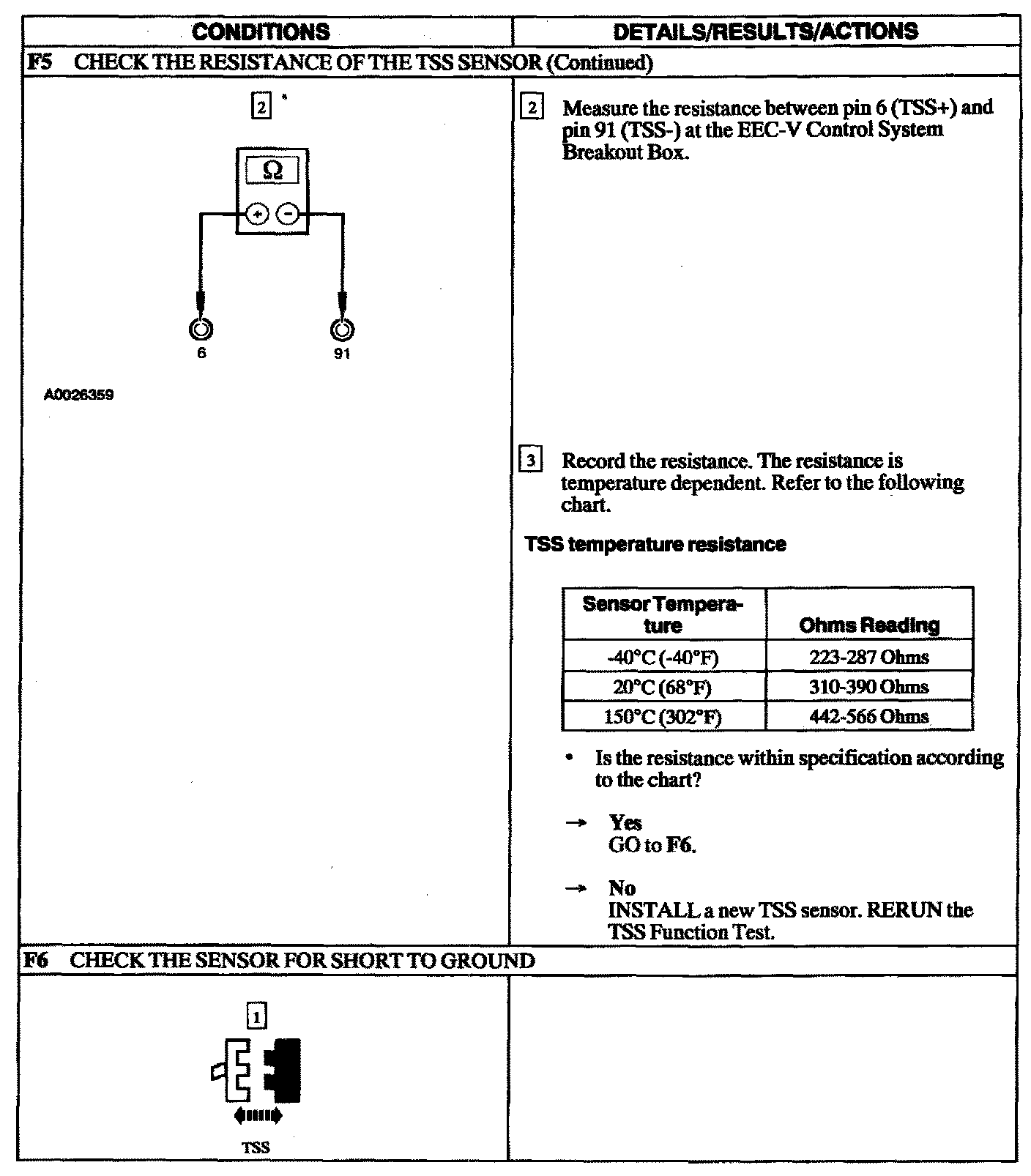

F5 - F6

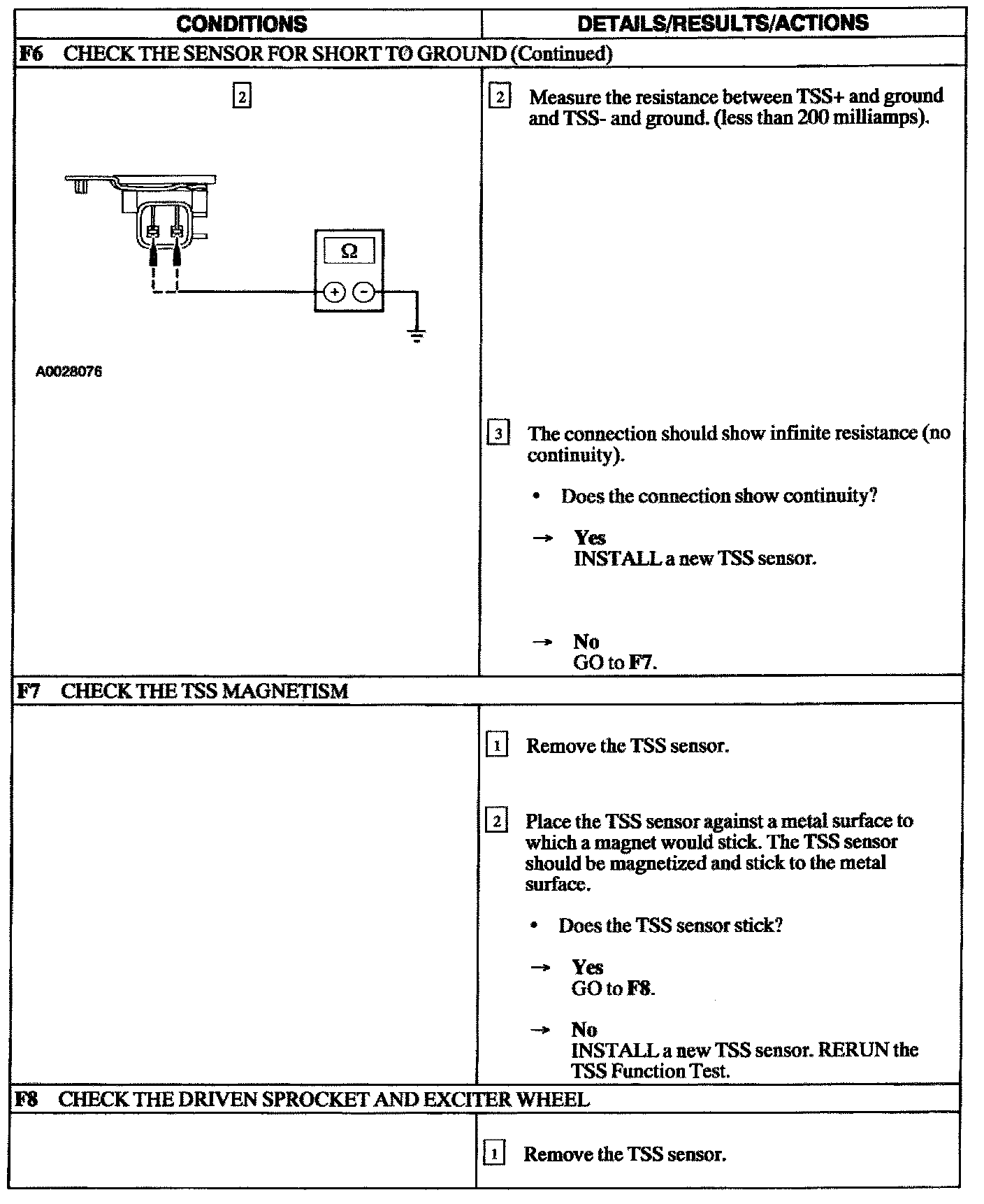

F6 - F8





F8

NOTE: Refer to the Turbine Shaft Speed Sensor Harness Connector illustration.
