Test C: Torque Converter Clutch (TCC) Solenoid

PINPOINT TEST C: TORQUE CONVERTER CLUTCH (TCC) SOLENOID

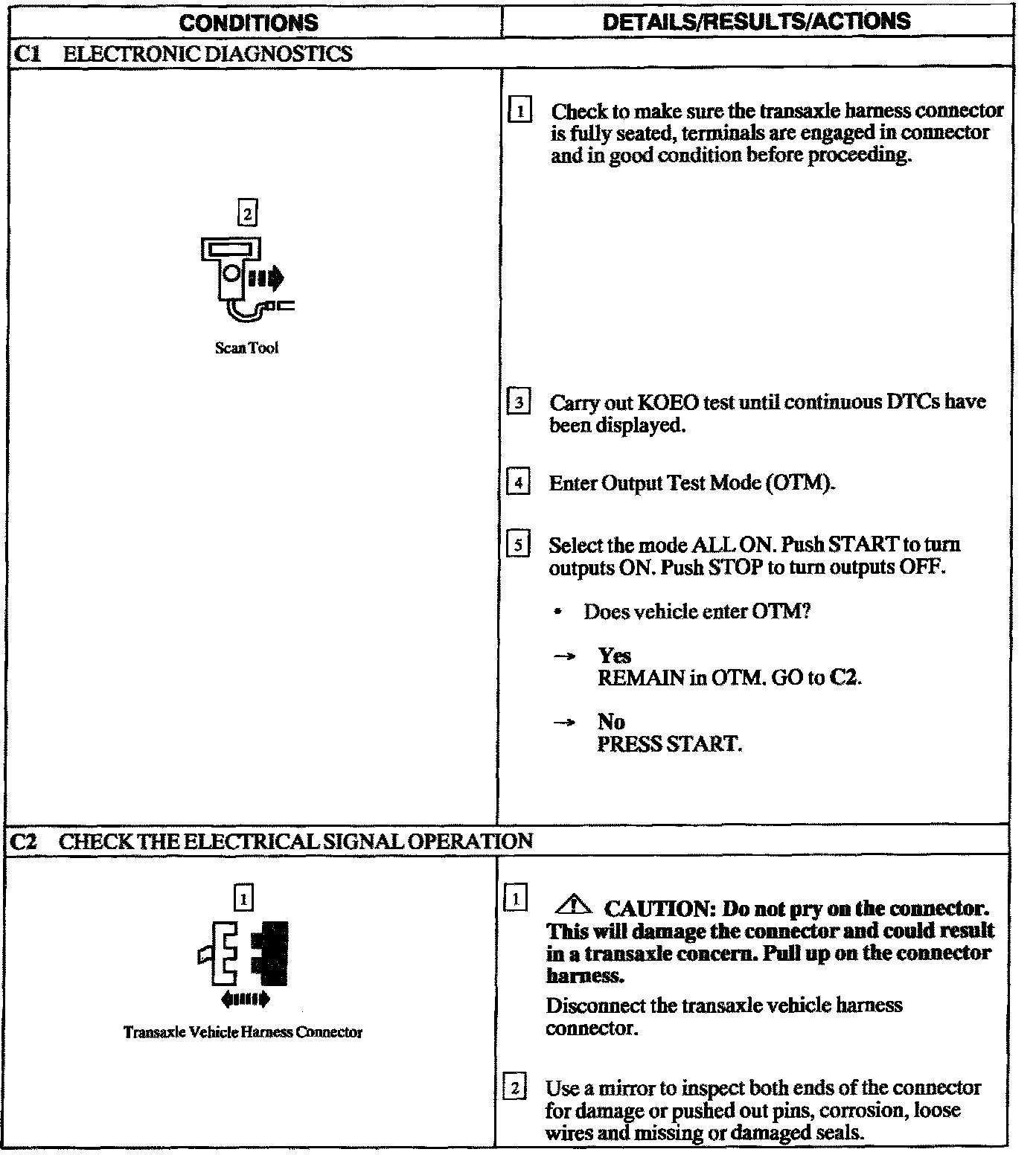

C1 - C2

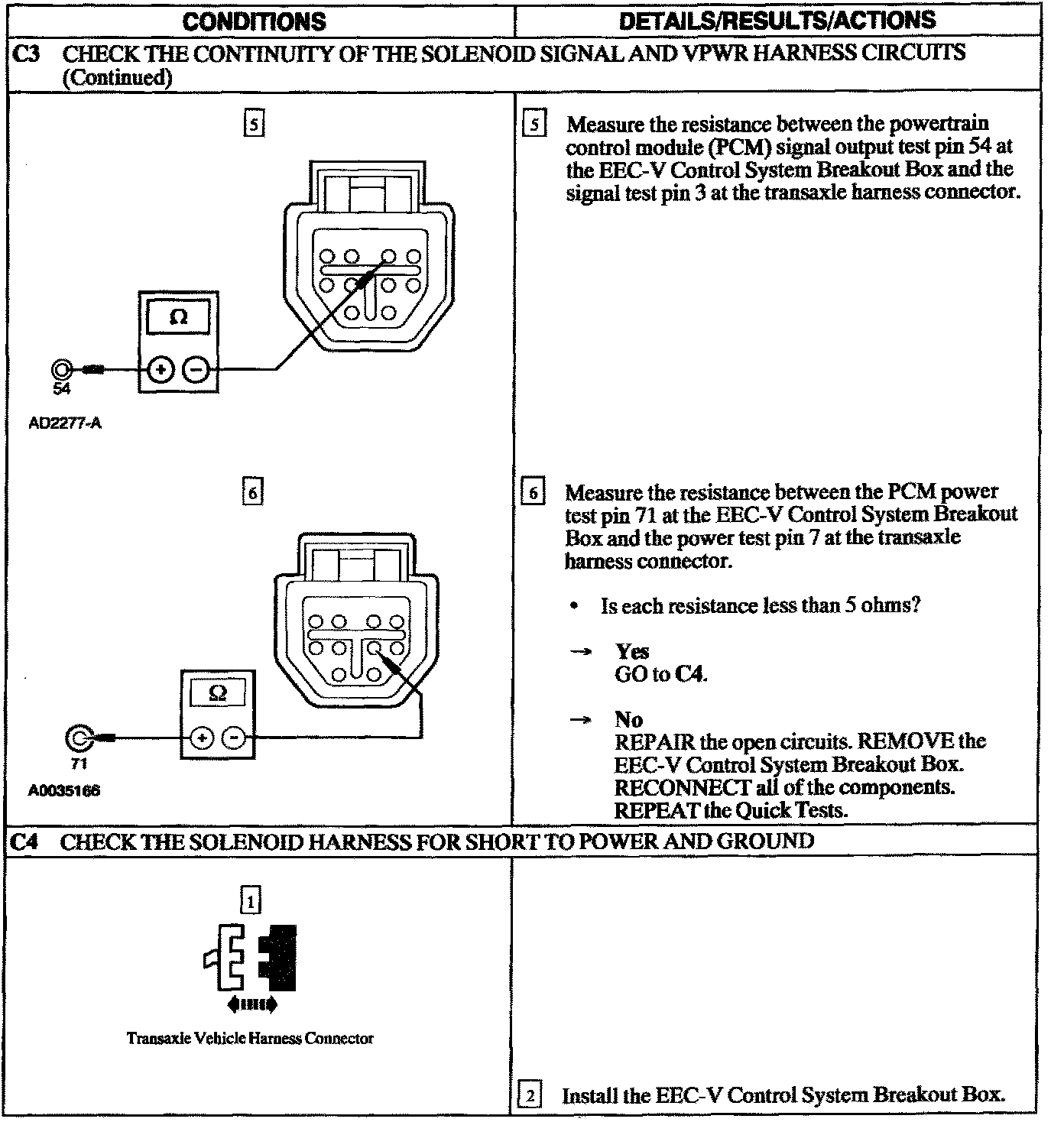

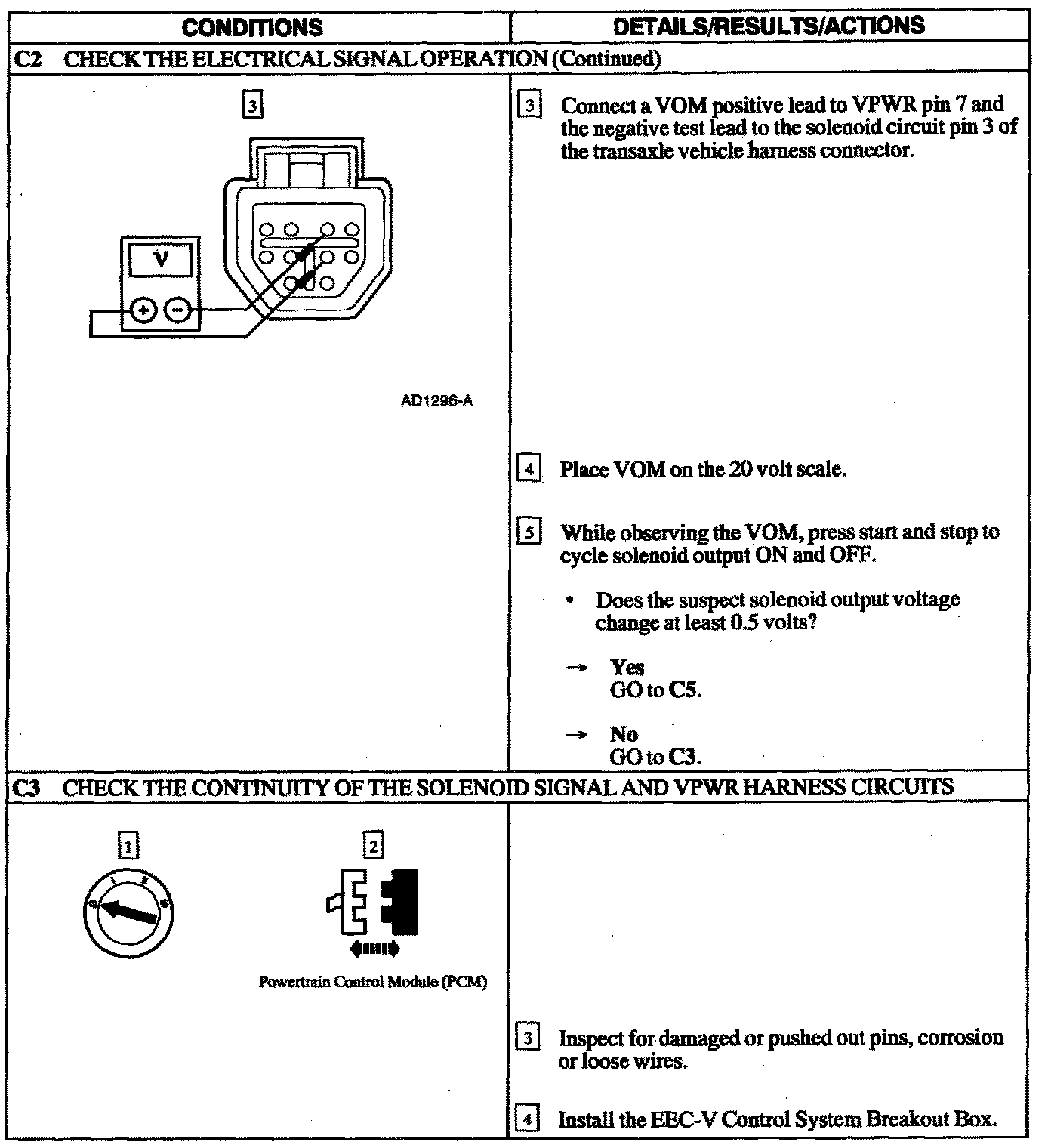

C2 - C3

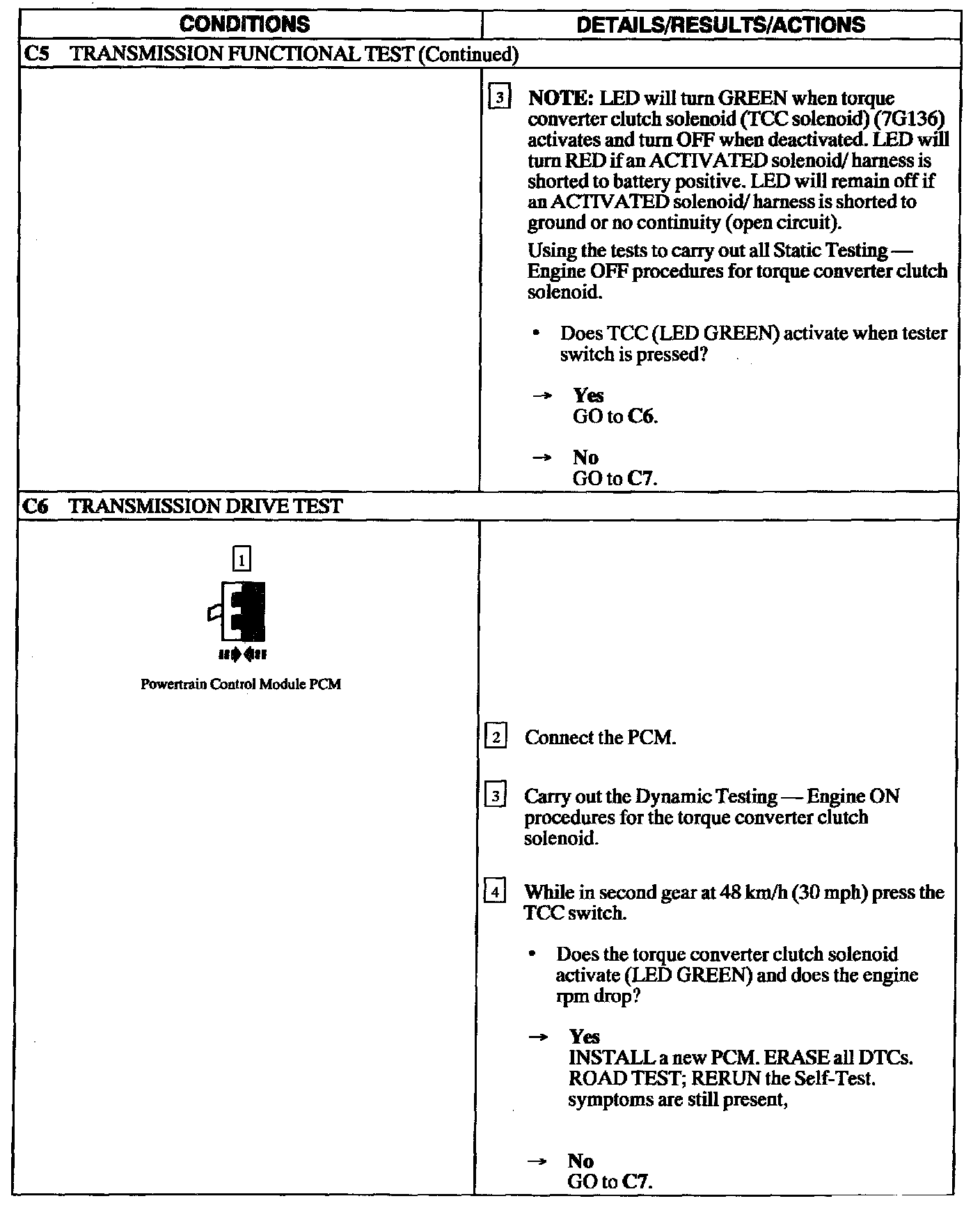

C3 - C4

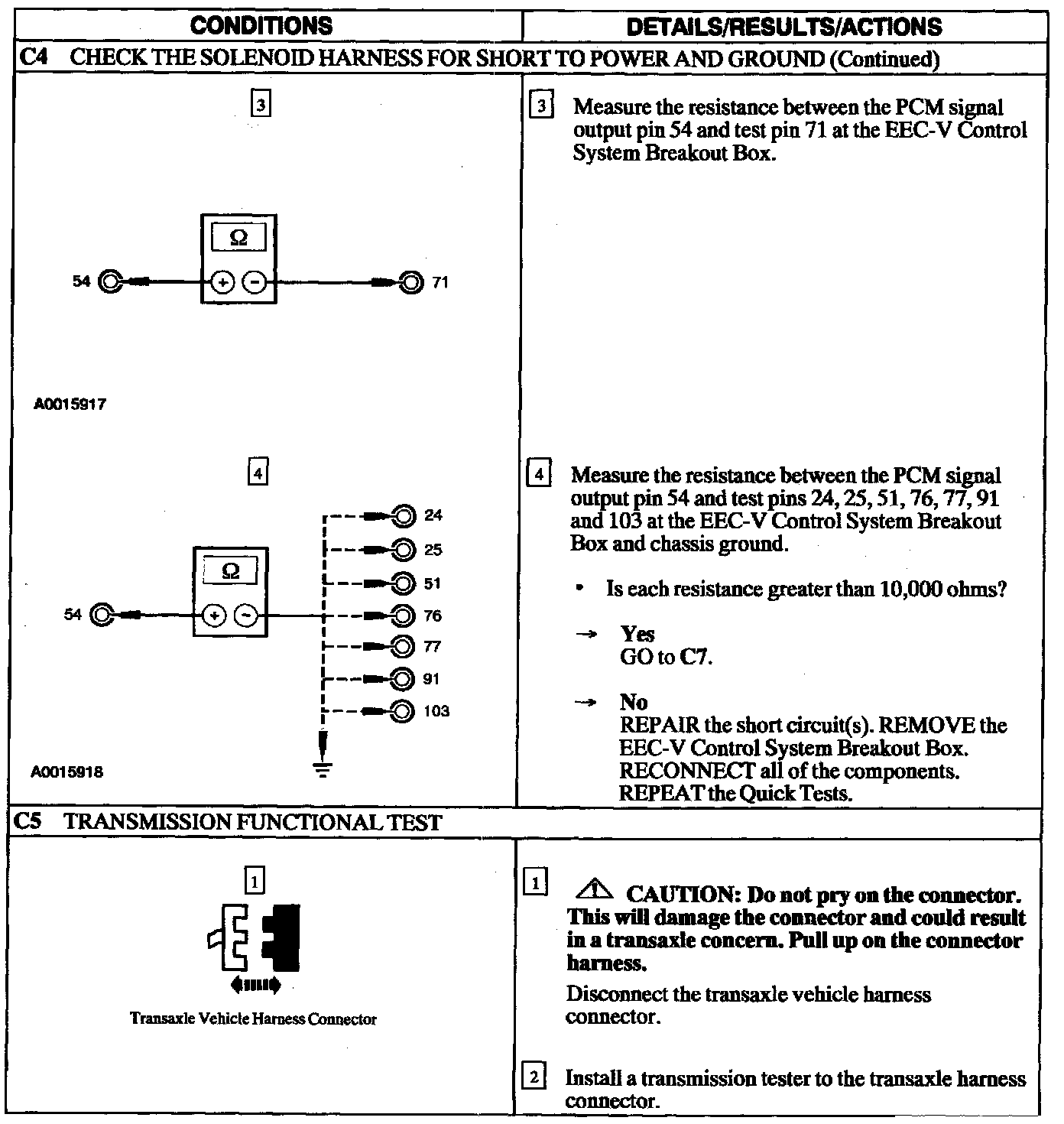

C4 - C5





C5 - C6





C7

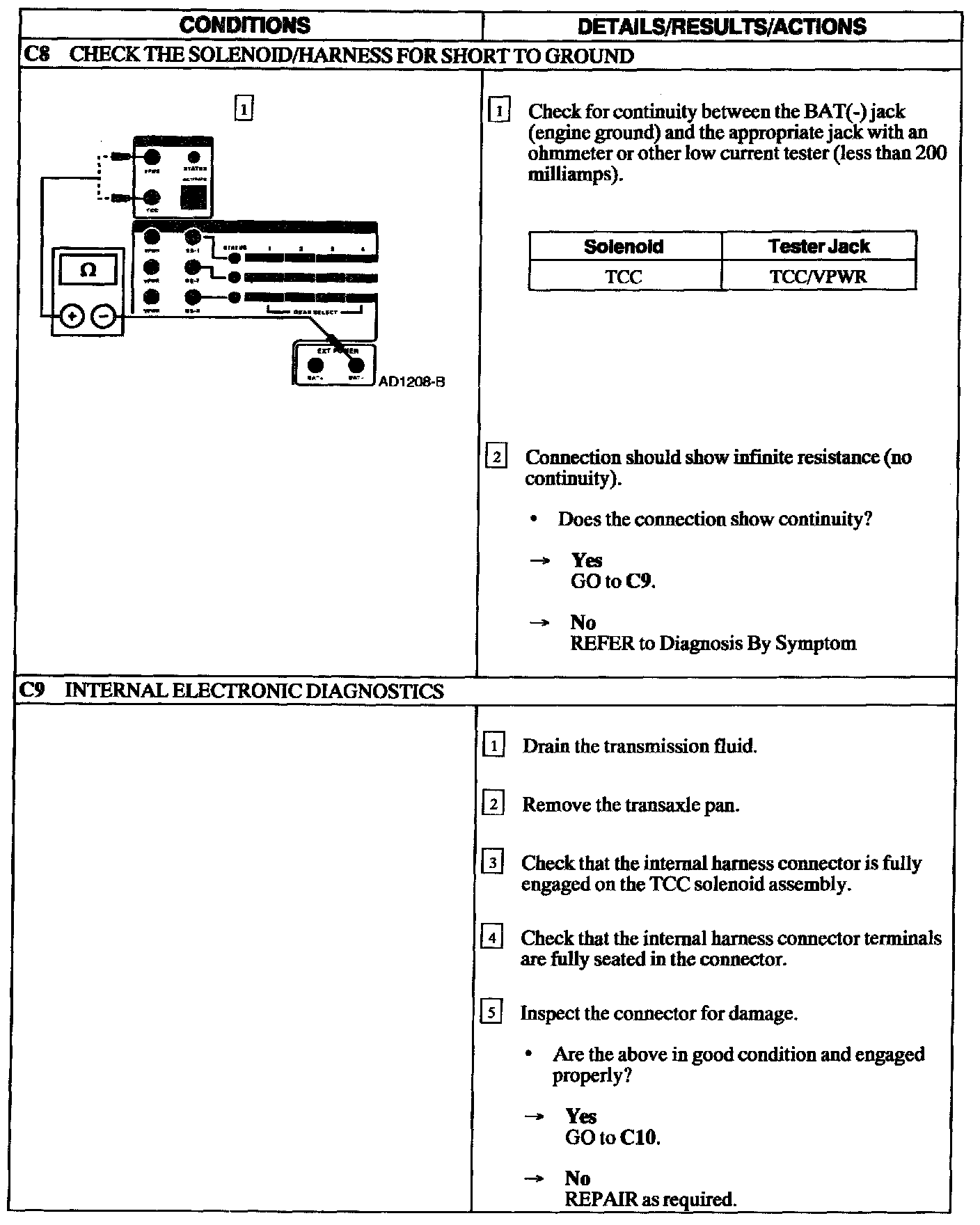

C8 - C9

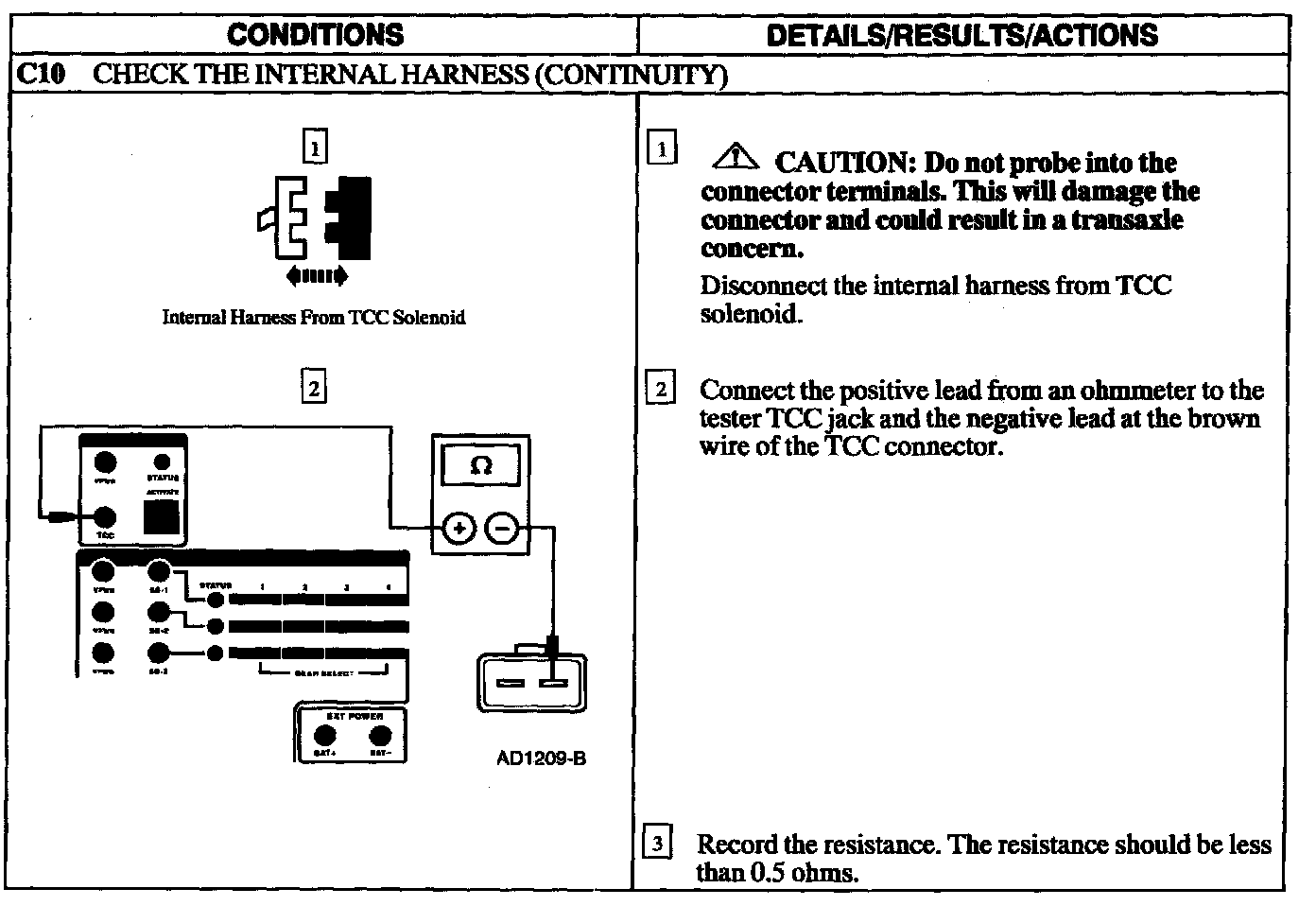

C10





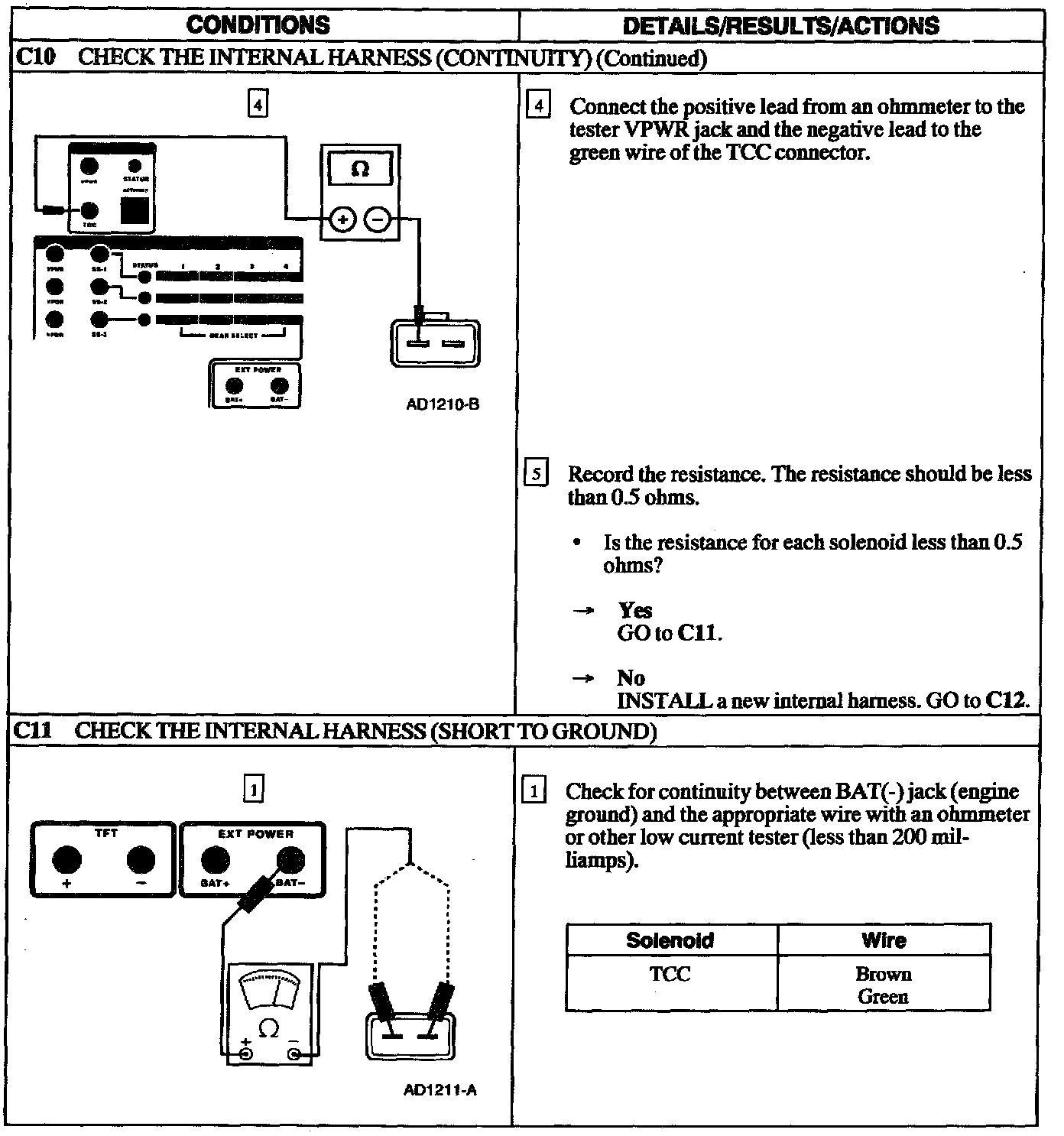

C10 - C11

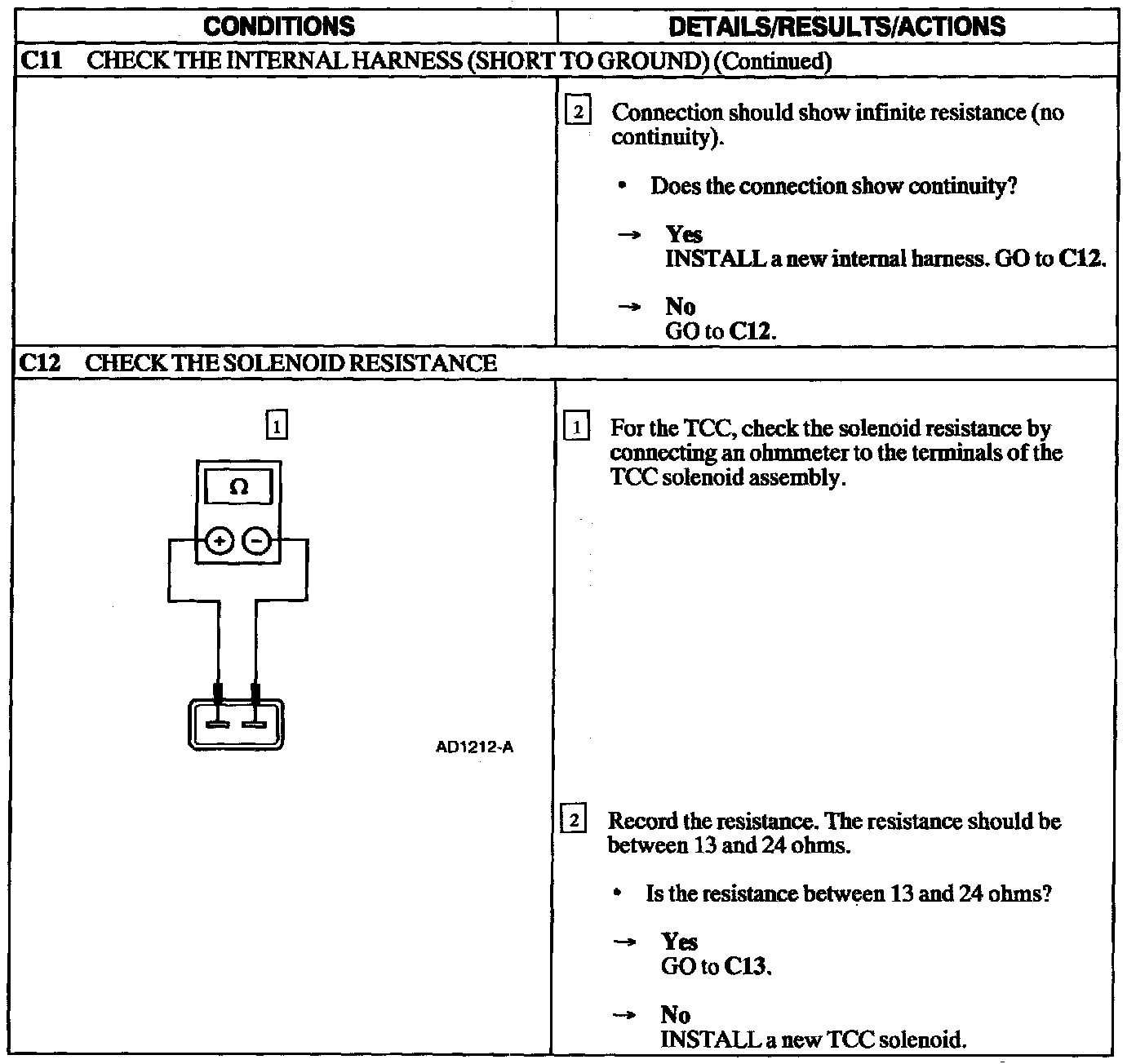

C11 - C12

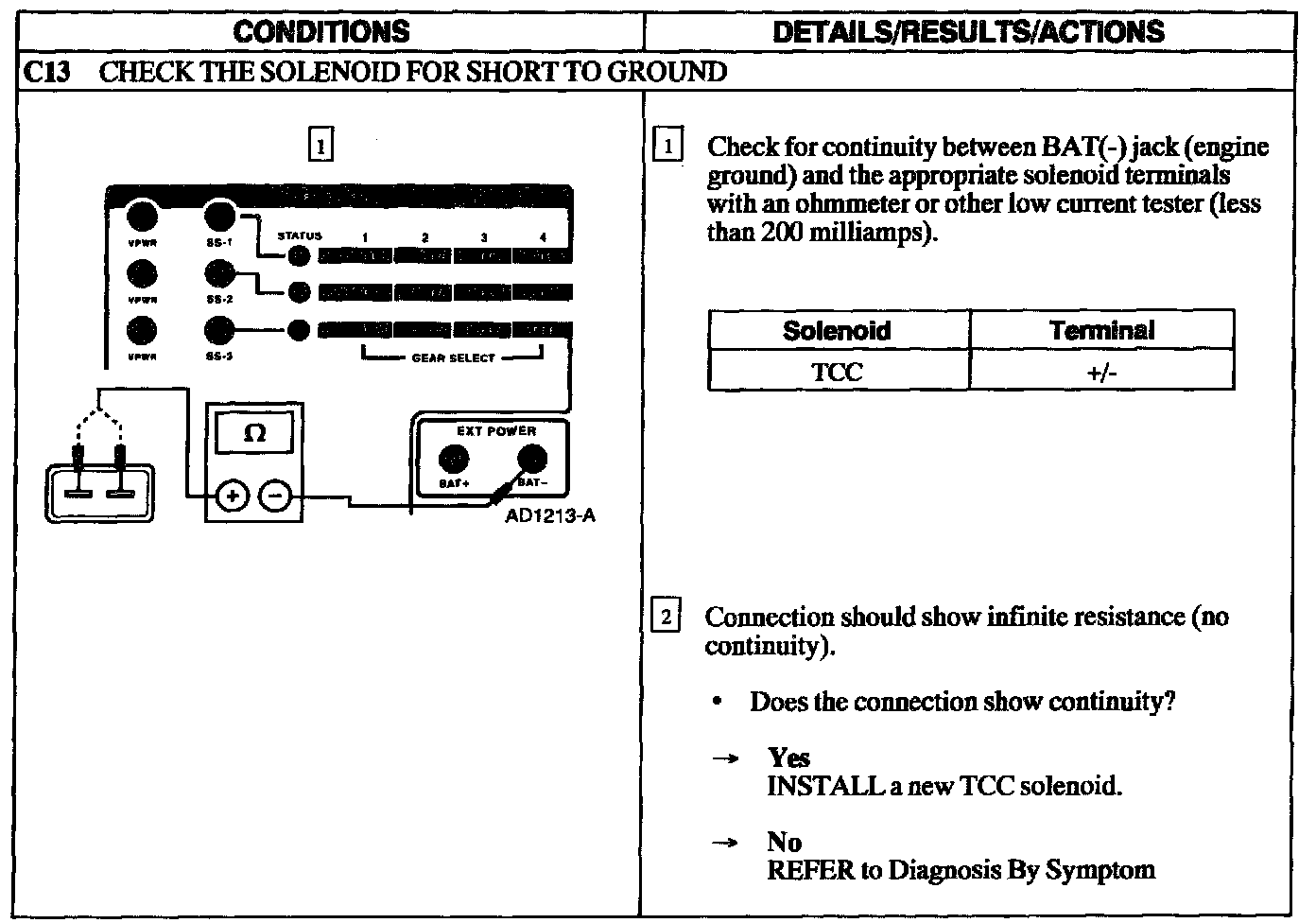

C13

NOTE: Refer to the Transaxle Vehicle Harness Connector illustration.

NOTE: Refer to the Transaxle Internal Harness Diagram illustration.
