Driven Sprocket Support

Driven Sprocket Support








Special Tool(s)

Disassembly





1. Remove the Teflon seal rings and the No. 5 thrust washer.





2. NOTE: If the driven sprocket bearing is damaged a new driven sprocket bearing should be installed.

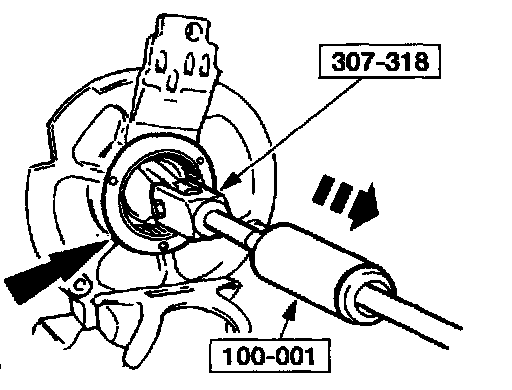

Using the special tools, remove the driven sprocket bearing.

Assembly

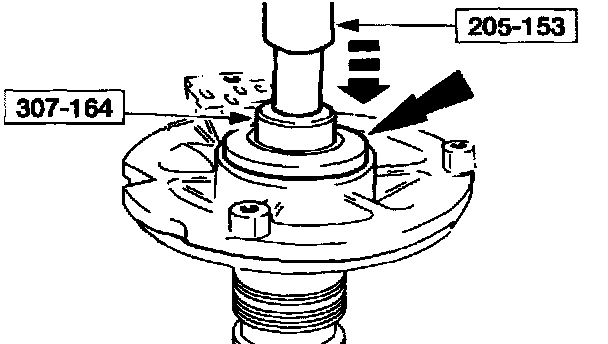

1. If removed, install a new driven sprocket bearing. Using the special tools and an arbor press install a new driven sprocket bearing.





2. CAUTION: The seal Hags must be installed correctly. Transmission failure could result.

NOTE: Make sure that the seals are mated correctly.

Install new Teflon 43 seals and the No. 5 thrust washer.
